還是那個89C52和12232的組合。但是這個12232沒有Datasheet。最后我還是靠自己的分析能力和對賣家資料那么一點點的信任（現在看來是錯誤的）搞定（？）了這個的驅動。
現在我一直找不到方法讓這個玩意顯示下半屏�，F(xiàn)在上半屏顯示什么，下半屏就跟著顯示。我暈……
不過至少靠前面兩個程序的幫助顯示出了可以辨認的字符。
不過說道這個倒讓我說一下，我的P0口上的上拉電阻貌似掛掉了，結果導致我顯示漢字老是掉筆畫，很奇怪，嘗試了用NE555/4046產生的時鐘信號驅動CLK端均未成功。結果加上上拉電阻就好了。
這個是上次的驅動http://www.zg4o1577.cn/mcu/1560.html 效果好像更好些了

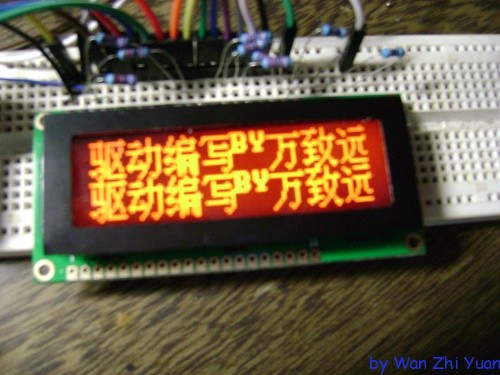

上顯示效果圖：
上程序（還是3/4成品，我得看看怎么著讓下半屏亮起來）：
完整的源代碼下載: http://www.zg4o1577.cn/f/12232de.rar
/*------
*FILE main.c
* 測試驅動12232
*/
#include <at89x52.h>
#include <type-def.h>
//#define DEBUG
#ifdef DEBUG
#include <stdio.h>
#endif
/*-----DEVICE IO Pin map.
* NMTB-S000389FGHSAY-A
* 死馬當活馬醫吧�。�！
* 時序68 series */
//仿二進制賦值
#define HEX__(n) 0x##n##UL
#define B8__(x) ( (x & 0x0000000FUL) ? 1:0 )\
+( (x & 0x000000F0UL) ? 2:0 )\
+( (x & 0x00000F00UL) ? 4:0 )\
+( (x & 0x0000F000UL) ? 8:0 )\
+( (x & 0x000F0000UL) ? 16:0 )\
+( (x & 0x00F00000UL) ? 32:0 )\
+( (x & 0x0F000000UL) ? 64:0 )\
+( (x & 0xF0000000UL) ? 128:0 )
#define B8(x) ((unsigned char)B8__(HEX__(x)))
#define B16(x_msb,x_lsb) (((unsigned int)B8(x_msb)<<8) + B8(x_lsb))
#define B32(x_msb,x_2,x_3,x_lsb) (((unsigned long)B8(x_msb)<<24) + ((unsigned long)B8(x_2)<<16) + ((unsigned long)B8(x_3)<<8) + B8(x_lsb))
#define TH 0xFE
#define TL 0x40//2K定時器值
#define LCD_RESET 0xE2 //復位
#define LCD_DISPLAY_ON 0xAF //顯示開
#define LCD_DISPLAY_OFF 0xAE //顯示關
#define LCD_PS_ON 0xA5 //節電驅動
#define LCD_PS_OFF 0xA4 //正常驅動
#define LCD_DUTY16 0xA8 //占空比1/16
#define LCD_DUTY32 0xA9 //占空比1/32
#define LCD_END 0xEE
#define LCD_RWMODE 0xE0
#define LCD_LINE0 0xC0 //開始行
#define LCD_PAGE0 0xB8 //開始頁
#define LCD_COLUMN0 0x00 //開始列
#define Both_Write_Cmd(cmd) LCD_Write(0,0,cmd);LCD_Write(1,0,cmd)
#define Both_Write_Data(dat) LCD_Write(0,1,dat);LCD_Write(1,1,dat)
#define CLK P1_3
#define RESET P1_6
#define A0 P1_0
#define E1 P1_2
#define E2 P1_1
#define LCD_RD P1_4
#define LCD_WR P1_5
#define DATA P0
//渣字庫，從16x8轉到8x8
unsigned char __code ASCII[][8]={
{0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0},
{0x0,0x0,0xE,0xFF,0xFF,0xE,0x0,0x0},
{0x0,0x3,0x7,0x0,0x0,0x7,0x3,0x0},
{0x8,0xFE,0xFE,0x8,0xFE,0xFE,0x8,0x0},
{0xE,0x9F,0x91,0x91,0x91,0xF3,0x66,0x0},
{0x8C,0xC,0x40,0x60,0x30,0x98,0x8C,0x0},
{0x60,0xF6,0x9F,0xB9,0x6F,0xF6,0x90,0x0},
{0x0,0x4,0x7,0x3,0x0,0x0,0x0,0x0},
{0x0,0x0,0x7C,0x7E,0x83,0x81,0x0,0x0},
{0x0,0x0,0x81,0x83,0x7E,0x7C,0x0,0x0},
{0x20,0x28,0x78,0x70,0x70,0x78,0x28,0x20},
{0x0,0x20,0x20,0x78,0x78,0x20,0x20,0x0},
{0x0,0x0,0x0,0x80,0x80,0x0,0x0,0x0},
{0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x0},
{0x0,0x0,0x0,0x80,0x80,0x0,0x0,0x0},
{0x80,0x0,0x40,0x60,0x30,0x18,0xC,0x0},
{0x7C,0x7E,0x83,0xB1,0x83,0x7E,0x7C,0x0},
{0x0,0x84,0x86,0xFF,0xFF,0x80,0x80,0x0},
{0x82,0xC3,0xE1,0xB1,0x99,0x8F,0x86,0x0},
{0x2,0x83,0x91,0x91,0x91,0xFF,0x6E,0x0},
{0x30,0x38,0x2C,0xA6,0xFF,0xFF,0xA0,0x0},
{0x1F,0x9F,0x91,0x91,0x91,0xF1,0x61,0x0},
{0x7C,0xFE,0x93,0x91,0x91,0xF0,0x60,0x0},
{0x3,0x3,0xC1,0xE1,0x31,0x1F,0xF,0x0},
{0x6E,0xFF,0x91,0x91,0x91,0xFF,0x6E,0x0},
{0xE,0x9F,0x91,0x91,0x91,0x7F,0x7E,0x0},
{0x0,0x0,0x0,0xC,0xC,0x0,0x0,0x0},
{0x0,0x0,0x80,0x8C,0xC,0x0,0x0,0x0},
{0x0,0x20,0x70,0x58,0xC,0x86,0x82,0x0},
{0x0,0x48,0x48,0x48,0x48,0x48,0x48,0x0},
{0x0,0x82,0x86,0xC,0x58,0x70,0x20,0x0},
{0x6,0x7,0x1,0xF1,0xF9,0xF,0x6,0x0},
{0x7C,0xFE,0x82,0xF2,0xF2,0xFE,0x7C,0x0},
{0xF8,0xFC,0x26,0x23,0x26,0xFC,0xF8,0x0},
{0x81,0xFF,0xFF,0x91,0x91,0xFF,0x6E,0x0},
{0x7C,0x7E,0x83,0x81,0x81,0x83,0x6,0x0},
{0x81,0xFF,0xFF,0x81,0x83,0x7E,0x7C,0x0},
{0x81,0xFF,0xFF,0x91,0xB9,0x83,0x87,0x0},
{0x81,0xFF,0xFF,0x91,0x39,0x3,0x7,0x0},
{0x7C,0x7E,0x83,0xA1,0xA1,0x63,0xE6,0x0},
{0xFF,0xFF,0x10,0x10,0x10,0xFF,0xFF,0x0},
{0x0,0x0,0x81,0xFF,0xFF,0x81,0x0,0x0},
{0x40,0xC0,0x80,0x81,0xFF,0x7F,0x1,0x0},
{0x81,0xFF,0xFF,0x30,0x78,0xCF,0x87,0x0},
{0x81,0xFF,0xFF,0x81,0x80,0x80,0x80,0x0},
{0xFF,0xFF,0xE,0x1C,0xE,0xFF,0xFF,0x0},
{0xFF,0xFF,0xE,0x1C,0x38,0xFF,0xFF,0x0},
{0x7E,0xFF,0x81,0x81,0x81,0xFF,0x7E,0x0},
{0x81,0xFF,0xFF,0x91,0x11,0x1F,0xE,0x0},
{0x7E,0xFF,0x81,0x81,0x81,0xFF,0x7E,0x0},
{0x81,0xFF,0xFF,0x11,0x31,0xFF,0xCE,0x0},
{0x6,0x8F,0x99,0x91,0xB1,0xE7,0x46,0x0},
{0x0,0x7,0x83,0xFF,0xFF,0x83,0x7,0x0},
{0x7F,0xFF,0x80,0x80,0x80,0xFF,0x7F,0x0},
{0x7F,0x7F,0x0,0x80,0x0,0x7F,0x7F,0x0},
{0x7F,0xFF,0x80,0x70,0x80,0xFF,0x7F,0x0},
{0x83,0xCF,0x7C,0x78,0x7C,0xCF,0x83,0x0},
{0x0,0xF,0x9F,0xF0,0xF0,0x9F,0xF,0x0},
{0x87,0xC3,0xE1,0xB1,0x99,0x8F,0x87,0x0},
{0x0,0x0,0xFF,0xFF,0x81,0x81,0x0,0x0},
{0xE,0x1C,0x38,0x70,0x60,0x40,0x80,0x0},
{0x0,0x0,0x81,0x81,0xFF,0xFF,0x0,0x0},
{0x2,0x3,0x1,0x0,0x1,0x3,0x2,0x0},
{0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0},
{0x0,0x0,0x0,0x1,0x1,0x0,0x0,0x0},
{0x40,0xE8,0xA8,0xA8,0x78,0xF0,0x80,0x0},
{0x1,0xFF,0xFF,0x88,0x98,0xF0,0x60,0x0},
{0x70,0xF8,0x88,0x88,0x88,0x98,0x10,0x0},
{0x60,0xF0,0x98,0x89,0x7F,0xFF,0x80,0x0},
{0x70,0xF8,0xA8,0xA8,0xA8,0xB8,0x30,0x0},
{0x90,0xFE,0xFF,0x91,0x3,0x6,0x0,0x0},
{0x70,0xF8,0x88,0x88,0xF0,0xF8,0x8,0x0},
{0x81,0xFF,0xFF,0x10,0x8,0xF8,0xF0,0x0},
{0x0,0x0,0x88,0xFB,0xFB,0x80,0x0,0x0},
{0x0,0x0,0x0,0x0,0x8,0xFB,0xFB,0x0},
{0x81,0xFF,0xFF,0x60,0x70,0x98,0x88,0x0},
{0x0,0x0,0x81,0xFF,0xFF,0x80,0x0,0x0},
{0xF8,0xF8,0x18,0x70,0x18,0xF8,0xF0,0x0},
{0x8,0xF8,0xF0,0x8,0x8,0xF8,0xF0,0x0},
{0x70,0xF8,0x88,0x88,0x88,0xF8,0x70,0x0},
{0x8,0xF8,0xF0,0x88,0x88,0xF8,0x70,0x0},
{0x70,0xF8,0x88,0x88,0xF0,0xF8,0x8,0x0},
{0x88,0xF8,0xF0,0x98,0x8,0x38,0x30,0x0},
{0x10,0xB8,0xE8,0xC8,0xC8,0x98,0x10,0x0},
{0x8,0x8,0x7E,0xFF,0x88,0x88,0x0,0x0},
{0x78,0xF8,0x80,0x80,0x78,0xF8,0x80,0x0},
{0x0,0x78,0x78,0x80,0x80,0x78,0x78,0x0},
{0x78,0xF8,0x80,0x60,0x80,0xF8,0x78,0x0},
{0x88,0x98,0x70,0x60,0x70,0x98,0x88,0x0},
{0x78,0xF8,0x80,0x80,0x80,0xF8,0xF8,0x0},
{0x98,0x98,0xC8,0xE8,0xB8,0x98,0x88,0x0},
{0x0,0x10,0x10,0x7E,0xEF,0x81,0x81,0x0},
{0x0,0x0,0x0,0xEF,0xEF,0x0,0x0,0x0},
{0x0,0x81,0x81,0xEF,0x7E,0x10,0x10,0x0},
{0x2,0x3,0x1,0x3,0x2,0x3,0x1,0x0}
};
/*---------------------
生成的以下字的字庫:驅動編寫萬致遠
字庫由萬致遠HZK軟件建立。使用點陣顯示模式
HZ就是您需要的漢字庫
----------------*/
unsigned char __code HZ[][32]={
/******點陣*******
0000100000000100
1111110111111110
0000100100000000
0100100101000100
0100100101000100
0100100100101000
0100100100101000
0100100100010000
0111110100010000
0000010100101000
0000010100101000
0001110101000100
1110010110000100
0100010100000000
0001010111111110
0000100000000000
*******點陣結束********/
{0x2,0xFA,0x2,0x2,0xFF,0x2,0x0,0xFE,0x2,0x1A,0x62,0x82,0x62,0x1B,0x2,0x0,0x10,0x31,0x11,0x49,0x89,0x7F,0x0,0x7F,0x50,0x48,0x46,0x41,0x46,0x58,0x40,0x0},
/******點陣*******
0000000001000000
0000100001000000
0111110001000000
0000000001000100
0000010111111110
1111111001000100
0001000001000100
0001000001000100
0010000001000100
0010010001000100
0100001010000100
1111111010000100
0100000100000100
0000000100000100
0000001000101000
0000010000010000
*******點陣結束********/
{0x20,0x24,0x24,0xE4,0x26,0x34,0x20,0x10,0x10,0xFF,0x10,0x10,0x10,0xF8,0x10,0x0,0x8,0x1C,0xB,0x8,0x8,0x8A,0x4C,0x30,0xC,0x3,0x40,0x80,0x40,0x3F,0x0,0x0},
/******點陣*******
0001000010000000
0001000001001000
0010001111111100
0010001000001000
0100101000001000
1111101111111000
0001001000000000
0010001000000100
0100001111111110
1111011010010100
0100101010010100
0000001111111100
0001101010010100
1110001010010100
0100001010010100
0000001000001100
*******點陣結束********/
{0x20,0x30,0xAC,0x63,0x30,0x0,0xFC,0x24,0x25,0x26,0x24,0x24,0x3E,0x84,0x0,0x0,0x22,0x67,0x22,0x12,0x14,0x2,0xFF,0x9,0x7F,0x9,0x9,0x7F,0x89,0xFF,0x1,0x0},
/******點陣*******
0000000000000000
0111111111111110
0100000000000010
1000100000000100
0000100000100000
0000111111110000
0000100000000000
0000100000001000
0000111111111100
0000000000001000
0000000001001000
0111111111101000
0000000000001000
0000000000001000
0000000001010000
0000000000100000
*******點陣結束********/
{0x8,0x6,0x2,0x2,0xFA,0x22,0x22,0x22,0x22,0x22,0x32,0x22,0x82,0xA,0x6,0x0,0x0,0x8,0x8,0x8,0x9,0x9,0x9,0x9,0x9,0x4D,0x89,0x41,0x3F,0x1,0x0,0x0},
/******點陣*******
0000000000000000
0000000000000100
1111111111111110
0000001000000000
0000001000000000
0000001000010000
0000001111111000
0000001000010000
0000001000010000
0000010000010000
0000010000010000
0000010000010000
0000100000010000
0001000000010000
0010000010100000
0100000001000000
*******點陣結束********/
{0x4,0x4,0x4,0x4,0x4,0x4,0xFC,0x44,0x44,0x44,0x44,0xE4,0x44,0x6,0x4,0x0,0x0,0x80,0x40,0x20,0x10,0xE,0x1,0x0,0x40,0x80,0x40,0x3F,0x0,0x0,0x0,0x0},
/******點陣*******
0000010001000000
1111111001000000
0001000001000000
0001000001000100
0010000011111110
0100010100001000
1111111010001000
0001000010001000
0001000010001000
0111110010010000
0001000001010000
0001000000100000
0001111001010000
1111000010001000
0100000100001110
0000011000000100
*******點陣結束********/
{0x42,0x62,0x52,0xCE,0x42,0x63,0x42,0x20,0xD0,0x1F,0x10,0x10,0xF0,0x18,0x10,0x0,0x20,0x62,0x22,0x3F,0x12,0x92,0x90,0x40,0x23,0x14,0x8,0x16,0x61,0xC0,0x40,0x0},
/******點陣*******
0000000000010000
0100001111111000
0011000000000000
0001000000000000
0000000000001000
0000011111111100
1111000100100000
0001000100100000
0001000100100000
0001000100100100
0001001000100100
0001001000011100
0001010000000000
0010100000000110
0100011111111100
0000000000000000
*******點陣結束********/
{0x40,0x42,0x44,0xCC,0x0,0x20,0x22,0xE2,0x22,0x22,0xE2,0x23,0x32,0x20,0x0,0x0,0x0,0x40,0x20,0x1F,0x20,0x50,0x4C,0x43,0x40,0x40,0x47,0x48,0x48,0x6E,0x20,0x0}
};
void OutCLK() __interrupt 1 __using 1//CLK out 2kHz
{
TF0=0;//CLR
TR0=0;
EA=0;
TH0=TH;TL0=TL;
CLK=!CLK;
TR0=1;
EA=1;
}
void Delay_ms(UINT x)
{
UINT y;
while(x--)
{
for(y=0;y<600;y++);
}
}
void Init_Timer()
{
TMOD=0x21;//T0計數器模式,T1八位重載模式
TH0=TH;
TL0=TL;
TR0=1;
ET0=1;
SCON = 0x50;
TH1 = 0xFF; //57600
TL1 = 0xFF;
TR1 = 1;
PCON=PCON|0x80;//波特率加倍
EA=1;
}
void putchar(char s)
{
SBUF=s;
while(!TI);
TI=0;
}
BYTE Read_Status(BOOL right)
{
BYTE tData;
DATA=0xff;
LCD_WR=1;
LCD_RD=0;
A0=0;
if(right)
{
E1=0;
}
else
{
E2=0;
}
tData=DATA;
if(right)
{
E1=1;
}
else
{
E2=1;
}
LCD_RD=1;
A0=1;
return tData;
}
void LCD_Write(BOOL right,BOOL disp,BYTE Data)
{//模擬8080
/*BYTE rTemp=0xff;
while(rTemp & 0x7F)
{
rTemp=Read_Status(right);
}*/
if(right)
{
E1=0;
}
else
{
E2=0;
}
A0=disp;//disp=1數據，disp=0顯示
DATA=Data;
LCD_RD=1;
LCD_WR=0;
__asm
NOP
NOP
NOP
NOP
__endasm;
LCD_WR=1;
if(right)
{
E1=1;
}
else
{
E2=1;
}
__asm
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
__endasm;
}
BYTE LCD_Read(BOOL right)
{//模擬8080
BYTE tData;
if(right)
{
E1=0;
}
else
{
E2=0;
}
DATA=0xFF;
LCD_WR=1;
LCD_RD=0;
tData=DATA;
LCD_RD=1;
if(right)
{
E1=1;
}
else
{
E2=1;
}
return tData;
}
void SetPage(BYTE page0,BYTE page1)
{
LCD_Write(0,0,0xB8|page1);
LCD_Write(1,0,0xB8|page0);
}
void SetAddress(BYTE address0,BYTE address1)
{
LCD_Write(0,0,address1);
LCD_Write(1,0,address0);
}
void LCD_Cls(BYTE FILL)
{
BYTE i;
BYTE page;
for (page=0;page<4;page++)
{
SetPage(page,page);
SetAddress(0,0);
for (i=0;i<61;i++)
{
Both_Write_Data(FILL);
}
}
}
void Init_LCD()
{
RESET=1;
RESET=0;//8080時序
#ifdef DEBUG
printf("Status(Chip1):0x%X\n",Read_Status(0));
printf("Status(Chip2):0x%X\n",Read_Status(1));
#endif
Both_Write_Cmd(LCD_RESET);//軟復位
#ifdef DEBUG
printf("Status(Chip1):0x%X\n",Read_Status(0));
printf("Status(Chip2):0x%X\n",Read_Status(1));
#endif
Both_Write_Cmd(LCD_PS_OFF);//正常驅動
Both_Write_Cmd(LCD_DISPLAY_ON);//開顯示
Both_Write_Cmd(LCD_DUTY16);//16%占空比
#ifdef DEBUG
printf("Status(Chip1):0x%X\n",Read_Status(0));
printf("Status(Chip2):0x%X\n",Read_Status(1));
#endif
}
/*
* CODE： A0 /RD /WR D7 D6 D5 D4 D3 D2 D1 D0
L L H BUSY ADC ON/OFF RESET LLLL
*/
void Draw8(BOOL right,BYTE Asc)
{
BYTE i;
for(i=0;i<8;i++)
{
LCD_Write(right,1,ASCII[Asc-32][i]);
}
}
void DrawASCIIStr(BOOL right,BYTE *str)
{
while(*str!='\0')
{
Draw8(right,*str);
str++;
}
}
void main()
{
BYTE i,j;
Init_Timer();//啟動定時器
#ifdef DEBUG
printf("System started.\n");
#endif
Init_LCD();
LCD_Cls(0x00);//清屏
SetPage(0,0);
SetAddress(0,0);
for(j=0;j<4;j++)
{
for(i=0;i<16;i++)
{
LCD_Write(0,1,HZ[j][i]);
}
}
SetPage(1,1);
SetAddress(0,0);
for(j=0;j<4;j++)
{
for(i=16;i<32;i++)
{
LCD_Write(0,1,HZ[j][i]);
}
}
//顯示“驅動編寫”
SetPage(0,0);
SetAddress(0,0);
DrawASCIIStr(1,"BY");
//顯示BY
for(j=4;j<7;j++)
{
for(i=0;i<16;i++)
{
LCD_Write(1,1,HZ[j][i]);
}
}
SetPage(1,1);
SetAddress(16,16);
for(j=4;j<7;j++)
{
for(i=16;i<32;i++)
{
LCD_Write(1,1,HZ[j][i]);
}
}
//顯示“萬致遠”
while(1)
{
//LCD_Cls(0xff);
//Delay_ms(100);
//LCD_Cls(0xAA);
//Delay_ms(100);
//LCD_Cls(0x55);
//Delay_ms(100);
}
}
