不帶字庫的128*64液晶漢字顯示程序

作者:佚名   來源:本站原創   點擊數:…  更新時間：2011年03月06日   【字體：大 中 小】

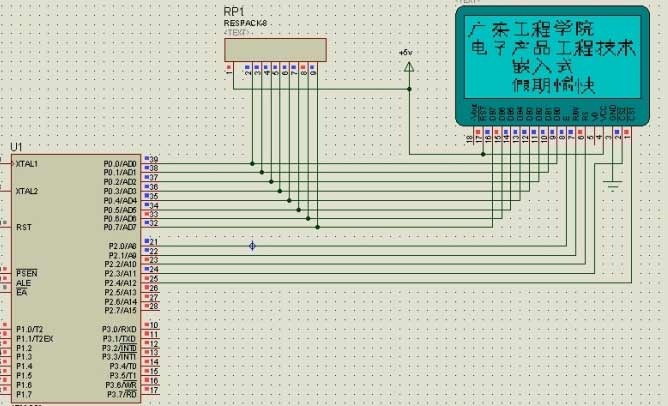

下面是線路連接圖，我自己已經搞了整整一個測試成功了絕對可用


由于篇幅有限完整的c51代碼下載 ：http://www.zg4o1577.cn/f/12864wu.rar

源代碼：

#include<reg52.h>
#define LCD P0
unsigned char i,j,k;

sbit EN=P2^0;
sbit RW=P2^1;
sbit RS=P2^2;
sbit CS1=P2^3;
sbit CS2=P2^4;
sbit BUSY=P0^0;
void delay(unsigned char a);



unsigned char code ban[16][16]={
{0x00,0x00,0x00,0xf0,0x90,0x90,0x90,0xfe,0x90,0x90,0x90,0xf0,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x07,0x04,0x04,0x04,0x3f,0x24,0x24,0x24,0x27,0x20,0x38,0x00,0x00},//電

{0x00,0x00,0x00,0x00,0x8c,0x88,0x88,0x88,0x88,0xc8,0xa8,0x98,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x21,0x7f,0x00,0x00,0x00,0x00,0x00,0x00,0x00},//子

{0x00,0x00,0x00,0x00,0x10,0x10,0x30,0x54,0x9c,0x90,0x50,0x00,0x30,0x10,0x00,0x00},
{0x00,0x40,0x30,0x0c,0x03,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x00,0x00,0x00},//產

{0x00,0x00,0x00,0x00,0x7c,0x44,0x44,0x44,0x44,0x44,0x44,0x7c,0x00,0x00,0x00,0x00},
{0x00,0x00,0x3f,0x21,0x21,0x21,0x3f,0x00,0x00,0x3f,0x21,0x21,0x21,0x3f,0x00,0x00},//品

{0x00,0x00,0x00,0x00,0x0c,0x08,0x08,0x08,0xf8,0x08,0x08,0x08,0x08,0x00,0x00,0x00},
{0x00,0x00,0x00,0x20,0x20,0x20,0x20,0x20,0x3f,0x20,0x20,0x20,0x20,0x30,0x00,0x00},//工

{0x00,0x90,0x90,0x88,0xf8,0x84,0x86,0x00,0x7c,0x44,0x44,0x44,0x44,0x7c,0x00,0x00},
{0x40,0x30,0x0c,0x02,0x7f,0x02,0x0c,0x10,0x49,0x49,0x49,0x7f,0x49,0x49,0x00,0x00},//程

{0x00,0x10,0x10,0x10,0xfc,0x90,0x10,0x00,0xd0,0x50,0x50,0x7e,0x50,0xd0,0x50,0x00},
{0x04,0x08,0x04,0x22,0x7f,0x00,0x40,0x20,0x10,0x09,0x06,0x06,0x09,0x10,0x20,0x40},//技

{0x00,0x00,0x10,0x10,0x10,0xd0,0x10,0xfe,0x10,0x50,0x94,0x1c,0x10,0x00,0x00,0x00},
{0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x7f,0x00,0x00,0x00,0x03,0x04,0x18,0x60,0x00},//術
};

unsigned char code qrs[6][16]={
{0x00,0x00,0xbc,0xe0,0xa0,0xa0,0xe0,0xa0,0x3f,0xa0,0x60,0x20,0x20,0x3c,0x00,0x00},
{0x00,0x00,0x00,0x3f,0x24,0x24,0x3f,0x22,0x11,0x09,0x05,0x07,0x09,0x13,0x20,0x00},//嵌

{0x00,0x00,0x00,0x00,0x02,0x04,0xc8,0x30,0x20,0x40,0x80,0x00,0x00,0x00,0x00,0x00},
{0x00,0x40,0x20,0x18,0x06,0x01,0x00,0x00,0x00,0x00,0x00,0x03,0x06,0x0c,0x30,0x00},//入

--{0x00,0x00,0x00,0x20,0xa0,0xa0,0xa0,0xa0,0xa2,0xa4,0x38,0xe0,0x24,0x2c,0x00,0x00},
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x0f,0x09,0x04,0x04,0x00,0x07,0x18,0x20,0x00},//式


};


checkbusy()
{ EN=1;
  RW=1;
  RS=0;
  LCD=0XFF;
  if(BUSY);
}

writecode(unsigned char dat)  //寫命令
{ checkbusy();
  EN=1;
  RW=0;
  RS=0;
  LCD=dat;
  EN=1;
  EN=0;
}
writedata(unsigned char dat)  //寫數據
{ checkbusy();
  EN=1;
  RW=0;
  RS=1;
  LCD=dat;
  EN=1;
  EN=0;
}

void displayhanzi(unsigned char page,unsigned char lineaddress,int n,  unsigned char table[][16])
{
 unsigned char  temp[32];
   if(lineaddress<0X80)
  {CS1=1;
  CS2=0;}//left
 for(j=0;j<n;j++)
    {
     if(lineaddress>=0X80)
     {
     CS1=0;//right
       CS2=1;
      lineaddress=lineaddress-0X40;
     }
 ////////////////////////////////////////
   for(k=0;k<16;k++)
       {temp[k]=table[j][k];}
   j+=1;
   for(k=0;k<16;k++)
   {temp[16+k]=table[j][k];}     //一個字：占兩個字符，32個數據（temp[32])
///////////////////////////////////////
        writecode(page);
        writecode(lineaddress);
       for(i=0;i<16;i++)
         { writedata(temp[i]);}

       writecode(page+1);
       writecode(lineaddress);
       for(i=16;i<32;i++)
        { writedata(temp[i]);}   //寫一個字：每頁16個數據
////////////////////////////////////////////////
  lineaddress+=16;


  delay(200);


    }

}

void clear()
{
     unsigned char b=0x40,c,d;
   for(c=0;c<4;c++)
    {
     for(a=0;a<8;a++)
       {
         switch(c)
          {
             case 0:d=0xb8;break;
             case 1:d=0xba;break;
             case 2:d=0xbc;break;
             default:d=0xbe;
          }
         displayhanzi(d,b,2,&lin);
         b+=0x10;
       }
     b=0x40;
    }
}
void lcdinti()
{     writecode(0X3f);//顯示開關關
    writecode(0XC0);//修改顯示起始行
    writecode(0XB8);//修改頁地址，x地址
    writecode(0X40);//修改列地址，y地址

}
void delay(unsigned char a)
 {
 unsigned char i,j;
 for(i=0;i<a;i++)
  for(j=0;j<200;j++)
   ;
 }

main()
{
  lcdinti();
  clear();

 while(1)
 {

displayhanzi(0XB8,0X40,12,&xx);
displayhanzi(0XBa,0X40,16,&ban);
displayhanzi(0XBc,0X60,6,&zjy);
displayhanzi(0XBe,0X60,6,&qrs);
delay(200);
clear();

displayhanzi(0XB8,0X40,12,&xx);
displayhanzi(0XBa,0X40,16,&ban);
displayhanzi(0XBc,0X60,4,&sg);
displayhanzi(0XBe,0X60,6,&qrs);
delay(200);
clear();

displayhanzi(0XB8,0X40,12,&xx);
displayhanzi(0XBa,0X40,16,&ban);
displayhanzi(0XBc,0X60,6,&qrs);
displayhanzi(0XBe,0X60,8,&jqyk);

        delay(200);
  delay(200);
  delay(200);
  delay(200);
  delay(200);
     delay(200);
  delay(200);
  delay(200);
        clear();

}
}

 匯編源代碼：
完整代碼下載：http://www.zg4o1577.cn/f/12864wuasm.rar

ORG 0100H

EN  BIT  0A0H       ;sbit EN=P2^0;
RW  BIT  0A1H       ;sbit RW=P2^1;
RS  BIT  0A2H       ;sbit RS=P2^2;
CS1 BIT  0A3H       ;sbit CS1=P2^3;
CS2 BIT  0A4H
BUS BIT 80H

START:
      CLR   CS1
      CLR   CS2
      CALL  INIT
      CALL  CLEAR
      CALL  HANZI
      SJMP  $



WRITEDATA:        ;入口參數R1
      PUSH  PSW
      PUSH  ACC

      SETB EN
      CLR  RW
      SETB RS
NOP
      MOV  P0,R1
NOP
      SETB EN
NOP
NOP
      CLR  EN
      POP   ACC
      POP   PSW
      RET

WRITECODE:       ;入口參數R2
      PUSH  PSW
      PUSH  ACC

      SETB  EN
      CLR   RW
      CLR   RS
NOP
      MOV   P0,R2
NOP
      SETB  EN
NOP
NOP
      CLR   EN
      POP   ACC
      POP   PSW
      RET

DELAY:            ;入口參數R2
      PUSH  PSW
      PUSH  ACC
      MOV   R1,0FFH
A2:   DEC   R2
A1:   DEC   R1
      DJNZ  R1,A1
      DJNZ  R2,A2
      POP   ACC
      POP   PSW
      RET


INIT:
      PUSH  PSW
      PUSH  ACC
      MOV   R2,0C0H
      CALL  WRITECODE

      MOV   R2,3FH
      CALL  WRITECODE

      MOV   R2,0BBH
      CALL  WRITECODE

      MOV   R2,50H
      CALL  WRITECODE
      POP   ACC
      POP   PSW
      RET

CLEAR:
      PUSH  PSW
      PUSH  ACC
      CLR   CS1
      CLR   CS2
      MOV   R2,0B8H
B2:
      MOV   31H,R2
      PUSH  31H
      CALL  WRITECODE

      MOV   R2,40H
      CALL  WRITECODE
B1:   MOV   R1,#00H
      CALL  WRITEDATA
      INC   R2
      CJNE  R2,#80H,B1

      POP   31H
      INC   31H
      MOV   R2,31H
      CJNE  R2,#0BEH,B2

      POP   ACC
      POP   PSW
      RET

HANZI:
      PUSH  PSW
      PUSH  ACC
      CALL  INIT
      ANL   A,#00H
      MOV   DPTR,#DAT
B3:
      MOVC  A,@A+DPTR
      MOV   R1,A
      CALL  WRITEDATA
      INC   R2
      INC   A
      CJNE  R2,#50H,B3

      MOV   R2,0B9H
      CALL  WRITECODE
      MOV   R2,40H
      CALL  WRITECODE
B4:
      MOVC  A,@A+DPTR
      MOV   R1,A
      CALL  WRITEDATA
      INC   R2
      INC   A
      CJNE  R2,#50H,B4

      POP   ACC
      POP   PSW
      RET

DAT:
     DB  0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01
     DB  0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01,0x01
END
