發個16X16點陣+原理圖+源程序

[復制鏈接]
ID:51142 發表于 2017-4-21 21:52 | 顯示全部樓層 |閱讀模式
16X16點陣動態顯示32個字，文字內容可以增加，修改，可以用論壇里面的字模提取軟件，修改其他文字，顯示效果：卷簾出，卷簾入，上滾屏，左跑馬。大家一起學習，進步！

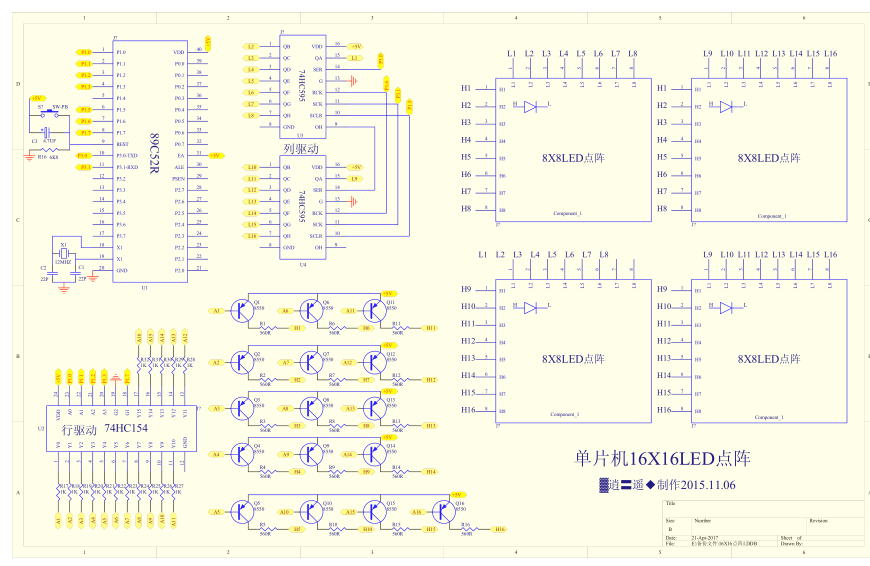

原理圖：

單片機源程序：
  1. /*--------------------------------------
  2. 16×16點陣LED顯示屏程序
  3. MCU AT89C51  XAL 24MHz        12MHZ/晶振頻率不同、刷新率也不同、供參考。

  5. --------------------------------------*/
  6. #include <reg51.h>
  7. #define BLKN 2       //列鎖存器數
  8. sbit G = 0x97;       //P1.7為顯示允許控制信號端口
  9. sbit RCLK = 0x96;    //P1.6為輸出鎖存器時鐘信號端
  10. sbit SCLR = 0x95;    //P1.5為移位寄存器清○端
  11. void delay(unsigned int);       //延時函數
  12. unsigned char data dispram[32]; //顯示緩存
  13. /*--------------------------------------
  14.   主函數 void main(void)
  15. --------------------------------------*/
  16. void main(void)
  17. {
  18. unsigned char code Bmp[][32]={//字模表
  19. {0xFF,0xFF,0x80,0x01,0xFD,0xFF,0xFD,0xFF,0xFD,0xEF,0xFC,0x07,0xFD,0xEF,0xFB,0xEF,
  20. 0xFB,0xEF,0xFB,0xEF,0xF7,0xEF,0xF7,0xEF,0xEF,0xEF,0xDF,0x1F,0xBF,0xBF,0xFF,0xFF},/*"W",0*/

  22. {0xFF,0xBF,0x07,0xAF,0xF7,0x77,0xB6,0x03,0xB7,0xFB,0xB7,0x77,0xB6,0xFB,0x83,0x7F,
  23. 0xFB,0x03,0xEA,0x77,0xD9,0xAF,0x3B,0xDF,0xFB,0xAF,0xD6,0x71,0xE9,0xFB,0xFF,0xFF},/*"J",1*/

  25. {0xFE,0xFF,0xFE,0xFF,0xFE,0xFF,0xC0,0x07,0xDE,0xF7,0xDE,0xF7,0xC0,0x07,0xDE,0xF7,
  26. 0xDE,0xF7,0xDE,0xF7,0xC0,0x07,0xDE,0xF7,0xFE,0xFD,0xFE,0xFD,0xFF,0x01,0xFF,0xFF},/*"?",2*/

  28. {0xFF,0xFF,0xC0,0x0F,0xFF,0xDF,0xFF,0xBF,0xFF,0x7F,0xFE,0xFF,0xFE,0xFF,0xFE,0xFB,
  29. 0x00,0x01,0xFE,0xFF,0xFE,0xFF,0xFE,0xFF,0xFE,0xFF,0xFE,0xFF,0xFA,0xFF,0xFD,0xFF},/*"?",3*/

  31. {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
  32. 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xFF,0xCF,0xFF,0xEF,0xFF,0xDF,0xFF,0xFF,0xFF},/*"，",4*/

  34. {0xEF,0xBF,0xEB,0xAF,0xDD,0x87,0x80,0xBB,0xBE,0xBB,0xC1,0xC3,0xDD,0xFF,0xC1,0xB3,
  35. 0xDD,0x8F,0xC1,0xBB,0xDD,0xBB,0xD9,0xC3,0xD7,0x77,0xDB,0xBB,0xBB,0xBF,0xFF,0xFF},/*"?",5*/

  37. {0xDF,0xBF,0xEF,0xBF,0xEF,0xBF,0xF8,0x01,0x7B,0xBB,0xAB,0xBF,0xAB,0xBF,0xE8,0x07,
  38. 0xDA,0xF7,0xDB,0x6F,0x1B,0x6F,0xDB,0x9F,0xD7,0x9F,0xD7,0x68,0xCE,0xF1,0xD9,0xFB},/*"?",6*/

  40. {0xDB,0xFB,0xCB,0xFB,0xDB,0xDB,0xC0,0x5B,0xBB,0xDB,0xFB,0xDB,0x80,0x5B,0xFB,0xDB,
  41. 0xC0,0x5B,0xDB,0x5B,0xDB,0x5B,0xDB,0x5B,0xDB,0x7B,0xD8,0x7B,0xFA,0xEB,0xFB,0xF7},/*"制",7*/

  43. {0xF7,0x7F,0xF3,0x7F,0xF6,0xFF,0xEC,0x01,0xED,0x7F,0xCB,0x77,0xAF,0x03,0x6F,0x7F,
  44. 0xEF,0x7F,0xEF,0x7B,0xEF,0x01,0xEF,0x7F,0xEF,0x7F,0xEF,0x7F,0xEF,0x7F,0xEF,0x7F},/*"作",8*/

  46. {0xFF,0xFF,0xFF,0xFF,0xFE,0x7F,0xF8,0x0F,0xE6,0x47,0xE6,0x47,0xE0,0x7F,0xF0,0x7F,
  47. 0xFC,0x1F,0xFE,0x07,0xE6,0x67,0xC2,0x63,0xE6,0x67,0xF0,0x1F,0xFE,0x7F,0xFF,0x7F},/*"，",9*/

  49. {0xFF,0x7F,0xFF,0x7F,0x03,0x7F,0xFA,0x01,0x7A,0xFB,0xB5,0xB7,0xD7,0xBF,0xEF,0xBF,
  50. 0xE7,0xBF,0xE7,0x9F,0xDB,0x5F,0xDB,0x6F,0xBE,0xE7,0x79,0xF1,0xC7,0xFB,0xFF,0xFF},/*"歡",10*/

  52. {0xBF,0xFF,0xDE,0x7F,0xC9,0x83,0xDB,0xBB,0xFB,0xBB,0xFB,0xBB,0x1B,0xBB,0xDB,0xBB,
  53. 0xDA,0xBB,0xD9,0xAB,0xDB,0xB7,0xDF,0xBF,0xDF,0xBF,0xAF,0xFF,0x70,0x01,0xFF,0xFF},/*"迎",11*/

  55. {0xFF,0xFF,0xFE,0x03,0x82,0xFB,0xFA,0xDB,0xBA,0xDB,0xBA,0xDB,0xD6,0xDB,0xEE,0xDB,
  56. 0xD6,0xDB,0xDA,0xAB,0xB9,0xAF,0xBB,0x6F,0x7F,0x6D,0xFE,0xED,0xFD,0xF1,0xFB,0xFF},/*"觀",12*/

  58. {0xFF,0x07,0xC0,0xFF,0xFE,0xFF,0xC0,0x07,0xFD,0xFF,0x00,0x01,0xFB,0xFF,0xF0,0x0F,
  59. 0xE7,0xEF,0x90,0x0F,0x77,0xEF,0xF0,0x0F,0xF7,0xEF,0xF7,0xEF,0xF0,0x0F,0xF7,0xEF},/*"看",13*/

  61. {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x0F,0xEF,0xF7,0xD9,0x9B,0xB9,0x9D,0xBF,0xFD,
  62. 0xBF,0xFD,0xBE,0x7D,0xBC,0x3D,0xDE,0x7B,0xEF,0xF7,0xF0,0x0F,0xFF,0xFF,0xFF,0xFF},/*"，",14*/

  64. {0xFE,0xF7,0xBD,0xF7,0xC8,0x77,0xDB,0x77,0xF8,0x01,0xFB,0x77,0x18,0x37,0xDB,0x57,
  65. 0xD0,0x57,0xDE,0x77,0xDD,0x77,0xD5,0x77,0xCB,0x77,0xD7,0x77,0xED,0x57,0xFE,0xEF},/*"謝",15*/

  67. {0xFE,0xF7,0xBD,0xF7,0xC8,0x77,0xDB,0x77,0xF8,0x01,0xFB,0x77,0x18,0x37,0xDB,0x57,
  68. 0xD0,0x57,0xDE,0x77,0xDD,0x77,0xD5,0x77,0xCB,0x77,0xD7,0x77,0xED,0x57,0xFE,0xEF},/*"謝",16*/

  70. {0xFF,0xFF,0xFF,0xFF,0xFE,0xFF,0xFC,0x3F,0xFC,0x3F,0xFC,0x7F,0xFE,0x7F,0xFE,0x7F,
  71. 0xFE,0x7F,0xFE,0x7F,0xFF,0xFF,0xFF,0xFF,0xFC,0x3F,0xFC,0x3F,0xFF,0xFF,0xFF,0xFF},/*"！",17*/

  73. {0xFE,0xFF,0xFE,0xFF,0xFD,0x7F,0xFD,0x7F,0xFD,0x7F,0xFB,0xBF,0x03,0x81,0xBF,0xFB,
  74. 0xCF,0xE7,0xF7,0xDF,0xF7,0xDF,0xEE,0x6F,0xE9,0xAF,0xE7,0xCF,0xDF,0xF7,0xFF,0xFF},/*"☆",18*/

  76. {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x0F,0xE7,0xE7,0xC7,0xF3,0x8F,0xF1,0x8F,0xF1,
  77. 0x8F,0xF1,0x8F,0xF1,0x8C,0x71,0xC0,0x33,0xE3,0x87,0xF0,0x0F,0xFF,0xC3,0xFF,0xF7},  /*Q*/

  79.   {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x0F,0xE7,0xE7,0xC7,0xF3,0x8F,0xF1,0x8F,0xF1,
  80.   0x8F,0xF1,0x8F,0xF1,0x8C,0x71,0xC0,0x33,0xE3,0x87,0xF0,0x0F,0xFF,0xC3,0xFF,0xF7} , /*Q*/

  82.    {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xFF,0x0F,0xFE,0x0F,0xFD,0x8F,0xF3,0x8F,
  83.   0xE7,0x8F,0xCF,0x8F,0xC0,0x01,0xFF,0x8F,0xFF,0x8F,0xFC,0x01,0xFF,0xFF,0xFF,0xFF}, /*4*/

  85.   {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x0F,0xE7,0xE7,0xC7,0xE3,0xC7,0xE3,0xFF,0xC7,
  86.    0xFF,0x8F,0xFE,0x3F,0xF8,0xFF,0xF3,0xFB,0xC0,0x03,0xC0,0x03,0xFF,0xFF,0xFF,0xFF},/*2*/

  88.    {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x0F,0xE3,0xC7,0xC7,0xE3,0xC7,0xE3,0x87,0xE1,
  89.     0x87,0xE1,0xC7,0xE3,0xC7,0xE3,0xC7,0xE3,0xE3,0xC7,0xF8,0x1F,0xFF,0xFF,0xFF,0xFF},/*0*/

  91.   {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x0F,0xC7,0xE7,0xCF,0xE3,0x8F,0xE3,0x8F,0xE3,
  92.    0xC7,0xC3,0xE0,0x23,0xFF,0xE3,0xE7,0xC7,0xC3,0x8F,0xE0,0x1F,0xFF,0xFF,0xFF,0xFF}, /*9*/

  94.    {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x01,0xC7,0xF3,0xCF,0xEF,0xFF,0xCF,0xFF,0x9F,
  95.     0xFF,0x3F,0xFE,0x7F,0xFC,0x7F,0xFC,0x7F,0xFC,0x7F,0xFC,0x7F,0xFF,0xFF,0xFF,0xFF},/*7*/

  97.         {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x0F,0xE7,0xE7,0xC7,0xE3,0xC7,0xE3,0xFF,0xC7,
  98.      0xFF,0x8F,0xFE,0x3F,0xF8,0xFF,0xF3,0xFB,0xC0,0x03,0xC0,0x03,0xFF,0xFF,0xFF,0xFF},  /*？*/

  100.         {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x03,0xE7,0xFF,0xE7,0xFF,0xE7,0x3F,0xE0,0x07,
  101.      0xE7,0xE3,0xFF,0xE3,0xEF,0xE3,0xC7,0xE3,0xC7,0xE7,0xF0,0x0F,0xFF,0xFF,0xFF,0xFF},/*8*/

  103.          {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0xFE,0x0F,0xFD,0x8F,0xF3,0x8F,
  104.       0xE7,0x8F,0xCF,0x8F,0xC0,0x01,0xFF,0x8F,0xFF,0x8F,0xFC,0x01,0xFF,0xFF,0xFF,0xFF}, /*？*/

  106.          {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x03,0xE7,0xFF,0xE7,0xFF,0xE7,0x3F,0xE0,0x07,
  107.       0xE7,0xE3,0xFF,0xE3,0xEF,0xE3,0xC7,0xE3,0xC7,0xE7,0xF0,0x0F,0xFF,0xFF,0xFF,0xFF},  /*5*/

  109.            {0xFF,0xFF,0xFF,0xFF,0xF0,0x0F,0xEF,0xF7,0xDF,0xFB,0xBF,0xFD,0x63,0xC6,0x63,0xC6,
  110.         0x7F,0xFE,0x7E,0x7E,0x7E,0x7E,0x7B,0xDE,0xBC,0x3D,0xDF,0xFB,0xE0,0x07,0xFF,0xFF}


  113. …………限于本文篇幅 余下代碼請從51黑下載附件…………
復制代碼

下載：
16X16點陣 原理圖.zip (120.72 KB, 下載次數: 31)

評分

參與人數 1黑幣 +50 收起 理由
admin + 50 共享資料的黑幣獎勵！

查看全部評分
