PM2.5檢測儀設計硬件設計原理圖及源代碼

ID:33727 · 發表于 2016-5-20 21:15

PM2.5檢測儀設計硬件設計原理圖如下，整個項目基于瑞薩單片機

pcb圖也有

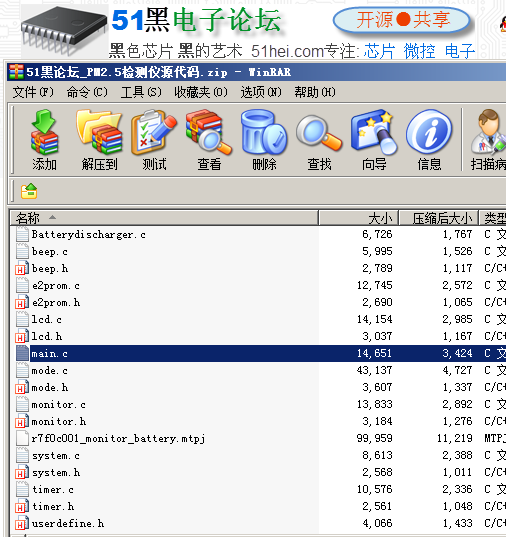

下面是PM2.5檢測儀設計源代碼：

全部制作資料下載：

PM2.5檢測儀源代碼.zip (136.12 KB, 下載次數: 97)

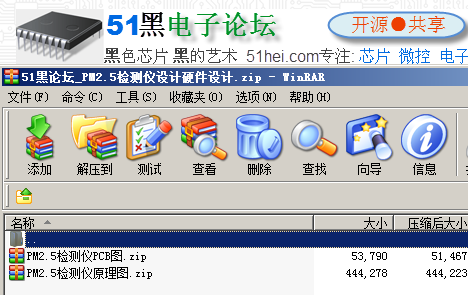

PM2.5檢測儀設計硬件設計.zip (484.55 KB, 下載次數: 110)

部分源碼預覽（完整代碼請下載附件）：

/*******************************************************************************
* DISCLAIMER
* This software is supplied by Renesas Electronics Corporation and is only
* intended for use with Renesas products. No other uses are authorized. This
* software is owned by Renesas Electronics Corporation and is protected under
* all applicable laws, including copyright laws.
* THIS SOFTWARE IS PROVIDED "AS IS" AND RENESAS MAKES NO WARRANTIES REGARDING
* THIS SOFTWARE, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT
* LIMITED TO WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
* AND NON-INFRINGEMENT. ALL SUCH WARRANTIES ARE EXPRESSLY DISCLAIMED.
* TO THE MAXIMUM EXTENT PERMITTED NOT PROHIBITED BY LAW, NEITHER RENESAS
* ELECTRONICS CORPORATION NOR ANY OF ITS AFFILIATED COMPANIES SHALL BE LIABLE
* FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
* ANY REASON RELATED TO THIS SOFTWARE, EVEN IF RENESAS OR ITS AFFILIATES HAVE
* BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
* Renesas reserves the right, without notice, to make changes to this software
* and to discontinue the availability of this software. By using this software,
* you agree to the additional terms and conditions found by accessing the
* following link:
* http://www.renesas.com/disclaimer
*
* Copyright (C) 2015 Renesas Electronics Corporation. All rights reserved.
*******************************************************************************/
/*******************************************************************************
* File Name : main.c
* Version : 1.0
* Device(s) : R7F0C001
* H/W Platform : YCB15R7F0C001001B
* Description : This file implements main function.
******************************************************************************/
/******************************************************************************
* History : DD.MM.YYYY Version Description
* : 20.09.2015 1.00 First Release
******************************************************************************/
/******************************************************************************
Includes <System Includes> , <Project Includes>
******************************************************************************/
#include "userdefine.h"
#include "system.h"
#include "adc.h"
#include "timer.h"
#include "lcd.h"
#include "e2prom.h"
#include "beep.h"
#include "battery.h"
#include "monitor.h"
/******************************************************************************
Exported global variables and functions(can be accessed by other files)
******************************************************************************/
uint8_t g_fSwitchMonitorOnReq; /* Switch position (PM2.5 Monitor side = 1)*/
uint8_t g_MainMode; /* Main mode */
uint8_t g_OutLowPowerModeCounter; /* Exit low power mode counter */
uint16_t g_ModeTimeOutCounter; /* Mode time out counter */
uint8_t g_FnKeyCounter; /* [Fn] key pressed counter */
uint8_t g_BellKeyCounter; /* [Bell] key pressed counter */
uint8_t g_fFnReleaseReq; /* [Fn] key release request flag */
uint8_t g_fBellReleaseReq; /* [Bell] key release request flag */
uint8_t g_fSleepModeOn; /* Halt mode indicatior */
uint8_t g_fLowPowerSleepOn; /* Halt mode indicatior in low power mode */
extern uint8_t g_fSensorComputeReq;
extern uint8_t g_aDataBuffer[];
extern uint16_t g_DustDensityValue;
extern uint16_t g_DustDensityMinValue;
extern uint16_t g_BatterVoltage;
extern uint8_t g_fChargeConnected;
extern uint8_t g_fNewDataDispRq;
extern uint16_t g_fSensorUpdateCounter;
extern uint8_t g_fCheckAlarmDataReq;
extern uint8_t g_fAlarmOnFlashOn;
extern uint8_t g_fAlarmDataSetFlashOn；
extern uint16_t g_fDispFlashCounter;
extern uint8_t g_DustAlarmDataSetStep;
extern uint16_t g_aSupplyVoltageBuf[];
extern uint8_t g_SupplyVoltageSampleCounter;
extern _DUST_ALARM_DATA g_sDustAlarmData;
extern _DUST_ALARM_DATA g_sDustAlarmTempData;
void main(void);
static void Mode_Process(void);
static void Initial_Process(void);
/******************************************************************************
* Function Name : main
* Description : This function implements main function.
* Arguments : none
* Return Value : none
******************************************************************************/
void main(void)
{
System_Init();
Initial_Process();
while(1)
{
Check_Charge_Status();
Mode_Process();
Battery_Process();
Sensor_Process();
Beep_Process();
Display_Process();
/* main loop period:T=100ms(TAU03)*/
while(TMIF03 != 1); /* Wait the TAU03 interrupt flag set to 1*/
TMIF03 = 0; /* TAU03 interrupt flag clear*/
}
}
/******************************************************************************
End of function main
******************************************************************************/
/******************************************************************************
* Function Name : Mode_Process
* Description : This function implements mode process.
* Arguments : none
* Return Value : none
******************************************************************************/
static void Mode_Process(void)
{
/* Mode process */
switch(g_MainMode)
{
case INITIAL_MODE:
if(g_ModeTimeOutCounter>0)
{
g_ModeTimeOutCounter--;
}
else
{
g_fSwitchMonitorOnReq = P13.7;
if(1U == g_fSwitchMonitorOnReq)
{
if(1U == P13.7)
{
GoTo_NormalMode();
}
}
else
{
if(0U == P13.7)
{
GoTo_BatteryMode();
}
}
}
break;
case BATTERY_MODE:
if(0U == g_fChargeConnected)
{
if(g_ModeTimeOutCounter>0)
{
g_ModeTimeOutCounter--;
}
else
{
g_fSleepModeOn = ON;
LCD_Stop();
HALT();
}
if(0U == FUNCTION_KEY)
{
NOP();
NOP();
if(0U == FUNCTION_KEY)
{
g_ModeTimeOutCounter = BATTERY_DISP_TIMEOUT_TIME;
}
}
if(0U == BELL_KEY)
{
NOP();
NOP();
if(0U == BELL_KEY)
{
g_ModeTimeOutCounter = BATTERY_DISP_TIMEOUT_TIME;
}
}
if(1U == g_fSleepModeOn)
{
g_fSleepModeOn = 0U;
LCD_Start();
g_fNewDataDispRq = ON;
}
}
break;
case NORMAL_MODE:
/*Fn key process */
if(1U == g_fFnReleaseReq) /* Make sure the key is released when enter into the normal mode*/
{
g_fFnReleaseReq = !FUNCTION_KEY;
}
else
{
if(0U == FUNCTION_KEY)
{
g_FnKeyCounter++;
if(g_FnKeyCounter>=10) /* Fn key has been pressed for 1000ms*/
{
g_fFnReleaseReq = ON;
g_FnKeyCounter = 0;
g_BellKeyCounter = 0;
Beep_Times_Set(1);
GoTo_AlarmSettingMode();
}
}
else
{
g_FnKeyCounter = 0;
}
}
/*Bell key process */
if(1U == g_fBellReleaseReq)
{
g_fBellReleaseReq = !BELL_KEY;
}
else
{
if(0U == BELL_KEY)
{
g_BellKeyCounter++;
if(g_BellKeyCounter>=2) /* Bell key has been pressed for 200ms*/
{
g_fBellReleaseReq = ON;
g_BellKeyCounter = 0;
g_FnKeyCounter = 0;
GoTo_AlarmStandbyMode();
}
}
else
{
g_BellKeyCounter = 0;
}
}
break;
case ALARM_STANDBY_MODE:
/*Bell key process */
if(1U == g_fBellReleaseReq)
{
g_fBellReleaseReq = !BELL_KEY;
}
else
{
if(0U == BELL_KEY)
{
g_BellKeyCounter++;
if(g_BellKeyCounter>=2) /*Bell key has been pressed for 200ms*/
{
g_fBellReleaseReq = ON;
g_BellKeyCounter = 0;
GoTo_NormalMode();
}
}
else
{
g_BellKeyCounter = 0;
}
}
/* Check alarm start or not */
if(1U == g_fCheckAlarmDataReq)
{
g_fCheckAlarmDataReq = 0;
Check_Alarm_Data();
}
break;
case ALARM_SETTING_MODE:
/* Setting time out period control */
if(g_ModeTimeOutCounter>0)
{
g_ModeTimeOutCounter--;
}
else
{
/* Setting time out */
g_BellKeyCounter = 0;
g_FnKeyCounter = 0;
g_DustAlarmDataSetStep = 0;
GoTo_NormalMode();
}
/*Fn key process */
if(1U == g_fFnReleaseReq)
{
g_fFnReleaseReq = !FUNCTION_KEY;
}
else
{
if(0U == FUNCTION_KEY)
{
g_FnKeyCounter++;
if(g_FnKeyCounter>=2) /* Fn key has been pressed for 200ms*/
{
g_fFnReleaseReq = ON;
g_FnKeyCounter = 0;
/* Setting step control */
g_DustAlarmDataSetStep++;
if(g_DustAlarmDataSetStep<3)
{
Beep_Times_Set(1);
g_ModeTimeOutCounter = ALARM_SETTING_TIMEOUT_TIME;
g_fNewDataDispRq = ON;
}
else
{
Beep_Times_Set(2);
/* Save the new data */
g_sDustAlarmData.High = g_sDustAlarmTempData.High;
g_sDustAlarmData.Middle = g_sDustAlarmTempData.Middle;
g_sDustAlarmData.Low = g_sDustAlarmTempData.Low;
g_BellKeyCounter = 0;
g_FnKeyCounter = 0;
g_DustAlarmDataSetStep = 0;
GoTo_NormalMode();
}
}
}
else
{
g_FnKeyCounter = 0;
}
}
/*Bell key process */
if(1U == g_fBellReleaseReq)
{
g_fBellReleaseReq = !BELL_KEY;
}
else
{
if(0U == BELL_KEY)
{
g_BellKeyCounter++;
if(g_BellKeyCounter>=2) /* Bell key has been pressed for 200ms*/
{
g_fBellReleaseReq = ON;
g_BellKeyCounter = 0;
/* Set the alarm data */
switch(g_DustAlarmDataSetStep)
{
case 0:
g_sDustAlarmTempData.High++;
if(g_sDustAlarmTempData.High>4)
{
g_sDustAlarmTempData.High = 0;
}
break;
case 1:
g_sDustAlarmTempData.Middle++;
if(g_sDustAlarmTempData.Middle>9)
{
g_sDustAlarmTempData.Middle = 0;
}
break;
default:
g_sDustAlarmTempData.Low++;
if(g_sDustAlarmTempData.Low>9)
{
g_sDustAlarmTempData.Low = 0;
}
}
g_ModeTimeOutCounter = ALARM_SETTING_TIMEOUT_TIME;
g_fNewDataDispRq = ON;
}
}
else
{
g_BellKeyCounter = 0;
}
}
/* Display control */
if(g_fDispFlashCounter>0)
{
g_fDispFlashCounter--;
}
else
{
g_fDispFlashCounter = SENSOR_DISP_FLASH_TIME;
g_fAlarmDataSetFlashOn = 1 - g_fAlarmDataSetFlashOn;
g_fNewDataDispRq = ON;
}
break;
case ALARM_ON_MODE:
/*Bell key process */
if(1U == g_fBellReleaseReq)
{
g_fBellReleaseReq = !BELL_KEY;
}
else
{
if(0U == BELL_KEY)
{
g_BellKeyCounter++;
if(g_BellKeyCounter>=2) /*Bell key has been pressed for 200ms*/
{
g_fBellReleaseReq = ON;
g_BellKeyCounter = 0;
GoTo_NormalMode();
}
}
else
{
g_BellKeyCounter = 0;
}
}
/* Display control */
if(g_fDispFlashCounter>0)
{
g_fDispFlashCounter--;
}
else
{
g_fDispFlashCounter = SENSOR_DISP_FLASH_TIME;
g_fAlarmOnFlashOn = 1 - g_fAlarmOnFlashOn;
}
break;
default:
/* Low power mode process */
while(1)
{
g_BatterVoltage = ADC_Sample(BATTERY_ANI_CH,5)*2;
if(g_BatterVoltage < (LOW_POWER_VOLTAGE_VALUE + 50)) /* "+ 50" In case of repeately enter the Low Power mode */
{
g_OutLowPowerModeCounter = 0;
if(1U == g_fLowPowerSleepOn)
{
LCD_Stop();
HALT();
}
else
{
if(1U == g_fNewDataDispRq)
{
LCD_Start();
Display_Process();
SEG24 = 0x0f;
}
}
}
else
{
g_OutLowPowerModeCounter++;
if(g_OutLowPowerModeCounter>3)
{
Initial_Process();
break;
}
}
}
}
/* Key release process */
if(1U == g_fFnReleaseReq)
{
g_fFnReleaseReq = !FUNCTION_KEY;
g_FnKeyCounter = 0;
}
if(1U == g_fBellReleaseReq)
{
g_fBellReleaseReq = !BELL_KEY;
g_BellKeyCounter = 0;
}
}
/******************************************************************************
End of function Mode_Process
******************************************************************************/
/******************************************************************************
* Function Name : Initial_Process
* Description : This function Initial Process.
* Arguments : none
* Return Value : none
******************************************************************************/
static void Initial_Process(void)
{
/* Initial process */
DI();
/* Variables initialize */
g_sDustAlarmData.High = DUST_DENSITY_ALARM_VELUE_INIT/100;
g_sDustAlarmData.Middle = (DUST_DENSITY_ALARM_VELUE_INIT%100)/10;
g_sDustAlarmData.Low = (DUST_DENSITY_ALARM_VELUE_INIT%100)%10;
g_fSleepModeOn = 0U;
BATTEEY_LED = OFF;
g_MainMode = INITIAL_MODE;
g_ModeTimeOutCounter = 2000/MAIN_LOOP_TIME; /* 2000ms */
/* Get data from EEPROM */
I2C_Init();
Delayms(5);
EEPROM_ReadPage(0x0);
g_DustDensityMinValue = *(uint16_t *)&g_aDataBuffer[0];
if((0xff == g_DustDensityMinValue)||(g_DustDensityMinValue > AD_SENSOR_MIN_VALUE_INIT)) /*EEPROM has not been wrote before*/
{
g_DustDensityMinValue = AD_SENSOR_MIN_VALUE_INIT;
*(uint16_t *)&g_aDataBuffer[0] = g_DustDensityMinValue;
Delayms(5);
Delayms(5);
EEPROM_WritePage(0x0);
Delayms(5);
Delayms(5);
}
/* Get value of dust density */
Sensor_Start();
EI();
while(0 == g_fSensorComputeReq);
g_fSensorComputeReq = 0;
Get_Dust_Density();
DI();
/* Get value of battery */
g_BatterVoltage = ADC_Sample(BATTERY_ANI_CH,5)*2;
g_SupplyVoltageSampleCounter = 0;
g_aSupplyVoltageBuf[g_SupplyVoltageSampleCounter]= g_BatterVoltage;
/* key initialize*/
if(0U == FUNCTION_KEY)
{
NOP();
NOP();
g_fFnReleaseReq = !FUNCTION_KEY;
}
if(0U == BELL_KEY)
{
NOP();
NOP();
g_fBellReleaseReq = !BELL_KEY;
}
g_FnKeyCounter = 0;
g_BellKeyCounter = 0;
/* Lcd start */
LCD_Start();
g_fNewDataDispRq = 1;
/* Prompt tone */
Beep_Times_Set(2);
/* Starts TAU03 */
TS0 |= 0x0008;
EI();
}
/******************************************************************************
End of function Initial_Process
******************************************************************************/
