單片機lcd240*64萬年歷制作 t6963控制器

ID:93961 · 發表于 2016-1-5 22:21

用廢棄的24064液晶屏做了個萬年歷，t6963控制器。
Proteus仿真+程序在2樓下載。

ID:93961 · 發表于 2016-1-7 11:47

最近得到一個以T6963位控制器的24064液晶屏，看著挺好，就折騰了一段時間，也參考了一些別人的程序，感覺挺好的，屏幕很大，可能程序方面還有一點點小的改進，慢慢來吧，整體上差不多了。望玩友們多多交流。

ID:54731 · 發表于 2016-1-7 16:46

樓主：資料不全呀？大家如何學習

ID:93961 · 發表于 2016-1-8 10:49

剩余的資料網上都有

ID:1 · 發表于 2016-1-11 04:23

南天白云發表于 2016-1-7 16:46
樓主：資料不全呀？大家如何學習

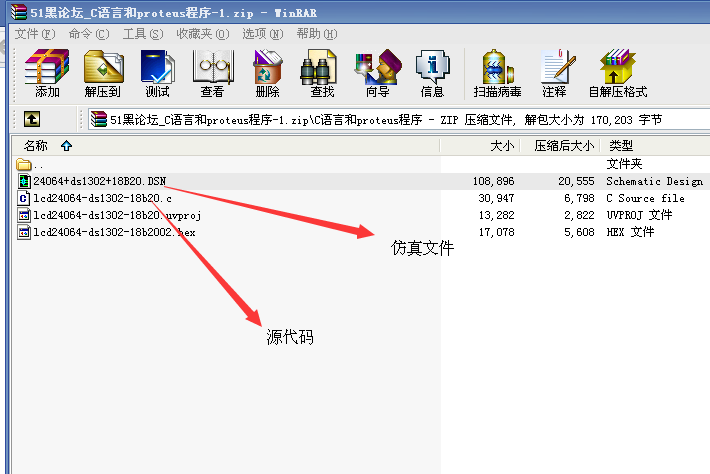

資料已經很全了，仿真，電路圖，程序都有，可以直接制作了，你還缺什么？

下面是樓主的程序：

//此程序下載至單片機中不會因失電而錯亂，顯示任意字符和漢字
#include <reg52.h>
//#include <intrins.h>
#include <math.h>
//#define nop() _nop_()
#define uchar unsigned char
#define uint unsigned int
//1. FG：液晶邊框引出端，應該接地
//2. VSS：邏輯電源地，接電源的負極
//3. VDD：邏輯電源正，接電源的正極
//4. V0：LCD驅動電壓輸入端，可通過滑動變阻器接到電源正極上，改變電阻大小來改變液晶對比度
sbit LCDWR =P3^6;//5. /WR：寫數據信號，上升沿鎖存
sbit LCDRD =P3^7;//6. /RD：讀數據信號，上升沿鎖存
sbit LCDCE =P3^5;//7. /CE：LCD選通信號，低電平有效
sbit LCDCD =P2^0;//8. C/D：命令/數據：高電平為命令，低電平為數據
//9.:暫時沒用
sbit LCDRST =P3^4;//10. /RST：復位信號，低電平有效
#define lcd_bus P0//11-18. DB0-DB7 :8位數據總線
//19. FS：字體選擇，H:6X8點，L：8X8點
//20. VEE
//21. LEDA：背光電源正極
//22. LEDK：背光電源負極
sbit DQ18B20=P1^3;//ds18b20與單片機連接口
sbit acc0=ACC^0; //移位時的第0位
sbit acc7=ACC^7; //移位時用的第7位
sbit DATA1302=P1^7; //時鐘數據接口
sbit RST1302=P1^5;
sbit SCLK1302=P1^6;
sbit menu=P3^0; //菜單
sbit add=P3^1; //加一
sbit dec=P3^2; //減一
uchar second,minute,hour,day,month,year,week,count=0;
uchar ReadValue,num,time;
uint tvalue;//溫度值
uchar tflag;
//---- LCD PIXEL SETTING ------------------------------------------------------
#define PIXELH 64
#define PIXELW 240
//-------------------------------------------------------------------------------
unsigned char code tab1[]=//16x16的漢字或者圖片
{
0x08,0x00,0x0F,0xFC,0x10,0x80,0x10,0x80,0x20,0x80,0x4F,0xF8,0x88,0x80,0x08,0x80,
0x08,0x80,0x08,0x80,0xFF,0xFE,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,//年",0
0x07,0xF0,0x04,0x10,0x04,0x10,0x04,0x10,0x07,0xF0,0x04,0x10,0x04,0x10,0x04,0x10,
0x07,0xF0,0x04,0x10,0x08,0x10,0x08,0x10,0x10,0x10,0x20,0x50,0x40,0x20,0x00,0x00,//月",1
0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,
0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,0x00,0x00,0x00,0x00,//日",2
0x00,0x00,0x1F,0xF8,0x10,0x08,0x1F,0xF8,0x10,0x08,0x1F,0xF8,0x01,0x00,0x11,0x00,
0x1F,0xFC,0x21,0x00,0x21,0x00,0x4F,0xF8,0x01,0x00,0x01,0x00,0x7F,0xFE,0x00,0x00,//星",3
0x22,0x00,0x22,0x7C,0x7F,0x44,0x22,0x44,0x3E,0x44,0x22,0x7C,0x3E,0x44,0x22,0x44,
0x22,0x44,0xFF,0x7C,0x00,0x44,0x24,0x84,0x22,0x84,0x43,0x14,0x81,0x08,0x00,0x00,//期",4
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x7F,0xFE,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//一",5
0x00,0x00,0x00,0x10,0x3F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,//二",6
0x00,0x00,0x00,0x00,0x7F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xF8,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFE,0x00,0x00,0x00,0x00,//三",7
0x00,0x00,0x7F,0xFC,0x44,0x84,0x44,0x84,0x44,0x84,0x44,0x84,0x44,0x84,0x44,0x84,
0x48,0x84,0x48,0x7C,0x50,0x04,0x60,0x04,0x40,0x04,0x7F,0xFC,0x40,0x04,0x00,0x00,//四",8
0x00,0x00,0x7F,0xF8,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x20,0x3F,0xF0,
0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x24,0xFF,0xFE,0x00,0x00,0x00,0x00,//五",9
0x04,0x00,0x03,0x00,0x01,0x80,0x01,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x04,0x80,
0x06,0x40,0x04,0x20,0x08,0x10,0x08,0x18,0x10,0x0C,0x20,0x0C,0x40,0x08,0x00,0x00,//六",10
0x00,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0xFE,0x7F,0x00,0x01,0x00,
0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x04,0x01,0x04,0x01,0x04,0x00,0xF8,0x00,0x00,//七",11
0x00,0x00,0x00,0x40,0x04,0x60,0x06,0x40,0x04,0x40,0x04,0x40,0x04,0x40,0x08,0x20,
0x08,0x20,0x10,0x10,0x10,0x10,0x20,0x08,0x40,0x0E,0x80,0x04,0x00,0x00,0x00,0x00,//八",12
0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x20,0x7F,0xF0,0x02,0x20,0x02,0x20,0x04,0x20,
0x04,0x20,0x04,0x20,0x08,0x20,0x08,0x24,0x10,0x24,0x20,0x26,0x40,0x3C,0x00,0x00,//九",13
0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0xFF,0xFE,0x01,0x00,
0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x00,0x00,//十",14
0x00,0x00,0x7F,0xFE,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x10,0x80,0x10,0xFC,
0x10,0x80,0x10,0x80,0x10,0x80,0x10,0x80,0x10,0x80,0xFF,0xFE,0x00,0x00,0x00,0x00,//正",15
0x00,0x90,0x78,0x90,0x4B,0xFE,0x48,0x90,0x78,0x90,0x48,0x90,0x4B,0xFE,0x48,0x00,
0x79,0xF8,0x49,0x08,0x49,0x08,0x49,0xF8,0x49,0x08,0x49,0x08,0xA9,0xF8,0x91,0x08,//臘",16
0x02,0x00,0x03,0x00,0x02,0x04,0x3F,0xFE,0x22,0x04,0x45,0x08,0x05,0x10,0x0C,0xB8,
0x18,0xA0,0x28,0x40,0x48,0x20,0x88,0x30,0x09,0x18,0x0A,0x0E,0x1C,0x08,0x08,0x00,//農",17
0x00,0x00,0x3F,0xFE,0x20,0x00,0x20,0x80,0x20,0x80,0x2F,0xF8,0x20,0x88,0x20,0x88,
0x20,0x88,0x21,0x08,0x21,0x08,0x22,0x08,0x42,0x08,0x44,0x38,0x88,0x10,0x00,0x00,//歷",18
0x08,0x20,0x04,0x30,0x02,0x40,0x3F,0xFC,0x01,0x00,0x01,0x00,0x1F,0xF8,0x01,0x00,
0x01,0x00,0x7F,0xFE,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,//羊",19
0x08,0x00,0x0F,0xFC,0x10,0x80,0x10,0x80,0x20,0x80,0x4F,0xF8,0x88,0x80,0x08,0x80,
0x08,0x80,0x08,0x80,0xFF,0xFE,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,//年",20
0x01,0xC0,0x02,0x20,0x02,0xE0,0x02,0x20,0x02,0xE0,0x02,0x20,0x02,0xE0,0x02,0x20,
0x02,0xE0,0x02,0x20,0x0F,0xF8,0x0F,0xF8,0x07,0xF0,0x03,0xE0,0x01,0xC0,0x00,0x00,//"溫度計符號",21
0x00,0x00,0x00,0x00,0x78,0x00,0x48,0xFC,0x49,0x04,0x79,0x04,0x02,0x00,0x02,0x00,
0x02,0x00,0x02,0x00,0x02,0x04,0x01,0x04,0x01,0x08,0x00,0xF0,0x00,0x00,0x00,0x00,//"℃,22
0x00,0x00,0x01,0x00,0x02,0x80,0x04,0x40,0x05,0xC0,0x04,0x40,0x05,0xC0,0x04,0x40,
0x05,0xC0,0x04,0x40,0x05,0xC0,0x04,0x40,0x0F,0xE0,0x07,0xC0,0x03,0x80,0x01,0x00,//溫度計的圖片，23
};
unsigned char code tab2[]=//8x16的字符
{
0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x24,0x18,0x00,0x00,//0",0
0x00,0x00,0x00,0x10,0x70,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,//1",1
0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x04,0x04,0x08,0x10,0x20,0x42,0x7E,0x00,0x00,//2",2
0x00,0x00,0x00,0x3C,0x42,0x42,0x04,0x18,0x04,0x02,0x02,0x42,0x44,0x38,0x00,0x00,//3",3
0x00,0x00,0x00,0x04,0x0C,0x14,0x24,0x24,0x44,0x44,0x7E,0x04,0x04,0x1E,0x00,0x00,//4",4
0x00,0x00,0x00,0x7E,0x40,0x40,0x40,0x58,0x64,0x02,0x02,0x42,0x44,0x38,0x00,0x00,//5",5
0x00,0x00,0x00,0x1C,0x24,0x40,0x40,0x58,0x64,0x42,0x42,0x42,0x24,0x18,0x00,0x00,//6",6
0x00,0x00,0x00,0x7E,0x44,0x44,0x08,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,//7",7
0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x24,0x18,0x24,0x42,0x42,0x42,0x3C,0x00,0x00,//8",8
0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x26,0x1A,0x02,0x02,0x24,0x38,0x00,0x00,//9",9
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,//.",10
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//負號，11
0x00,0x00,0x00,0x00,0x10,0x10,0x10,0xFE,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,//正號，12
};
unsigned char code tab3[]=//24x48的手繪數字
{
0x00,0x00,0x00,0x03,0xFF,0xC0,0x07,0xFF,0xE0,0x0F,0xFF,0xF0,0x1F,0xFF,0xF8,0x3E,
0x00,0x7C,0x7C,0x00,0x3E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,
0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,
0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,
0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,
0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,
0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,
0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x7C,0x00,0x3E,0x3E,0x00,
0x7C,0x1F,0xFF,0xF8,0x0F,0xFF,0xF0,0x07,0xFF,0xE0,0x03,0xFF,0xC0,0x00,0x00,0x00,//手繪0
0x00,0x00,0x00,0x00,0x0C,0x00,0x00,0x1C,0x00,0x00,0x3C,0x00,0x03,0xFC,0x00,0x03,
0xFC,0x00,0x03,0xFC,0x00,0x03,0xFC,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,
0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,
0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,
0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,
0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,
0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,
0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0xFF,
0x00,0x1F,0xFF,0xF8,0x1F,0xFF,0xF8,0x1F,0xFF,0xF8,0x1F,0xFF,0xF8,0x00,0x00,0x00,//手繪1
0x00,0x00,0x00,0x01,0xFE,0x00,0x07,0xFF,0xC0,0x1F,0xFF,0xF0,0x3F,0xFF,0xF8,0x3C,
0x00,0x7C,0x78,0x00,0x3E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,
0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,
0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,
0x00,0x78,0x00,0x00,0x78,0x00,0x00,0xF0,0x00,0x01,0xE0,0x00,0x03,0xC0,0x00,0x07,
0x80,0x00,0x0F,0x00,0x00,0x1E,0x00,0x00,0x3C,0x00,0x00,0x78,0x00,0x00,0xF0,0x00,
0x01,0xE0,0x00,0x03,0xC0,0x00,0x07,0x80,0x00,0x0F,0x00,0x00,0x1E,0x00,0x00,0x3C,
0x00,0x00,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,
0x1E,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x00,0x00,0x00,//手繪2
0x00,0x00,0x00,0x00,0xFF,0x80,0x03,0xFF,0xE0,0x0F,0xFF,0xF0,0x3F,0xFF,0xFC,0x3F,
0x00,0x3E,0x3C,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,
0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x00,0x00,0x1E,
0x00,0x00,0x1E,0x00,0x00,0x3E,0x00,0x00,0x7E,0x00,0x00,0xFC,0x00,0x01,0xF0,0x00,
0x03,0xC0,0x00,0x7F,0x80,0x00,0x7F,0x00,0x00,0x7F,0x80,0x00,0x7F,0xC0,0x00,0x03,
0xE0,0x00,0x01,0xF8,0x00,0x00,0x7C,0x00,0x00,0x3E,0x00,0x00,0x1E,0x00,0x00,0x1E,
0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,
0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x3C,0x00,
0x7E,0x3F,0xFF,0xFC,0x1F,0xFF,0xF8,0x07,0xFF,0xE0,0x03,0xFF,0x80,0x00,0x00,0x00,//手繪3
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x07,0xC0,0x00,0x07,0xC0,0x00,
0x0F,0xC0,0x00,0x0F,0xC0,0x00,0x1F,0xC0,0x00,0x1F,0xC0,0x00,0x3F,0xC0,0x00,0x3F,
0xC0,0x00,0x7B,0xC0,0x00,0x7B,0xC0,0x00,0xF3,0xC0,0x00,0xF3,0xC0,0x01,0xE3,0xC0,
0x01,0xE3,0xC0,0x03,0xC3,0xC0,0x03,0xC3,0xC0,0x07,0x83,0xC0,0x07,0x83,0xC0,0x0F,
0x03,0xC0,0x0F,0x03,0xC0,0x1E,0x03,0xC0,0x1E,0x03,0xC0,0x3C,0x03,0xC0,0x3C,0x03,
0xC0,0x78,0x03,0xC0,0x78,0x03,0xC0,0x78,0x03,0xC0,0x78,0x03,0xC0,0x78,0x03,0xC0,
0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x00,0x03,0xC0,0x00,
0x03,0xC0,0x00,0x03,0xC0,0x00,0x03,0xC0,0x00,0x03,0xC0,0x00,0x03,0xC0,0x00,0x03,
0xC0,0x00,0xFF,0xFE,0x00,0xFF,0xFE,0x00,0xFF,0xFE,0x00,0xFF,0xFE,0x00,0x00,0x00,//手繪4
0x00,0x00,0x00,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x78,
0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,
0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,
0x78,0x00,0x00,0x78,0x3F,0xC0,0x78,0x7F,0xE0,0x7C,0xFF,0xF0,0x7F,0xFF,0xF8,0x7F,
0xC0,0x7C,0x7F,0x80,0x3E,0x7F,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,
0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,
0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x78,0x00,0x1E,0x78,
0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x3C,0x78,0x00,0x3C,0x78,0x00,0x78,0x7C,0x00,
0xF8,0x3F,0xFF,0xF0,0x3F,0xFF,0xE0,0x1F,0xFF,0xC0,0x0F,0xFF,0x80,0x00,0x00,0x00,//手繪5
0x00,0x00,0x00,0x01,0xFF,0xC0,0x07,0xFF,0xF0,0x0F,0xFF,0xF8,0x1F,0xFF,0xFC,0x3F,
0x81,0xFC,0x7F,0x00,0xFC,0x7E,0x00,0x7C,0x7C,0x00,0x3C,0x78,0x00,0x3C,0x78,0x00,
0x3C,0x78,0x00,0x3C,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,
0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,
0xFF,0x80,0x7B,0xFF,0xE0,0x7F,0xFF,0xF0,0x7F,0xFF,0xF8,0x7F,0x00,0x7C,0x7C,0x00,
0x3C,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,
0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,
0x00,0x1E,0x78,0x00,0x1E,0x3C,0x00,0x3C,0x3C,0x00,0x3C,0x1E,0x00,0x78,0x1F,0x00,
0xF8,0x0F,0xFF,0xF0,0x07,0xFF,0xF0,0x03,0xFF,0xE0,0x01,0xFF,0xC0,0x00,0x00,0x00,//手繪6
0x00,0x00,0x00,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x78,
0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x00,0x00,0x3C,0x00,0x00,
0x78,0x00,0x00,0xF0,0x00,0x01,0xE0,0x00,0x01,0xE0,0x00,0x03,0xC0,0x00,0x03,0xC0,
0x00,0x07,0x80,0x00,0x07,0x80,0x00,0x0F,0x00,0x00,0x0F,0x00,0x00,0x1E,0x00,0x00,
0x1E,0x00,0x00,0x3C,0x00,0x00,0x3C,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,
0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,
0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,
0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,
0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x78,0x00,0x00,0x00,0x00,//手繪7
0x00,0x00,0x00,0x03,0xFF,0xC0,0x07,0xFF,0xE0,0x0F,0xFF,0xF0,0x1F,0xFF,0xF8,0x3E,
0x00,0x7C,0x7C,0x00,0x3E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,
0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,
0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x3C,0x00,0x3C,0x1E,0x00,0x78,0x0F,
0x00,0xF0,0x07,0xFF,0xE0,0x03,0xFF,0xC0,0x03,0xFF,0xC0,0x07,0xFF,0xE0,0x0F,0x00,
0xF0,0x1E,0x00,0x78,0x3C,0x00,0x3C,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,
0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,
0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x7C,0x00,0x3E,0x3E,0x00,
0x7C,0x1F,0xFF,0xF8,0x0F,0xFF,0xF0,0x07,0xFF,0xE0,0x03,0xFF,0xC0,0x00,0x00,0x00,//手繪8
0x00,0x00,0x00,0x03,0xFF,0xC0,0x07,0xFF,0xE0,0x0F,0xFF,0xF0,0x1F,0xFF,0xF8,0x3E,
0x00,0x7C,0x7C,0x00,0x3E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,
0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,
0x78,0x00,0x1E,0x78,0x00,0x1E,0x78,0x00,0x1E,0x3C,0x00,0x3E,0x1F,0x00,0x7E,0x1F,
0x80,0xFE,0x0F,0xFF,0xFE,0x07,0xFF,0xDE,0x03,0xFF,0x9E,0x00,0xFF,0x1E,0x00,0x00,
0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,
0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x00,0x00,0x1E,0x3C,0x00,0x1E,0x3C,
0x00,0x1E,0x3C,0x00,0x1E,0x3C,0x00,0x1E,0x3C,0x00,0x1E,0x3C,0x00,0x3E,0x3E,0x00,
0x7C,0x1F,0xFF,0xF8,0x0F,0xFF,0xF0,0x07,0xFF,0xE0,0x03,0xFF,0xC0,0x00,0x00,0x00,//手繪9
};
uchar code tab4[]= //8x48的字符:
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x7E,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0x7E,0x3C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x7E,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0x7E,0x3C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//
};
uchar code tab5[]= //16x16，星期用
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x7F,0xFE,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//一",0
0x00,0x00,0x00,0x10,0x3F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,//二",1
0x00,0x00,0x00,0x00,0x7F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xF8,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFE,0x00,0x00,0x00,0x00,//三",2
0x00,0x00,0x7F,0xFC,0x44,0x84,0x44,0x84,0x44,0x84,0x44,0x84,0x44,0x84,0x44,0x84,
0x48,0x84,0x48,0x7C,0x50,0x04,0x60,0x04,0x40,0x04,0x7F,0xFC,0x40,0x04,0x00,0x00,//四",3
0x00,0x00,0x7F,0xF8,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x20,0x3F,0xF0,
0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x20,0x04,0x24,0xFF,0xFE,0x00,0x00,0x00,0x00,//五",4
0x04,0x00,0x03,0x00,0x01,0x80,0x01,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x04,0x80,
0x06,0x40,0x04,0x20,0x08,0x10,0x08,0x18,0x10,0x0C,0x20,0x0C,0x40,0x08,0x00,0x00,//六",5
0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,
0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,0x00,0x00,0x00,0x00,//日",6
};
/*****************1ms延時函數****************/
void delay(uint z)
{
uint x,y;
for(x=z;x>0;x--)
for(y=110;y>0;y--);
}
void delay1(uint z) //微秒延時
{
for(;z>0;z--);
}
unsigned char rd_cmd6963(void)
{
unsigned char addr_st;
LCDCD = 1;
LCDWR = 1;
LCDCE = 0;
lcd_bus =0xff;
addr_st = lcd_bus;
LCDRD = 0;
LCDRD = 1;
LCDCE = 1;
return(addr_st);
}
/*****************檢查忙狀態程序****************/
void chkbusy6963(void)
{
unsigned char busy;
do
{
busy =!(rd_cmd6963() & 0x03);
}while(busy);
}
/*****************寫數據****************/
void wr_dat6963(unsigned char datax)
{
chkbusy6963();
LCDCD = 0;
LCDRD = 1;
LCDCE = 0;
lcd_bus = datax;
LCDWR = 0;
LCDWR = 1;
LCDCE = 1;
}
/*****************寫命令****************/
void wr_cmd6963(unsigned char cmdx)
{
chkbusy6963();
LCDCD = 1;
LCDRD = 1;
LCDCE = 0;
lcd_bus = cmdx;
LCDWR = 0;
LCDWR = 1;
LCDCE = 1;
}
/*****************寫寄存器程序****************/
void wr_reg6963(unsigned char cmd,unsigned char dat1,unsigned char dat2)
{
wr_dat6963(dat1);
wr_dat6963(dat2);
wr_cmd6963(cmd);
}
//顯示指針，圖形模式graphics＝1,文本模式graphics＝0；X坐標x_axis，以8個像素為一個單位
//Y坐標y_axis,圖形模式以1個像素為單位，文本模式以8個像素為單位
void lcd_cursor6963(unsigned char graphics,unsigned char x_axis,unsigned char y_axis)
{
unsigned int tmp;
if(graphics)tmp = y_axis*(PIXELW/8) + x_axis + 0x800;
else tmp = y_axis*(PIXELW/8) + x_axis;
wr_reg6963(0x24,(unsigned char)(tmp),(unsigned char)(tmp>>8));
wr_cmd6963(0xb0);
}
/*****************液晶屏初始化程序****************/
void init6963(void)
{
LCDRST =0;
delay(100);
LCDRST =1;
wr_cmd6963(0xf0); //bit reset
wr_reg6963(0x21,0x00,0x00); //光標地址設置
wr_reg6963(0x22,0x00,0x00); //CGRAM偏置地址設置
wr_reg6963(0x24,0x00,0x00); //顯示地址設置
wr_reg6963(0x40,0x00,0x00); //文本顯示區首地址
wr_reg6963(0x41,(unsigned char)(PIXELW/8),0x00); //文本顯示區寬度
wr_reg6963(0x42,0x00,0x08); //圖形顯示區首地址
wr_reg6963(0x43,(unsigned char)(PIXELW/8),0x00); //圖形顯示區寬度
wr_cmd6963(0x80); // OR mode
wr_cmd6963(0x9c); //文本圖形開
wr_cmd6963(0xa0); //7line指針
}
/*****************全屏顯示內容程序****************/
void lcd_showfull(unsigned char datx)
{
unsigned int i;
lcd_cursor6963(0,0,0);
for(i=0;i<((PIXELW/8)*(PIXELH/8));i++)wr_dat6963(0);
wr_cmd6963(0xb2);
lcd_cursor6963(1,0,0);
for(i=0;i<((PIXELW/8)*PIXELH);i++)wr_dat6963(datx);
wr_cmd6963(0xb2); //屏刷完后需要補上這句
}
//顯示自定義16X16字符,x_axis為X軸，以8像素為單位，y_axis為Y軸，以1像素為單位
void lcd_defcharacter16x16(unsigned char x_axis,unsigned char y_axis,unsigned char ctnchar,unsigned char startchar,unsigned char code *text)
{//ctnchar為要顯示的總字符數,startchar為自定義內碼的第幾個啟動顯示字符(即表格中的漢字),text為自定義的字符內碼
unsigned char line,ctn;
text += startchar*32;
for(ctn=0;ctnchar>0;ctnchar--,ctn+=2)
{
for(line=0;line<16;line++)
{
lcd_cursor6963(1,x_axis+ctn,y_axis+line);
wr_dat6963(*(text++));
wr_dat6963(*(text++));
wr_cmd6963(0xb2); //屏刷完后需要補上這句
}
}
}
//顯示自定義8X16字符,x_axis為X軸，以8像素為單位，y_axis為Y軸，以1像素為單位
void lcd_defcharacter8x16(unsigned char x_axis,unsigned char y_axis,unsigned char ctnchar,unsigned char startchar,unsigned char code *text)
{//ctnchar為要顯示的總字符數,startchar為自定義內碼的第幾個啟動顯示字符(即表格中的漢字),text為自定義的字符內碼
unsigned char line,ctn;
text=text + startchar*16;
for(ctn=0;ctnchar>0;ctnchar--,ctn++)
{
for(line=0;line<16;line++)
{
lcd_cursor6963(1,x_axis+ctn,y_axis+line);
wr_dat6963(*(text++));
wr_cmd6963(0xb2); //屏刷完后需要補上這句
}
}
}
//顯示自定義24X48字符,x_axis為X軸，以8像素為單位，y_axis為Y軸，以1像素為單位
void lcd_defcharacter24x48(uchar x_axis,uchar y_axis,uchar ctnchar,uchar startchar,uchar code *text)
{//ctnchar為要顯示的總字符數,startchar為自定義內碼的第幾個啟動顯示字符(即表格中的漢字),text為自定義的字符內碼
uchar line,ctn;
text=text+startchar*144; //
for(ctn=0;ctnchar>0;ctnchar--,ctn=ctn+3)
{
for(line=0;line<48;line++)
{
lcd_cursor6963(1,x_axis+ctn,y_axis+line);//
wr_dat6963(*(text++));
wr_dat6963(*(text++));
wr_dat6963(*(text++));
wr_cmd6963(0xb2); //復位自動讀寫模式，屏刷完后需要補上這句
}
}
}
//顯示自定義8X48字符,x_axis為X軸，以8像素為單位，y_axis為Y軸，以1像素為單位
void lcd_defcharacter8x48(uchar x_axis,uchar y_axis,uchar ctnchar,uchar startchar,uchar code *text)
{
//ctnchar為要顯示的總字符數
//startchar為自定義內碼的第幾個啟動顯示字符(即表格中的漢字)
//text為自定義的字符內碼
uchar line,ctn;
text=text+startchar*32; //
for(ctn=0;ctnchar>0;ctnchar--,ctn=ctn+2)
{
for(line=0;line<48;line++)
{
lcd_cursor6963(1,x_axis+ctn,y_axis+line);//
wr_dat6963(*(text++));
wr_cmd6963(0xb2); //復位自動讀寫模式，屏刷完后需要補上這句
}
}
}
void Write1302(uchar dat) //1302寫
{
uchar i;
SCLK1302=0; //拉低SCLK，為脈沖上升沿寫入數據做好準備
delay1(2); //稍微等待，使硬件做好準備
for(i=0;i<8;i++) //連續寫8個二進制位數據
{
DATA1302=dat&0x01; //取出dat的第0位數據寫入1302
delay(2); //稍微等待，使硬件做好準備
SCLK1302=1; //上升沿寫入數據
delay1(2); //稍微等待，使硬件做好準備
SCLK1302=0; //重新拉低SCLK，形成脈沖
dat>>=1; //將dat的各數據位右移1位，準備寫入下一個數據位
}
}
void WriteSet1302(uchar Cmd,uchar dat)
{
RST1302=0; //禁止數據傳遞
SCLK1302=0; //確保寫數居前SCLK被拉低
RST1302=1; //啟動數據傳輸
delay1(2); //稍微等待，使硬件做好準備
Write1302(Cmd); //寫入命令字
Write1302(dat); //寫數據
SCLK1302=1; //將時鐘電平置于已知狀態
RST1302=0; //禁止數據傳遞
}
uchar Read1302(void)
{
uchar i,dat;
delay(2); //稍微等待，使硬件做好準備
for(i=0;i<8;i++) //連續讀8個二進制位數據
{
dat>>=1; //將dat的各數據位右移1位，因為先讀出的是字節的最低位
if(DATA1302==1) //如果讀出的數據是1
dat|=0x80; //將1取出，寫在dat的最高位
SCLK1302=1; //將SCLK置于高電平，為下降沿讀出
delay1(2); //稍微等待
SCLK1302=0; //拉低SCLK，形成脈沖下降沿
delay1(2); //稍微等待
}
return dat; //將讀出的數據返回
}
uchar ReadSet1302(uchar Cmd)
{
uchar dat;
RST1302=0; //拉低RST
SCLK1302=0; //確保寫數居前SCLK被拉低
RST1302=1; //啟動數據傳輸
Write1302(Cmd); //寫入命令字
dat=Read1302(); //讀出數據
SCLK1302=1; //將時鐘電平置于已知狀態
RST1302=0; //禁止數據傳遞
return dat; //將讀出的數據返回
}
void Init_DS1302(void)
{
WriteSet1302(0x8E,0x00);//根據寫狀態寄存器命令字，寫入不保護指令
WriteSet1302(0x80,0x00);//根據寫秒寄存器命令字，寫入秒的初始值
WriteSet1302(0x82,0x20);//根據寫分寄存器命令字，寫入分的初始值
WriteSet1302(0x84,0x12);//根據寫小時寄存器命令字，寫入小時的初始值
WriteSet1302(0x86,0x01);//根據寫日寄存器命令字，寫入日的初始值
WriteSet1302(0x88,0x01);//根據寫月寄存器命令字，寫入月的初始值
WriteSet1302(0x8c,0x16);//根據寫年寄存器命令字，寫入年的初始值
WriteSet1302(0x8a,0x05);//根據寫星期寄存器命令字，寫入星期的初始值
}
void DisplaySecond(uchar x)
{
uchar i,j;
i=x/10;
j=x%10;
lcd_defcharacter24x48(14,16,1,i,tab3);//顯示秒的十位
lcd_defcharacter24x48(17,16,1,j,tab3);//顯示秒的個位
}
void DisplayMinute(uchar x)
{
uchar i,j;
i=x/10;
j=x%10;
lcd_defcharacter24x48(7,16,1,i,tab3);//顯示分鐘的十位
lcd_defcharacter24x48(10,16,1,j,tab3);//顯示分鐘的個位
}
void DisplayHour(uchar x)
{
uchar i,j;
i=x/10;
j=x%10;
lcd_defcharacter24x48(0,16,1,i,tab3);//顯示小時的十位
lcd_defcharacter24x48(3,16,1,j,tab3);//顯示小時的個位
}
void DisplayDay(uchar x)
{
uchar i,j;
i=x/10;
j=x%10;
lcd_defcharacter8x16(10,0,1,i,tab2);//顯示日的十位
lcd_defcharacter8x16(11,0,1,j,tab2);//顯示日的個位
}
void DisplayMonth(uchar x)
{
uchar i,j;
i=x/10;
j=x%10;
lcd_defcharacter8x16(6,0,1,i,tab2);//顯示月的十位
lcd_defcharacter8x16(7,0,1,j,tab2);//顯示月的個位
}
void DisplayYear(uchar x)
{
uchar i,j;
i=x/10;
j=x%10;
lcd_defcharacter8x16(2,0,1,i,tab2);//顯示年的十位
lcd_defcharacter8x16(3,0,1,j,tab2);//顯示年的個位
}
void DisplayWeek(uchar x)
{
lcd_defcharacter16x16(19,0,1,x-1,tab5);//顯示
}
void read_date(void)
{
ReadValue = ReadSet1302(0x81);
second=((ReadValue&0x70)>>4)*10 + (ReadValue&0x0F);
ReadValue = ReadSet1302(0x83);
minute=((ReadValue&0x70)>>4)*10 + (ReadValue&0x0F);
ReadValue = ReadSet1302(0x85);
hour=((ReadValue&0x70)>>4)*10 + (ReadValue&0x0F);
ReadValue = ReadSet1302(0x87);
day=((ReadValue&0x70)>>4)*10 + (ReadValue&0x0F);
ReadValue = ReadSet1302(0x89);
month=((ReadValue&0x70)>>4)*10 + (ReadValue&0x0F);
ReadValue = ReadSet1302(0x8d);
year=((ReadValue&0x70)>>4)*10 + (ReadValue&0x0F);
ReadValue=ReadSet1302(0x8b); //讀星期
week=ReadValue&0x07;
DisplaySecond(second);
DisplayMinute(minute);
DisplayHour(hour);
DisplayDay(day);
DisplayMonth(month);
DisplayYear(year);
DisplayWeek(week);
}
void turn_val(char newval,uchar flag,uchar newaddr,uchar s1num)
{
newval=ReadSet1302(newaddr); //讀取當前時間
newval=((newval&0x70)>>4)*10+(newval&0x0f); //將bcd碼轉換成十進制
if(flag) //判斷是加一還是減一
{
newval++;
switch(s1num)
{
case 1: if(newval>99) newval=0;
DisplayYear(newval);
break;
case 2: if(newval>12) newval=1;
DisplayMonth(newval);
break;
case 3: if(newval>31) newval=1;
DisplayDay(newval);
break;
case 4: if(newval>6) newval=0;
DisplayWeek(newval);
break;
case 5: if(newval>23) newval=0;
DisplayHour(newval);
break;
case 6: if(newval>59) newval=0;
DisplayMinute(newval);
break;
case 7: if(newval>59) newval=0;
DisplaySecond(newval);
break;
default:break;
}
}
else
{
newval--;
switch(s1num)
{
case 1: if(newval==0) newval=99;
DisplayYear(newval);
break;
case 2: if(newval==0) newval=12;
DisplayMonth(newval);
break;
case 3: if(newval==0) newval=31;
DisplayDay(newval);
break;
case 4: if(newval<0) newval=6;
DisplayWeek(newval);
break;
case 5: if(newval<0) newval=23;
DisplayHour(newval);
break;
case 6: if(newval<0) newval=59;
DisplayMinute(newval);
break;
case 7: if(newval<0) newval=59;
DisplaySecond(newval);
break;
default:break;
}
}
WriteSet1302((newaddr-1),((newval/10)<<4)|(newval%10)); //將新數據寫入寄存器
}
void delay_18B20(unsigned int i)//延時1微秒
{
while(i--);
}
void ds1820rst()/*ds1820復位*/
{
unsigned char x=0;
DQ18B20 = 1; //DQ復位
delay_18B20(4); //延時
DQ18B20 = 0; //DQ拉低
delay_18B20(100); //精確延時大于480us
DQ18B20 = 1; //拉高
delay_18B20(40);
}
uchar ds1820rd()/*讀數據*/
{
unsigned char i=0;
unsigned char dat = 0;
for (i=8;i>0;i--)
{
DQ18B20 = 0; //給脈沖信號
dat>>=1;
DQ18B20 = 1; //給脈沖信號
if(DQ18B20)
dat|=0x80;
delay_18B20(10);
}
return(dat);
}
void ds1820wr(uchar wdata)/*寫數據*/
{
unsigned char i=0;
for (i=8; i>0; i--)
{
DQ18B20 = 0;
DQ18B20 = wdata&0x01;
delay_18B20(10);
DQ18B20 = 1;
wdata>>=1;
}
}
read_temp()/*讀取溫度值并轉換*/
{
uchar a,b;
ds1820rst();
ds1820wr(0xcc);//*跳過讀序列號*/
ds1820wr(0x44);//*啟動溫度轉換*/
ds1820rst();
ds1820wr(0xcc);//*跳過讀序列號*/
ds1820wr(0xbe);//*讀取溫度*/
a=ds1820rd();
b=ds1820rd();
tvalue=b;
tvalue<<=8;
tvalue=tvalue|a;
if(tvalue<0x0fff)
tflag=0;
else
{
tvalue=~tvalue+1;
tflag=1;
}
tvalue=tvalue*(0.625);//溫度值擴大10倍，精確到1位小數
return(tvalue);
}
void ds1820disp()//溫度值顯示
{
lcd_defcharacter8x16(24,0,1,(tvalue%1000/100),tab2);//顯示溫度的十位
lcd_defcharacter8x16(25,0,1,(tvalue%1000%100/10),tab2);//顯示溫度的個位
lcd_defcharacter8x16(27,0,1,(tvalue%1000%100%10),tab2);//顯示溫度的小數
if(tflag==0)
lcd_defcharacter8x16(23,0,1,12,tab2);//顯示溫度的+號
else
lcd_defcharacter8x16(23,0,1,11,tab2);//顯示溫度顯-號
}
main()
{
lcd_showfull(0); //清屏
init6963(); //初始化
Init_DS1302(); //初始化1302
lcd_defcharacter8x16(0,0,1,2,tab2);//顯示 2-固定顯示
lcd_defcharacter8x16(1,0,1,0,tab2);//顯示 0-固定顯示
lcd_defcharacter16x16(4,0,1,0,tab1);//顯示年-固定顯示
lcd_defcharacter16x16(8,0,1,1,tab1);//顯示月-固定顯示
lcd_defcharacter16x16(12,0,1,2,tab1);//顯示日-固定顯示
lcd_defcharacter16x16(15,0,1,3,tab1);//顯示星-固定顯示
lcd_defcharacter16x16(17,0,1,4,tab1);//顯示期-固定顯示
lcd_defcharacter16x16(21,0,1,21,tab1);//顯示 -固定顯示溫度計圖片
lcd_defcharacter8x16(26,0,1,10,tab2);//顯示 -固定顯示小數點.
lcd_defcharacter16x16(28,0,1,22,tab1);//顯示 -固定顯示攝氏度圖片
lcd_defcharacter8x48(6,16,1,0,tab4);//顯示-固定顯示：（前兩點）
lcd_defcharacter8x48(13,16,1,0,tab4);//顯示-固定顯示：(后兩點)
lcd_defcharacter16x16(21,16,2,17,tab1);//顯示農歷兩個字
lcd_defcharacter16x16(25,16,1,19,tab1);//顯示羊字
lcd_defcharacter16x16(27,16,1,20,tab1);//顯示年字
while(1)
{
read_date();
read_temp();//讀取溫度
ds1820disp();//顯示
}
}

復制代碼

ID:104599 · 發表于 2016-2-14 15:16

學習了，謝謝分享

ID:104599 · 發表于 2016-2-23 14:51

按鍵處理部分，不會做啊，源代碼中如何調整日期和時間？小弟新學，想學習一下

ID:111852 · 發表于 2016-4-1 21:52

這個論壇太好了，什么都有

ID:137877 · 發表于 2016-8-29 23:15

華仔發表于 2016-1-7 11:47
最近得到一個以T6963位控制器的24064液晶屏，看著挺好，就折騰了一段時間，也參考了一些別人的程序，感覺挺 ...

好東西，謝謝！

ID:134810 · 發表于 2016-9-25 13:43

admin 發表于 2016-1-11 04:23
資料已經很全了，仿真，電路圖，程序都有，可以直接制作了，你還缺什么？

下面是樓主的程序：

admin大大，哪兒都有你的身影

ID:118448 · 發表于 2016-9-26 17:59

效果不錯，學習了，感謝！！！

ID:140567 · 發表于 2016-9-26 22:02

樓主太強大了

ID:162691 · 發表于 2017-1-25 23:13

樓主威武。正在學習中

ID:170689 · 發表于 2017-3-20 15:16

敢問樓主能不能說說怎么調制我做了一個一樣的沒法設置時間呢

ID:170689 · 發表于 2017-3-20 16:30

程序有誤且時間不對還不能設置

ID:184282 · 發表于 2017-4-14 19:49

好東西，樓主有T6963液晶驅動器的介紹資料么？或者是這個型號液晶的資料

ID:85740 · 發表于 2017-7-27 21:16

admin 發表于 2016-1-11 04:23
資料已經很全了，仿真，電路圖，程序都有，可以直接制作了，你還缺什么？

下面是樓主的程序：

比如缺取模方式？

ID:242464 · 發表于 2018-2-17 17:52

按鍵處理部分的程序已經被處理掉，調整日期和時間的功能已經沒有了.

ID:242464 · 發表于 2018-2-17 17:57

調整日期及時間的程序已經被處理掉了,只能自己開發

ID:85934 · 發表于 2018-3-10 12:55

手里有個24064，自帶8個觸摸按鍵，一直驅動不了。這個如有農歷就完美了。

ID:288930 · 發表于 2018-3-22 18:11

程序怎么有警告？

ID:288930 · 發表于 2018-3-22 18:12

程序有警告？

ID:269511 · 發表于 2019-10-30 22:24

謝謝分享

ID:164988 · 發表于 2019-10-31 17:02

我的屏是240128的，也是t6963控制器，不知怎么辦，

ID:600695 · 發表于 2021-2-4 14:57

我下載程序編譯不成功，Build target 'Target 1'
assembling STARTUP.A51...
compiling 240wannianli .c...
linking...
BL51 BANKED LINKER/LOCATER V6.22 - SN: Eval Version
COPYRIGHT KEIL ELEKTRONIK GmbH 1987 - 2009
"STARTUP.obj",
"240wannianli .obj"
TO "240萬年歷"
*** WARNING L16: UNCALLED SEGMENT, IGNORED FOR OVERLAY PROCESS
SEGMENT: ?PR?_TURN_VAL?240WANNIANLI_
******************************************************************************
* RESTRICTED VERSION WITH 0800H BYTE CODE SIZE LIMIT; USED: 141AH BYTE (251%) *
******************************************************************************
Program Size: data=36.0 xdata=0 code=5861
LINK/LOCATE RUN COMPLETE. 1 WARNING(S), 0 ERROR(S)
*** WARNING L16: UNCALLED SEGMENT, IGNORED FOR OVERLAY PROCESS
SEGMENT: ?PR?_TURN_VAL?240WANNIANLI_
*** FATAL ERROR L250: CODE SIZE LIMIT IN RESTRICTED VERSION EXCEEDED
MODULE: E:\KEIL\C51\LIB\C51S.LIB (-----)
LIMIT: 0800H BYTES
Target not created

ID:600695 · 發表于 2021-3-13 17:22

米花卷發表于 2021-2-4 14:57
我下載程序編譯不成功，Build target 'Target 1'
assembling STARTUP.A51...
compiling 240wannianli .c. ...

應該是你的keil沒有破解，只能生成2k的hex，所以超了

我前面也碰到過，總體來說這個程序不錯，仿真正常

ID:884564 · 發表于 2021-4-28 15:04

哎，看到別人能成功，我還得加油啊，240128設計繼續！！

ID:92553 · 發表于 2022-1-3 20:16

問下樓主這個萬年歷是多少年的，從那一年到那一年？

ID:1085582 · 發表于 2023-6-23 15:32

牛人啊，只是問問如果此51芯片單片機換成dspic芯片改動大嗎？

ID:313936 · 發表于 2023-6-25 08:22

admin 發表于 2016-1-11 04:23
資料已經很全了，仿真，電路圖，程序都有，可以直接制作了，你還缺什么？

下面是樓主的程序：

謝謝老師分享

帳號		自動登錄	找回密碼
密碼			立即注冊

久久久久久久999_99精品久久精品一区二区爱城_成人欧美一区二区三区在线播放_国产精品日本一区二区不卡视频_国产午夜视频_欧美精品在线观看免费

單片機lcd240*64萬年歷制作 t6963控制器

評分

RE: 單片機lcd24064萬年歷制作 t6963控制器

評分
