學習單片機，制作單片機最小系統是每個單片機愛好者的都經歷過的階段，單片機最小系統制作好有什么用呢？為提高單片機愛好者學習制作單片機最小系統興趣，這里介紹一個有趣的單片機小程序，就是用單片機最小系統播放歡樂頌及最炫民族風片段。在按下圖制作好單片機最小系統后，再增加三只元件：1個電阻、1個S9012三極管，1個8歐的小喇叭后，即可完成這個單片機最小系統播放歡樂頌及最炫民族風片段的小試驗，單片機愛好者通過這個小試驗后，一定會大大增強對單片機學習的興趣。這個單片機最小系統播放歡樂頌及最炫民族風片段的小試驗，由于電路比較簡單，所以這里就不畫出原理圖了，直接給出試驗的PCB圖，感興趣的愛好者可以按圖進行焊接制作，制作好后向單片機內燒寫程序后安裝上去就可以工作，感受一下單片機的無窮勉力。

下載

單片機播放歡樂頌與最炫民族風片段程序包.zip (204.72 KB, 下載次數: 172)

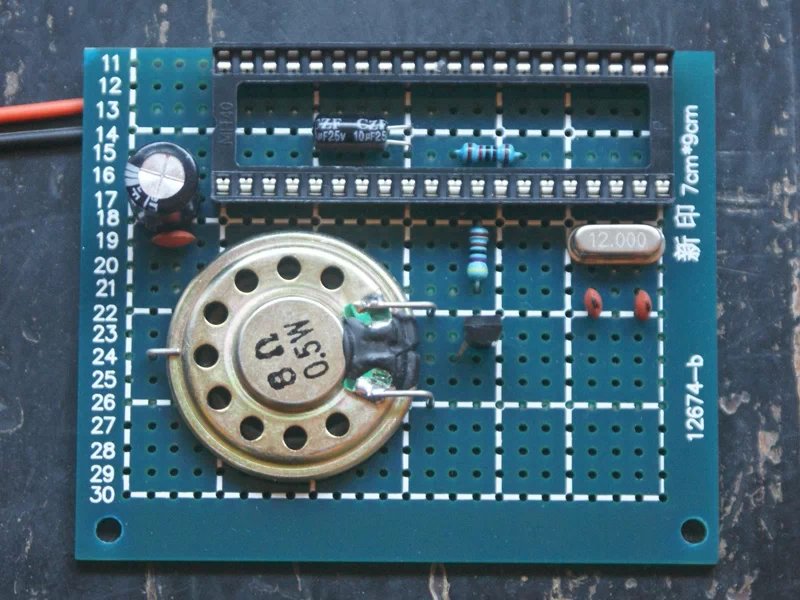

焊好的單片機最小系統播放歡樂頌及最炫民族風片段試驗板的實物照片

/******************************************************************************/
/**程序名稱：單片機播放歡樂頌與最炫民族風片段
/**其他：用于時鐘周期為12MHz的STC89C52單片機
/******************************************************************************/
#include<reg52.h>
sbit BUZZER = P3^2;
#define uchar unsigned char
#define uint unsigned int
#define REST 36 //休止符
#define A 0 //低音1
#define AB 1 //低音1.5
#define B 2 //低音2
#define BC 3 //低音2.5
#define C 4 //低音3
#define D 5 //低音4
#define DE 6 //低音4.5
#define E 7 //低音5
#define EF 8 //低音5.5
#define F 9 //低音6
#define FG 10 //低音6.5
#define G 11 //低音7
#define L 12 //中音1
#define LM 13 //中音1.5
#define M 14 //中音2
#define MN 15 //中音2.5
#define N 16 //中音3
#define O 17 //中音4
#define OP 18 //中音4.5
#define P 19 //中音5
#define PQ 20 //中音5.5
#define Q 21 //中音6
#define QR 22 //中音6.5
#define R 23 //中音7
#define S 24 //高音1
#define SU 25 //高音1.5
#define U 26 //高音2
#define UV 27 //高音2.5
#define V 28 //高音3
#define W 29 //高音4
#define WX 30 //高音4.5
#define X 31 //高音5
#define XY 32 //高音5.5
#define Y 33 //高音6
#define YZ 34 //高音6.5
#define Z 35 //高音7
//音階
uchar code m_note[][2] = {
{248,136},{248,243},{249,88},{249,184},{250,18},{250,103},{250,184},{251,3},{251,75},
{251,143},{251,206},{252,11},{252,67},{252,121},{252,172},{252,219},{253,9},{253,51},
{253,91},{253,129},{253,165},{253,199},{253,231},{254,5},{254,33},{254,60},{254,85},
{254,109},{254,132},{254,153},{254,173},{254,192},{254,210},{254,227},{254,243},{255,2},
{0,0},
};
//音符(1對應三十二分音符，32對應全音符）
uchar code display[][2] = {
//歡樂頌
{N,8},{N,8},{O,8},{P,8},{P,8},{O,8},{N,8},{M,8},{L,8},{L,8},{M,8},{N,8},{N,12},{M,4},{M,8},{0xff,8},
{N,8},{N,8},{O,8},{P,8},{P,8},{O,8},{N,8},{M,8},{L,8},{L,8},{M,8},{N,8},{M,12},{L,4},{L,8},{0xff,8},
{M,8},{M,8},{N,8},{L,8},{M,8},{N,4},{O,4},{N,8},{L,8},{M,8},{N,4},{O,4},{N,8},{M,8},{L,8},{M,8},{E,8},
{N,8},{N,8},{O,8},{P,8},{P,8},{O,8},{N,8},{M,8},{L,8},{L,8},{M,8},{N,8},{M,12},{L,4},{L,8},{0xff,8},
{M,8},{M,8},{N,8},{L,8},{M,8},{N,4},{O,4},{N,8},{L,8},{M,8},{N,4},{O,4},{N,8},{M,8},{L,8},{M,8},{E,8},
{N,8},{N,8},{O,8},{P,8},{P,8},{O,8},{N,8},{M,8},{L,8},{L,8},{M,8},{N,8},{M,12},{L,4},{L,8},{0xff,8},
//樂譜（最炫民族風）
{N,8},{F,4},{F,4},{L,8},{N,8},{M,4},{M,2},{N,2},{M,4},{L,4},
{M,4},{L,4},{F,8},{N,8},{F,4},{F,4},{L,8},{N,8},
{P,4},{M,2},{N,2},{M,4},{L,4},{M,4},{L,4},{G,4},{E,4},
{N,8},{F,4},{F,4},{L,8},{N,8},{M,4},{M,2},{N,2},{M,4},{L,4},
{M,4},{L,4},{F,4},{E,4},{N,8},{F,4},{F,4},{L,8},{N,8},
{P,4},{N,4},{0xff,24},//前奏
{F,8},{F,4},{E,4},{F,8},{F,4},{L,4},{L,8},{M,4},{L,4},{F,8},
{0xff,8},{L,8},{L,4},{E,4},{L,4},{M,4},{N,4},{P,4},{P,4},{N,4},
{M,8},{N,8},{0xff,8},{Q,4},{Q,4},{Q,4},{P,4},{N,4},{N,8},{L,4},
{F,4},{F,4},{F,4},{N,4},{M,8},{0xff,8},{N,4},{N,4},{P,4},{N,4},
{M,4},{N,4},{M,4},{L,4},{F,8},{E,8},{F,8},{0xff,8},
{F,8},{F,4},{E,4},{F,8},{F,4},{L,4},{L,8},{M,4},{L,4},{F,8},
{0xff,8},{L,8},{L,4},{E,4},{L,4},{M,4},{N,4},{P,4},{P,4},{N,4},
{M,8},{N,8},{0xff,8},{Q,4},{Q,4},{Q,4},{P,4},{N,4},{N,8},{L,4},
{F,4},{F,4},{F,4},{N,4},{M,8},{0xff,8},{N,4},{N,4},{P,4},{N,4},
{M,4},{N,4},{M,4},{L,4},{F,8},{E,8},{F,8},{0xff,8},
{N,4},{N,4},{P,4},{N,4},{N,4},{P,4},{P,4},{Q,4},{S,4},{Q,4},
{P,8},{Q,8},{0xff,8}, //此處有變調
{F,8},{F,4},{E,4},{F,8},{L,8},{M,4},{N,2},{M,2},{L,4},{M,4},
{N,8},{0xff,8},{F,4},{Q,4},{Q,4},{P,4},{M,4},{N,2},{M,2},
{L,4},{M,4},{N,8},{0xff,8},{0xff,16},{L,4},{F,4},{F,4},{L,4},
{M,8},{E,4},{E,4},{N,4},{P,4},{N,4},{M,4},{L,8},{0xff,8},
{F,4},{L,4},{M,4},{N,4},{M,4},{L,4},{E,4},{C,4},{F,8},{0xff,8},{0xff,16},
{F,8},{F,4},{E,4},{F,8},{L,8},{M,4},{N,2},{M,2},{L,4},{M,4},
{N,8},{0xff,8},{F,4},{Q,4},{Q,4},{P,4},{M,4},{N,2},{M,2},
{L,4},{M,4},{N,8},{0xff,8},{0xff,16},{L,4},{F,4},{F,4},{L,4},
{M,8},{E,4},{E,4},{N,4},{P,4},{N,4},{M,4},{L,12},{L,4},
{F,4},{L,4},{M,4},{N,4},{P,4},{N,4},{N,4},{P,4},{Q,8},{0xff,8},{0xff,8},
{Q,6}, {Q,2},{Q,4},{Q,4},{Q,6},{P,2},{N,4},{M,4},{M,6},{M,2},{N,6},{P,2},{N,6},{M,2},
{L,6},{F,2},{F,8},{F,4},{E,4},{F,8},{F,4},{L,4}, {M,4},{N,2},{M,2}, {L,4},{M,4},{N,8},{0xff,8},
{Q,4},{P,4},{N,4},{M,4},{P,4},{N,4},{M,4},{L,4},{L,8},{0xff,8},{F,2}, {A,2},{B,2},{C,2},{B,2},
{A,2}, {F,2},{A,2},
{N,4},{N,4},{P,4},{N,4},{N,4},{P,4},{P,4},{Q,4},{S,4},{Q,4},
{P,8},{Q,8},{0xff,8}, //此處有變調
{F,8},{F,4},{E,4},{F,8},{L,8},{M,4},{N,2},{M,2},{L,4},{M,4},
{N,8},{0xff,8},{F,4},{Q,4},{Q,4},{P,4},{M,4},{N,2},{M,2},
{L,4},{M,4},{N,8},{0xff,8},{0xff,16},{L,4},{F,4},{F,4},{L,4},
{M,8},{E,4},{E,4},{N,4},{P,4},{N,4},{M,4},{L,8},{0xff,8},
{F,4},{L,4},{M,4},{N,4},{M,4},{L,4},{E,4},{C,4},{F,8},{0xff,8},{0xff,16},
{F,8},{F,4},{E,4},{F,8},{L,8},{M,4},{N,2},{M,2},{L,4},{M,4},
{N,8},{0xff,8},{F,4},{Q,4},{Q,4},{P,4},{M,4},{N,2},{M,2},
{L,4},{M,4},{N,8},{0xff,8},{0xff,16},{L,4},{F,4},{F,4},{L,4},
{M,8},{E,4},{E,4},{N,4},{P,4},{N,4},{M,4},{L,12},{L,4},
{F,4},{L,4},{M,4},{N,4},{P,4},{N,4},{N,4},{P,4},{Q,8},{0xff,8},{0xff,8},
{0,0xff},
};
uchar time_h,time_l;
void Delay(uchar x);
void main()
{
uchar j;
uint i;
TMOD = 0x01;
ET0 = 1;
EA = 1;
TR0 = 1;
i = 0;
j = 0;
while(1)
{
while(display[i][1] != 0xff)
{
if(display[i][0] == 0xff)
{
TR0 = 0;
Delay(display[i][1]);
BUZZER = 1;
}
else
{
time_h = m_note[display[i][0]][0];
time_l = m_note[display[i][0]][1];
TH0 = time_h;
TL0 = time_l;
ET0 = 1;
TR0 = 1;
Delay(display[i][1]);
TR0 = 0;
ET0 = 0;
BUZZER = 1;
}
i++;
}
i = 0;
}
}
void Timer0() interrupt 1
{
TR0 = 0;
TH0 = time_h;
TL0 = time_l;
BUZZER = ~BUZZER;
TR0 = 1;
}
void Delay(uchar x)
{
uint i,j;
for(i = 0;i < x;i++)
for(j = 0;j < 12000;j++);
}
