1.在要調用項目的文件夾創建除法器宏模塊

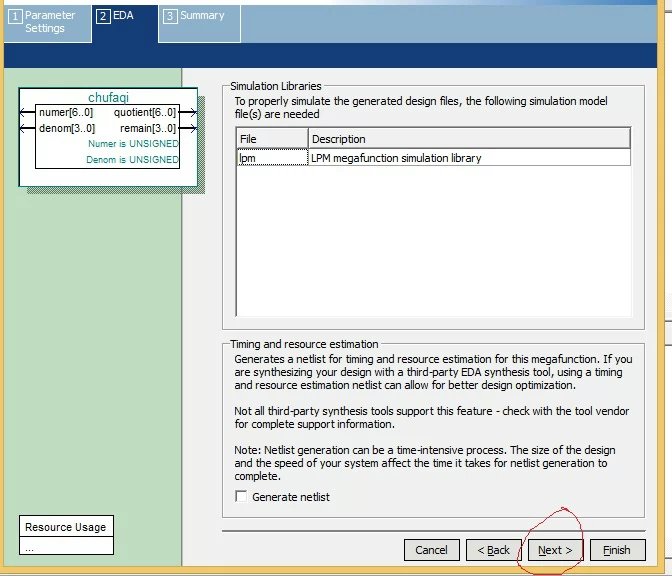

按下圖設置和添加宏模塊
Library ieee;
Use ieee.std_logic_1164.all;
Use ieee.std_logic_unsigned.all;
Use ieee.std_logic_arith.all;
Entity dddd is
Port(a:in std_logic_vector(6 downto 0);
b:in std_logic_vector(3 downto 0);
x:out std_logic_vector(6 downto 0);
y:out std_logic_vector(3 downto 0));
end ;
architecture dd of dddd is
--------定義調用宏模塊
component chufa is
port(numer:in std_logic_vector(6 downto 0);
denom:in std_logic_vector(3 downto 0);
quotient:out std_logic_vector(6 downto 0);
remain:out std_logic_vector(3 downto 0) );
end component;
-----------------結束定義
begin
U:chufa port map(a,b,x,y); -----調用
end;
|
