51單片機制作的八階流水燈

ID:1051855 · 發表于 2022-11-14 12:57

女朋友的生日要到了，絞盡腦汁想送一個有意義的禮物。
后來在網站上看到了這個八階流水燈，感覺非常漂亮，準備做一個送給女友。
受限于網絡資料有限，浪費了不少的錢還浪費了不少的精力。
在這里分享給各位，希望能給大家帶來一點幫助。

自己寫的程序，使用了8*8*8個led小燈。
既可以使用220V電源供電也可以使用充電寶供電。

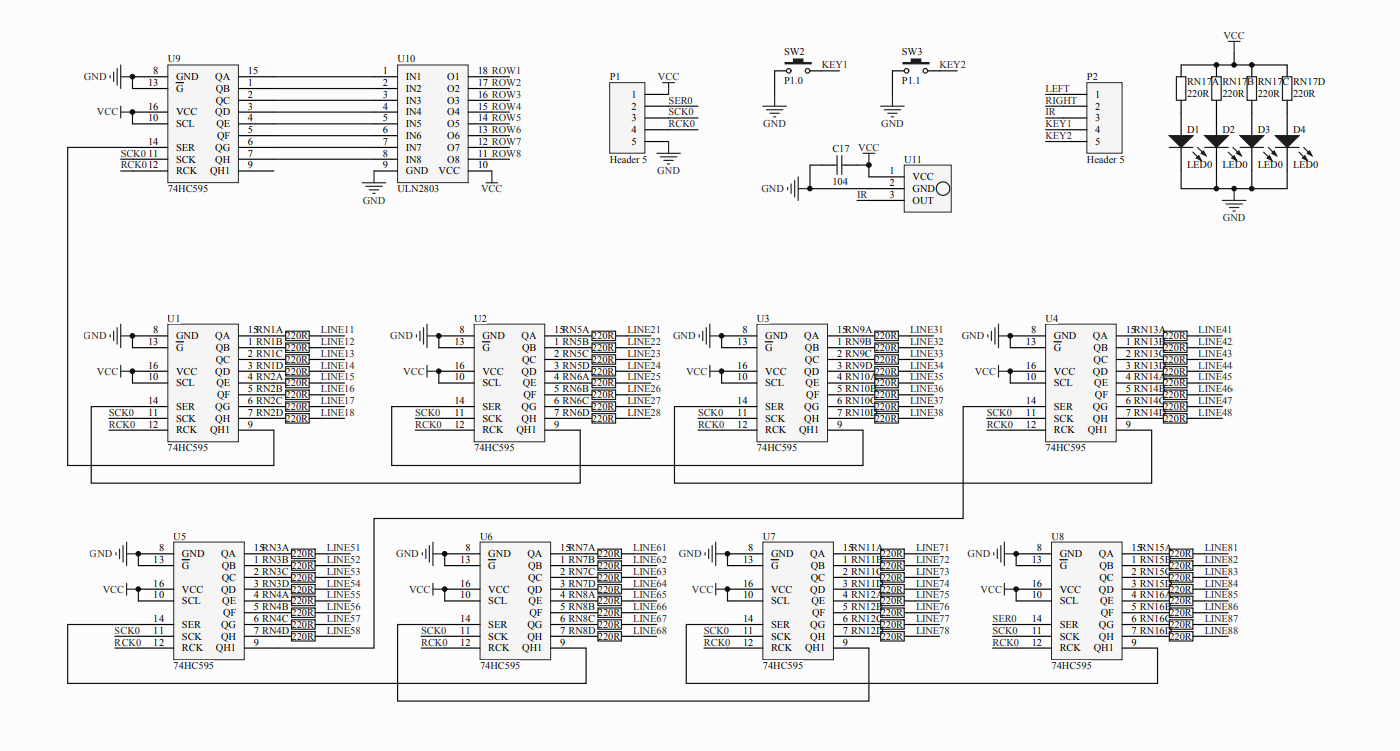

電路圖奉上 51hei截圖20221114113441.png

主要使用的是74hc595芯片的聯級，當時為了找合適的芯片可是費了好大功夫。

真的是從o開始學的，推薦學習視頻https://www.bilibili.com/video/B ... story.content.click

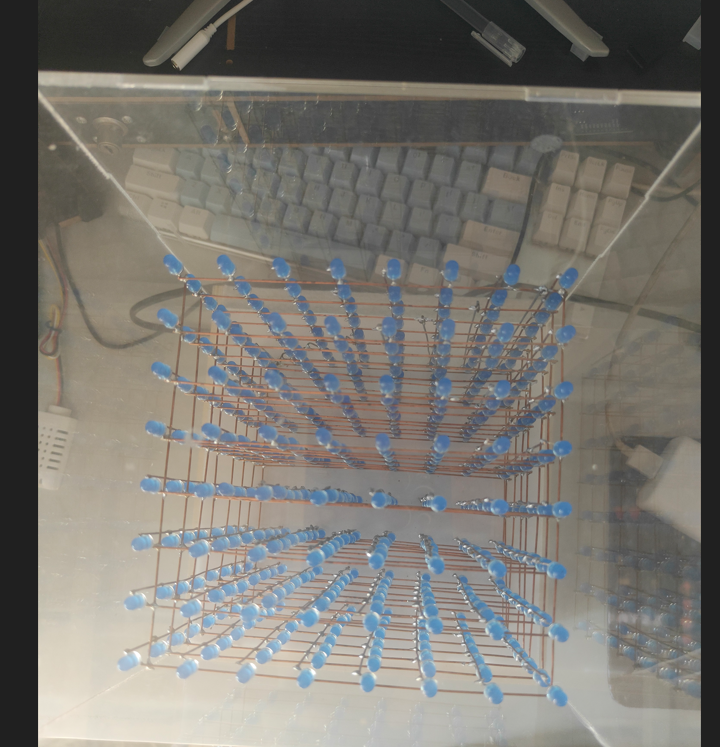

實物展示

夜晚效果最好
外殼 51hei圖片20221114115516.png

制作過程，視頻展示，自己賬號（理科生的浪漫）有哪個女孩子能拒絕這樣的生日禮物呢基于51單片機的8手工八階流水燈
部分單片機代碼展示
#include "74HC595.h"
#include "math.h"
#include "showfont.h"
#include "various.H"
#include "key.h"
unsigned char team = 0;
unsigned char fast = 25;
unsigned char tiao = 0;
unsigned char style = 0,biao = 0,folt2 = 0,folt_2 = 0,folt3 = 0,folt4 = 0,folt7 = 0;
unsigned char anxia = 0,anxia_t = 0;
unsigned char Time0_count = 0,Time1_count = 0,Time2_count = 0,Time3_count = 0;

void Show_style(void)
{
      switch(style)
      {
            case 0:
                                                                                                      fast=15;UPorDOWN(Rotate_buf[0],Time0_count);  //跳動的心
                     break;
            case 1:
                                          fast=80;RotateS(1,Time0_count);             //旋轉
                     break;
            case 2:
                                                                                                      fast=15;Show_rain2(Time0_count);             //代碼（小）雨
               break;
            case 3:
                                                                                                      fast=40;CubeL(Time0_count);                //縮放空心正方體
               break;
            case 4:
                                                                                                      fast=40;Cube(Time0_count);                   //縮放實心正方體
               break;
            case 5:
                                                                                                      fast=40;Show_rain(Time0_count);             //代碼（大）雨
               break;
            case 6:
                                                                                                      fast=8;all_Surface(Time3_count);             //基面平移
               break;
            case 7:
                                                                                                      fast=10;Cube2(Time3_count);                   //縮放實心正方體2
               break;
      }

      if(TR0 == 0)
      {
            if(++Time0_count > 15)
            {
                     if(++folt7 == 7)folt7 = 0;
                     Time0_count=0;
            }
            if(++Time1_count > 28)Time1_count=0;
            if(++Time2_count > 21)Time2_count=0;
            if(++Time3_count > 13)
            {
                     Time3_count = 0;
                     if(++folt2 == 2)folt2 = 0;
                     if(++folt4 == 4)
                     {
                              folt4 = 0;
                              if(++folt3 == 3)folt3 = 0;
                     }
            }
      TR0 = 1;
      }
}

///////////**********************************/////////////////////
///////////**********************************/////////////////////
///////////**********************************/////////////////////
///////////**********************************/////////////////////
void main()
{
      HC_595_Init();
      Clean(); //清除外部芯片寄存器
      Time0_Init();
      style = 255;
      while(!Show_word(Time1_count) && (!Scan_key() || Time0_count<4))
            Show_style();
      Clean(); //清除外部芯片寄存器
      Time0_count = Time3_count = style = 0;
      while(1)
      {
            Show_all();
            key_anxia();
            xiaoyedeng();
            Show_style();
      }
}

/*************************按鍵****************************/

bit Scan_key(void)
{
      static bit state=0;
      if(!state && !KEY)
      {
            delay(2000);
            if(!KEY)
            {
                     state = 1;
                     return 1;
            }
      }
      if(KEY) state = 0;
      return 0;
}

void key_anxia()
{
      if(Scan_key())
      {
            Clean();
            folt4 = 0;
            Time0_count=0;
            Time1_count=0;
            Time3_count=0;
            if(++style > 9) style=0;
                     if(KEY==0)
            {
                     anxia = team = 0;
                     while(KEY==0)Show_style();
                     anxia_t=anxia;

                     if(anxia_t>2)
                     {
                              Time2_count = 0;
                              biao = style;
                              style = 100;
                     }
                     anxia_t= 0;
            }
      }
}

/**********************定時器***************************/
void Time0() interrupt 1
{
      static unsigned char count=0;
      TH0 = (65535 - 50000) / 256;
      TL0 = (65535 - 50000) % 256;
      if(++team>=20)
      {
            team=0;
            if(++anxia>=4)anxia=4;
      }
      if(++count > fast) {TR0 = 0,count=0;}
}

/************************************varoious********************************************/

void Show_all()                            //-------------------全部循環---------------
{
      if(style==9)
      {
            while(!Scan_key())Show_layer_T(Rotate_buf[2],6);
      }
      if(style==8)
      {
            folt7 = 0;tiao = 0;
            while(!Scan_key())
            {
                     if(Scan_key()&&tiao == 1)
                     {style = 9;break;}
                     else if(tiao == 1)break;
                     if(folt7 == 0) style = 0;
                     else if(folt7 == 1)style = 2;
                     else if(folt7 == 2)style = 2;
                     else if(folt7 == 3)style = 3;
                     else if(folt7 == 4)style = 4;
                     else if(folt7 == 5)style = 5;
                     else if(folt7 == 6)
                     {
                              Time3_count = 0;folt4 = 0;
                              while(!Scan_key())
                              {
                                    if(tiao == 1)break;
                                    if(folt3 == 0)style = 6;
                                    else if(folt3 == 1)style = 7;
                                    else
                                             while(!Scan_key())
                                             {
                                                      if(Scan_key())tiao = 1;
                                                      else {tiao = 1;style = 8;}
                                                      if(tiao == 1)break;
                                             }
                                    Show_style();
                              }
                     }
                     Show_style();
            }
      }
}
void xiaoyedeng()//小夜燈，長按
{
      if(style==100)
            {
                     fast=25;
                     while(!SCY521(Time2_count))Show_style();
                     while(!SCY521_(Time2_count))Show_style();
                     while(style==100)
                     {
                              led_all();
                              key_anxia();
                     }
                     style = biao;biao=0;
            }
}
void led_all()
{
      unsigned char code a[] = {0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff};
      GND = 0;
      LED16_HC595_drive(a);
}

//void scroll(unsigned char state)          //滾動------------(有問題)
//{
//       static unsigned char Show_[8] = {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};
//       state %= 16;
//       if(state < 4)
//       {
//             Show_[0] = 0;Show_[1] = 0;Show_[2] = 0;Show_[3] =0; Show_[4] = 0;Show_[5] = 0; Show_[6] = 0;
//             Show_[7] = 0xff;
//             GND = 0;
//       }
//       else if(state < 8)
//       {
//             Show_[0] =0xff; Show_[1] =0xff; Show_[2] = 0xff;Show_[3] = 0xff;Show_[4] = 0xff;Show_[5] = 0xff; Show_[6] = 0xff;Show_[7] = 0xff;
//             GND = ~0x80;
//       }
//       else if(state < 12)
//       {
//       Show_[1] = 0x00;Show_[2] = 0x00;Show_[3] = 0x00;Show_[4] = 0x00;Show_[5] =  0x00;Show_[6] = 0x00;Show_[7] = 0x00;
//             Show_[0] = 0xff;
//             GND = ~0;
//       }
//       else
//       {
//             Show_[1] = 0xff;Show_[2] = 0xff;Show_[3] = 0xff;Show_[4] = 0xff;Show_[5] =  0xff;Show_[6] = 0xff;Show_[7] = 0xff;
//             GND = 0x01;
//       }
//       LED16_HC595_drive(Show_);
//}
void Show_layer(unsigned char *image,unsigned char lay) //顯示某上層圖像
{
      LED16_HC595_drive(image);
      P0 = ~(0x01<<(lay));
}

void Show_layer_T(unsigned char *image, unsigned char lay)  //顯示某正層圖像
{
      unsigned char j,i,k;
      unsigned char showbuf[8]={0,0,0,0,0,0,0,0};
      for(j=0; j<8; j++)
      {
            k = image[7-j];
            for(i=0; i<8;i++)
                     showbuf[lay] |= (((k>>i)&0x01)<<(7-i));
            Show_layer(showbuf,j);
            showbuf[lay] = 0;
      }
}
void Show_layer_T2(unsigned char *image, unsigned char lay)  //顯示某正 2層圖像
{
      unsigned char j,i,k;
      unsigned char showbuf[8]={0,0,0,0,0,0,0,0};
      for(j=0; j<8; j++)
      {
            k=image[7-j];
            for(i=0;i<8;i++)
            {
                     showbuf[lay] |= (((k>>i)&0x01)<<(7-i));
                     showbuf[lay+1] |= (((k>>i)&0x01)<<(7-i));
            }
            Show_layer(showbuf,j);
            showbuf[lay] = 0;
            showbuf[lay+1] = 0;
      }
}

//void Show_layer_L(unsigned char *image, unsigned char lay) //顯示某側層圖像
//{
//       unsigned char i,j;
//       unsigned char showbuf[8]={0,0,0,0,0,0,0,0};
//       for(i=0; i<8; i++)
//       {
//             for(j=0; j<8; j++)
//             {
//                      showbuf[j] = (image[7-i]>>j)&0x01;
//                      showbuf[j] <<= lay;
//             }
//             Show_layer(showbuf,i);
//       }
//}
void Show_2L(unsigned char *image) //顯示
{
      unsigned char i,j;
      unsigned char showbuf[8]={0,0,0,0,0,0,0,0};
      for(i=0; i<8; i++)
      {
            for(j=0; j<8; j++)
            {
                     showbuf[j] = (image[7-i]>>j)&0x01;
                     showbuf[j] <<= 7;
                     showbuf[j] |= showbuf[j] >>= 7;
            }
            Show_layer(showbuf,i);
      }
}

unsigned char Read_point(unsigned char *imag, unsigned char x, unsigned char y)
{
      unsigned char buf;
      buf = imag[y];
      buf = (buf>>(7-x))&0x01;
      return buf;
}
void Write_point(unsigned char *imag, unsigned char x, unsigned char y,unsigned char dat)
{
      imag[y] = (imag[y]&(~(0x01<<(7-x)))) | (dat<<(7-x));
}
void Square(u8 *imag, u8 x1, u8 y1, u8 x2, u8 y2) //正方面
{
      unsigned char y3;

      for(; x1<=x2; x1++)
      {
            y3 = y1;
            for(y3; y3<=y2; y3++)
            {
                     Write_point(imag,x1,y3,1);
            }
      }
}

// ---- 線正方體 -----
void SquareL(u8 *imag, u8 x1, u8 y1, u8 x2, u8 y2)
{
      unsigned char i=0;
      for(i=x1; i<=x2; i++)
      {
            Write_point(imag,i,y1,1);
            Write_point(imag,i,y2,1);
      }
      for(i=y1; i<=y2; i++)
      {
            Write_point(imag,x1,i,1);
            Write_point(imag,x2,i,1);
      }
}
void SquareP(u8 *imag, u8 x1, u8 y1, u8 x2, u8 y2)
{
      Write_point(imag,x1,y1,1);
      Write_point(imag,x1,y2,1);
      Write_point(imag,x2,y1,1);
      Write_point(imag,x2,y2,1);
}
// ------ 旋轉 --------
unsigned char* Rotate(unsigned char *imag, unsigned char state)
{
      unsigned char showbuf[8]={0,0,0,0,0,0,0,0};
      unsigned char i,j,k;
      unsigned char x,y;
      state %= 4;
      if(1<=state && state <=3)
      {
            for(i=0; i<8; i++)
            {
                     for(j=0; j<8; j++)
                     {
                              if(state == 1) x=i,y=j;
                              else if(state == 2) x=j,y=7-i;
                              else if(state == 3) x=7-i,y=7-j;
                              k = Read_point(imag,7-j,i);
                              if(!k) continue;
                              Write_point(showbuf,x,y,k);
                     }
            }
            return showbuf;
      }
      else
            return imag;
}
void Clean(void) //清除外部芯片寄存器
{
      unsigned char showbuf[8];
      unsigned char i;
      for(i=0; i<8; i++)
      {
            Show_layer(showbuf,i);
      }
}
/* ===================================================== */

//--- 代碼雨 ---
void Show_rain(unsigned char state)
{
      unsigned char i;
      state%=8;
      for(i=0; i<8; i++)
      {
            Show_layer(rain_buf[7 - state],i);
            if(++state > 7) state = 0;
      }
}
//--- 代碼雨 2 ---
void Show_rain2(unsigned char state)
{
      unsigned char i;
      state%=8;
      for(i=0; i<8; i++)
      {
            Show_layer(rain_buf2[7 - state],i);
            if(++state > 7) state = 0;
      }
}
// ------- 縮放正方體 -----
void Cube(unsigned char state)    //縮放正方體 -----
{
      unsigned char Show_Buf[8] = {0,0,0,0,0,0,0,0};
      state %= 8;
      if(state >= 4) state = 7-state;
      Square(Show_Buf, 3-state, 3-state, 4+state, 4+state);
      LED16_HC595_drive(Show_Buf); GND = ( (0xE0<<state) | (0x07>>state) );
}

void Cube2(unsigned char state) //縮放正方體2 -----
{
      unsigned char Show_Buf[8] = {0,0,0,0,0,0,0,0};
      state %= 14;
      if(folt4 == 0)
      {
            if(state < 8)Square(Show_Buf,0,0,state,state);
            else
            {
                     state = 14-state;
                     Square(Show_Buf,7-state,0,7,state);
            }
            LED16_HC595_drive(Show_Buf);
            GND = 0xfe<<state;
      }
      else if(folt4 == 1)
      {
            if(state < 8) {Square(Show_Buf,7-state,0,7,state);GND = 0xfe<<state;}
            else
            {
                     state = 14-state;
                     Square(Show_Buf,0,0,state,state);
                     GND = 0x7f>>state;
            }
            LED16_HC595_drive(Show_Buf);
      }
      else if(folt4 == 2)
      {
            if(state < 8){Square(Show_Buf,0,0,state,state);}
            else
            {
                     state = 14-state;
                     Square(Show_Buf,7-state,0,7,state);
            }
            LED16_HC595_drive(Show_Buf);
            GND = 0x7f>>state;
      }
      else if(folt4 == 3)
      {
            if(state < 8) {Square(Show_Buf,7-state,0,7,state);GND = 0x7f>>state;}
            else
            {
                     state = 14-state;
                     Square(Show_Buf,0,0,state,state);
                     GND = 0xfe<<state;
            }
            LED16_HC595_drive(Show_Buf);;
      }
}
// ----- 縮放線正方體 ------
void CubeL(unsigned char state)
{
      unsigned char Show_Buf[8] = {0,0,0,0,0,0,0,0};
      unsigned char i = 0;
      state %= 8;
      if(state >= 4) state = 7-state;
      SquareL(Show_Buf, 3-state, 3-state, 4+state, 4+state);
      GND = 0xff;LED16_HC595_drive(Show_Buf); GND = (~((0x10<<state) | (0x08>>state)));delay(1000);GND = 0xff;
      Show_Buf[0]=Show_Buf[1]=Show_Buf[2]=Show_Buf[3]=
      Show_Buf[4]=Show_Buf[5]=Show_Buf[6]=Show_Buf[7]=0;
      SquareP(Show_Buf, 3-state, 3-state, 4+state, 4+state);
      GND = 0xff;LED16_HC595_drive(Show_Buf); GND = ( (0xf0<<state) | (0x0f>>state) );delay(1000);GND = 0xff;
}

void all_Surface(unsigned char state)// ------ 基面平移 ------
{
      if(folt4==0)Surface0(state);
      if(folt4==1)Surface2(state);
      if(folt4==2)Surface3(state);
      if(folt4==3)Surface3(state);
}
void Surface0(unsigned char state)    ////-------前后---------
{
      unsigned char Show_[8] = {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};
      state %= 14;
      GND = 0;
      if(state <= 7)
      {
                     Show_[state-1]=0;
                     Show_[state]=0xff;
                     LED16_HC595_drive(Show_);
      }
      else
      {
            Show_[14-state]=0;
            Show_[13-state]=0xff;
            LED16_HC595_drive(Show_);
      }
}

//void Surface1(unsigned char state)    ////-------上下---------上下基面平移（硬件問題，如果小燈發光不正常，請及時重啟，以免燒壞內部電路）
//{
//       unsigned char Show_[8] = {0xff,0xff,0xff,0xff,0xff,0xff,0xff,0xff};
//       state %= 14;
//       if(state < 7)Show_layer(Show_,state);
//       else Show_layer(Show_,13-state);
//}
void Surface2(unsigned char state)    ////-------左右---------
{
      unsigned char Show_[8] = {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};
      state %= 14;
      GND = 0;
      if(state <= 7)
      {
                     Show_[0] = 0x01 << state;
                     Show_[1] = 0x01 << state;
                     Show_[2] = 0x01 << state;
                     Show_[3] = 0x01 << state;
                     Show_[4] = 0x01 << state;
                     Show_[5] = 0x01 << state;
                     Show_[6] = 0x01 << state;
                     Show_[7] = 0x01 << state;
            LED16_HC595_drive(Show_);
      }
      else
      {
                     Show_[0] = 0x80 >> state-6;
                     Show_[1] = 0x80 >> state-6;
                     Show_[2] = 0x80 >> state-6;
                     Show_[3] = 0x80 >> state-6;
                     Show_[4] = 0x80 >> state-6;
                     Show_[5] = 0x80 >> state-6;
                     Show_[6] = 0x80 >> state-6;
                     Show_[7] = 0x80 >> state-6;
            LED16_HC595_drive(Show_);
      }
}

void Surface3(unsigned char state)    ////-------斜面---------
{
      unsigned char Show_[8] = {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};
      state %= 14;
      GND = 0;
      if(state < 7)
      {
            if(folt2==0)
            {
                     Show_[0] = 0x80 >> state-0;
                     Show_[1] = 0x80 >> state-1;
                     Show_[2] = 0x80 >> state-2;
                     Show_[3] = 0x80 >> state-3;
                     Show_[4] = 0x80 >> state-4;
                     Show_[5] = 0x80 >> state-5;
                     Show_[6] = 0x80 >> state-6;
                     Show_[7] = 0x80 >> state-7;
            }
            else if(folt2==1)
            {
                     Show_[0] = 0x01 << state-0;
                     Show_[1] = 0x01 << state-1;
                     Show_[2] = 0x01 << state-2;
                     Show_[3] = 0x01 << state-3;
                     Show_[4] = 0x01 << state-4;
                     Show_[5] = 0x01 << state-5;
                     Show_[6] = 0x01 << state-6;
                     Show_[7] = 0x01 << state-7;
            }

            LED16_HC595_drive(Show_);
      }
      else
      {
            if(folt2==0)
            {
                     Show_[0] = 0x01 << 6-state;
                     Show_[1] = 0x01 << 7-state;
                     Show_[2] = 0x01 << 8-state;
                     Show_[3] = 0x01 << 9-state;
                     Show_[4] = 0x01 << 10-state;
                     Show_[5] = 0x01 << 11-state;
                     Show_[6] = 0x01 << 12-state;
                     Show_[7] = 0x01 << 13-state;
            }
            else if(folt2==1)
            {
                     Show_[0] = 0x80 >> 6-state;
                     Show_[1] = 0x80 >> 7-state;
                     Show_[2] = 0x80 >> 8-state;
                     Show_[3] = 0x80 >> 9-state;
                     Show_[4] = 0x80 >> 10-state;
                     Show_[5] = 0x80 >> 11-state;
                     Show_[6] = 0x80 >> 12-state;
                     Show_[7] = 0x80 >> 13-state;
            }
            LED16_HC595_drive(Show_);
      }
}
// ----- 顯示字 -----
bit Show_word(unsigned char state)
{
      static bit floag = 0;
      state %= 28;
      if(state == 27) floag = 1;
      if(floag == 1 && state == 0) return 1;
      if(state<7)    Show_layer_T2(WordFont[0], state);
      else if(state<14) Show_layer_T2(WordFont[1],state-7);
      else if(state<21) Show_layer_T2(WordFont[2],state-14);
      else             Show_layer_T2(WordFont[3],state-21);
      return 0;
}
bit SCY521(unsigned char state)
{
      static bit floag = 0;
      state %= 21;
      if(state == 20) floag = 1;
      if(floag == 1 && state == 0){ floag = 0; return 1;}
      if(state<7)       Show_layer_T2(WordFont[4],state);
      else if(state<14)  Show_layer_T2(WordFont[5],state-7);
      else             Show_layer_T2(WordFont[6],state-14);
      return 0;
}
bit SCY521_(unsigned char state)
{
      static bit floag = 0;
      state %= 21;
      if(state == 20) floag = 1;
      if(floag == 1 && state == 0){ floag = 0; return 1;}
      if(state<7)       Show_layer_T2(WordFont[7],state);
      else if(state<14)  Show_layer_T2(WordFont[8],state-7);
      else             Show_layer_T2(WordFont[9],state-14);
      return 0;
}
//  ------ 旋轉 -------
void RotateS(unsigned char w,unsigned char state)
{
      unsigned char *p;
      state%=4;
      p = Rotate(Rotate_buf[w],state);
      Show_layer(p,7);
      GND = 0;
}
// ------- 下降上升 ------
void UPorDOWN(unsigned char *imag,unsigned char state)
{
      unsigned char showbuf[8]={0,0,0,0,0,0,0,0};
      unsigned char i,j;
      state %= 8;
      if(state>3) state = 7-state;
      for(i=state,j=0; i<8; i++,j++)
      {
            showbuf[j]=imag[ i];
      }
      Show_layer_T2(showbuf,6);
      Show_2L(Rotate_buf[3]);
}
// -- time0_init --
void Time0_Init(void)
{
      TH0 = (65535 - 50000) / 256;
      TL0 = (65535 - 50000) % 256;
      EA = 1;
      ET0 = 1;
      TR0 = 1;
}

帳號		自動登錄	找回密碼
密碼			立即注冊

久久久久久久999_99精品久久精品一区二区爱城_成人欧美一区二区三区在线播放_国产精品日本一区二区不卡视频_国产午夜视频_欧美精品在线观看免费

51單片機制作的八階流水燈

評分
