下載附件
2019-6-20 17:00 上傳
下載附件

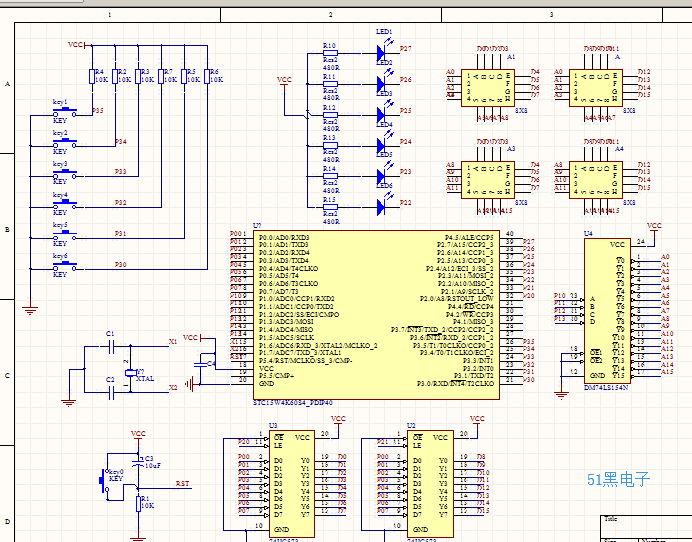

里面有程序和AD原理圖
2019-6-20 11:06 上傳
程序如下
#include <reg51.h>
#include <stdio.h>
#define uint unsigned int
#define uchar unsigned char
sbit fmq=P1^7;
sbit led1=P2^7;
sbit led2=P2^6;
sbit led3=P2^5;
sbit led4=P2^4;
sbit led5=P2^3;
sbit led6=P2^2;
sbit le1=P2^0;
sbit le2=P2^1;
sbit k1=P3^0;
sbit k2=P3^1;
sbit k3=P3^2;
sbit k4=P3^3;
sbit k5=P3^4;
sbit k6=P3^5;
uchar code a[]={
/*-- 文字: 9 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x7E,0x42,0x42,0x42,0x42,0x7E,0x40,0x40,0x40,0x40,0x40,0x40,0x7E,
/*-- 文字: 8 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x24,0x18,0x24,0x42,0x42,0x42,0x3C,0x00,0x00,
/*-- 文字: 7 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x7E,0x42,0x20,0x20,0x10,0x10,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
/*-- 文字: 6 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x18,0x24,0x02,0x02,0x3A,0x46,0x42,0x42,0x42,0x44,0x38,0x00,0x00,
/*-- 文字: 5 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x7E,0x02,0x02,0x02,0x1E,0x22,0x40,0x40,0x42,0x22,0x1C,0x00,0x00,
/*-- 文字: 4 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x20,0x30,0x30,0x28,0x24,0x24,0x22,0xFE,0x20,0x20,0xF8,0x00,0x00,
/*-- 文字: 3 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x3C,0x42,0x42,0x40,0x20,0x18,0x20,0x40,0x42,0x42,0x3C,0x00,0x00,
/*-- 文字: 2 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x40,0x20,0x10,0x08,0x04,0x42,0x7E,0x00,0x00,
/*-- 文字: 1 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=8x16 --*/
0x00,0x00,0x00,0x10,0x1C,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,
};
uchar code shang[]={
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
0x00,0x00,0x00,0x08,0x1C,0x2A,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,
};
uchar code xia[]={
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x49,0x2A,0x1C,0x08,0x00,
};
uchar code hz[]={
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
/*-- 文字: 中 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0xFC,0x1F,0x84,0x10,0x84,0x10,0x84,0x10,
0x84,0x10,0x84,0x10,0xFC,0x1F,0x84,0x10,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,
/*-- 文字: 北 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x22,0x20,0x12,0x3E,0x0A,0x20,0x06,0x20,0x02,
0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x42,0x38,0x42,0x27,0x42,0x22,0x7C,0x20,0x00,
/*-- 文字: 大 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0xFF,0x7F,0x80,0x00,0x80,0x00,
0x40,0x01,0x40,0x01,0x20,0x02,0x20,0x02,0x10,0x04,0x08,0x08,0x04,0x10,0x03,0x60,
/*-- 文字: 學 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x44,0x10,0x88,0x10,0x88,0x08,0x00,0x04,0xFE,0x7F,0x02,0x40,0x01,0x20,0xF8,0x07,
0x00,0x02,0x80,0x01,0xFF,0x7F,0x80,0x00,0x80,0x00,0x80,0x00,0xA0,0x00,0x40,0x00,
/*-- 文字: 歡 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x00,0x01,0x00,0x01,0x3F,0x01,0x20,0x3F,0xA0,0x20,0x92,0x10,0x54,0x02,0x28,0x02,
0x08,0x02,0x14,0x05,0x24,0x05,0xA2,0x08,0x81,0x08,0x40,0x10,0x20,0x20,0x10,0x40,
/*-- 文字: 迎 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x00,0x00,0x04,0x01,0xC8,0x3C,0x48,0x24,0x40,0x24,0x40,0x24,0x4F,0x24,0x48,0x24,
0x48,0x24,0x48,0x2D,0xC8,0x14,0x48,0x04,0x08,0x04,0x14,0x04,0xE2,0x7F,0x00,0x00,
/*-- 文字: 您 --*/
/*-- 宋體12; 此字體下對應的點陣為：寬x高=16x16 --*/
0x90,0x00,0x90,0x00,0x88,0x3F,0x4C,0x20,0x2A,0x12,0x99,0x0A,0x88,0x12,0x48,0x22,
0x28,0x22,0x88,0x02,0x08,0x01,0x40,0x00,0x8A,0x20,0x8A,0x48,0x09,0x48,0xF0,0x0F,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};
uchar s,s1,s2,s3,s4,s5,s6,fla,num,fla1,fla2,fla3,s88;
uchar l1,l2,l3,l4,l5,l6;
uchar j,k;
void delay(uint x)
{
uchar i,k;
for(i=0;i<110;i++)
for(k=0;k<x;k++);
}
void initt0()
{
EA=1;
ET0=1;
TMOD=0x01;
TH0=(65535-50000)/256;
TL0=(65535-50000)%256;
TR0=1;
}
uchar key(void)
{
uchar k;
if(k1==0)
{
delay(2);
if(k1==0)
{
k=1;
while(k1==0);
}
}
if(k2==0)
{
delay(2);
if(k2==0)
{
k=2;
while(k2==0);
}
}
if(k3==0)
{
delay(2);
if(k3==0)
{
k=3;
while(k3==0);
}
}
if(k4==0)
{
delay(2);
if(k4==0)
{
k=4;
while(k4==0);
}
}
if(k5==0)
{
delay(2);
if(k5==0)
{
k=5;
while(k5==0);
}
}
if(k6==0)
{
delay(2);
if(k6==0)
{
k=6;
while(k6==0);
}
}
return k;
}
void main(void)
{
uchar t,b;
initt0();
s1=128;
num=128;
s2=48;
while (1)
{
b=key();
switch(b)
{
case 1: num=128; break;//1
case 2: num=112; break;//2上
case 3: num=96; break;//3上
case 4: num=80; break;//4上
case 5: num=64; break;//5上
case 6: num=48; break;//6
}
switch(s1)
{
case 128 :led1=0;led2=1;led3=1;led4=1;led5=1;led6=1; s88=8; break;
case 112: led1=1;led2=0;led3=1;led4=1;led5=1;led6=1;s88=7; break;
case 96: led1=1;led2=1;led3=0;led4=1;led5=1;led6=1;s88=6; break;
case 80: led1=1;led2=1;led3=1;led4=0;led5=1;led6=1;s88=5; break;
case 64: led1=1;led2=1;led3=1;led4=1;led5=0;led6=1;s88=4; break;
case 48: led1=1;led2=1;led3=1;led4=1;led5=1;led6=0;s88=3; break;
}
if(fla2==0)
{
for(t=0;t<16;t++)
{
P0=a[t+s88*16];
le2=1;
le2=0;
if(fla==1)
{
P0=shang[t+s2];
le1=1;
le1=0;
}
if(fla==2)
{
P0=xia[t+s2];
le1=1;
le1=0;
}
P1=t;
delay(1);
P0=0x00;
le2=1;
le1=1;
le2=0;
le1=0;
}
}
else if(fla2==1)
{
for(t=0;t<16;t++)
{
P0=hz[t*2+s6*2];
le1=1;
le1=0;
P0=hz[t*2+1+s6*2];
le2=1;
le2=0;
P1=t;
delay(1);
P0=0x00;
le2=1;
le1=1;
le2=0;
le1=0;
}
}
}
}
void t0() interrupt 1
{
TH0=(65535-50000)/256;
TL0=(65535-50000)%256;
s++;
if(fla3==1)
{
k=0;
}
if(num==s1&&num!=128)
{
s3++;
if(s3==200)
{
fla3=1;
}
}
else
{
s3=0;
fla3=0;
}
if(s1==128)
{
s4++;
if(s4==30)
{
fla2=1;
}
}
else
{
s4=0;
fla2=0;
}
if(fla2==1)
{
s5++;
if(s5==1)
{
s5=0;
s6++;
if(s6==128)
s6=0;
}
}
else
s6=0;
if(s==2)
{
s=0;
fla=0;
if(s1<num)
{
fla=2;
s1++;
s2--;
}
if(s1>num)
{
fla=1;
s1--;
s2++;
}
}
}
全部資料51hei下載地址：
模擬電梯原理圖.7z
(29.02 KB, 下載次數: 28)
2019-6-20 17:01 上傳
點擊文件名下載附件
下載積分: 黑幣 -5
|
