瑞薩單片機計步器設計附原理圖+PCB源文件+程序代碼+BOM清單

ID:529864 · 發表于 2019-5-7 19:24

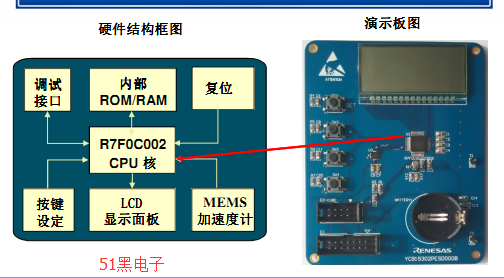

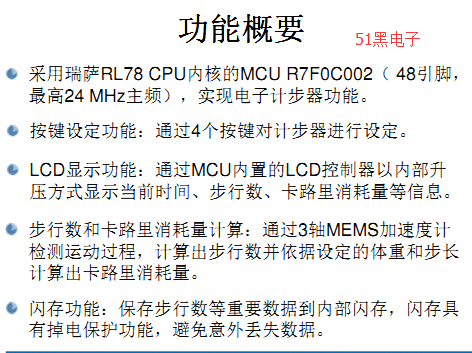

分享瑞薩單片機計步器設計，包含程序及原理圖

單片機源程序如下:

/***********************************************************************************************************************
* File Name : r_main.c
* Version : V1.00
* Device(s) : R7F0C002G2DFB
* Tool-Chain : CA78K0R
* Description : This file implements main function.
***********************************************************************************************************************/
/***********************************************************************************************************************
* History : DD.MM.YYYY Version Description
* : 31.03.2015 1.00 First Release
***********************************************************************************************************************/
/***********************************************************************************************************************
Includes <System Includes> , <Project Includes>
***********************************************************************************************************************/
#include "r_macrodriver.h"
#include "r_cgc.h"
#include "r_port.h"
#include "string.h"
#include "r_lcd.h"
#include "r_rtc.h"
#include "r_timer.h"
#include "r_userdefine.h"
#include "r_Communication.h"
#include "r_ADXL362.h"
#include "pfdl.h"
#include "pfdl_types.h"
/***********************************************************************************************************************
Global variables and functions
***********************************************************************************************************************/
static uint16_t g_FontData[LCD_NUM_DATA_FONT_COUNT] = { LCD_DATA_0, LCD_DATA_1, LCD_DATA_2, LCD_DATA_3, LCD_DATA_4,
LCD_DATA_5, LCD_DATA_6, LCD_DATA_7, LCD_DATA_8, LCD_DATA_9,
LCD_DATA_NONE, LCD_DATA_COLON };
static uint8_t g_WatchStatus;
static uint8_t g_WeightStatus;
static uint8_t g_Hour;
static uint8_t g_Minute;
uint8_t g_Weight = 0x40U;
uint8_t g_Length = 0x70U;
uint16_t g_Step;
uint16_t g_Step_last;
uint8_t Count_flag = 0U;
uint8_t g_Step_temp1[2] = {0x00,0x00};
uint8_t g_Step_temp2[2] = {0x00,0x00};
uint16_t g_Calorie;
uint8_t set_flag = 0U;
uint8_t step1_flag = 0U;
uint8_t step2_flag = 0U;
uint8_t switch_status = 0U;
uint8_t status = 0U;
short xAxis = 0U;
short yAxis = 0U;
short zAxis = 0U;
float temperature = 0U;
pfdl_u16 StartAddrIndex = 0U;
#define FALSE 0
#define TRUE 1
#define BLOCKBYTES 1024
void R_MAIN_UserInit(void);
pfdl_u08 Write_DataFlash(void);
pfdl_u08 Read_DataFlash(void);
pfdl_u08 Erase_DataFlash(pfdl_u16 block);
/***********************************************************************************************************************
* Function Name: main
* Description : This function implements main function.
* Arguments : None
* Return Value : None
***********************************************************************************************************************/
void main(void)
{
uint8_t set_count = 0U;
uint8_t count = 0U;
rtc_counter_value_t time_data;
g_Hour = 0x00U;
g_Minute = 0x00U;
R_MAIN_UserInit();
Read_DataFlash();
g_Step_last = (((short)g_Step_temp2[1] << 8) + g_Step_temp2[0]);
if(0xFFFFU == g_Step_last)
g_Step_last = 0U;
while(1U)
{
switch_status = R_MAIN_Get_SwitchStatus();
if((0x23U == HOUR) && (0x59U == MIN) && (0x59U == SEC)&& (1U == RIFG))
{
DI();
RIFG = 0U;
g_Step_temp1[0] = (uint8_t)(g_Step & 0x00ff);
g_Step_temp1[1] = (uint8_t)((g_Step >> 8) & 0x00ff);
Write_DataFlash();
g_Step = 0U;
g_Calorie = 0U;
Read_DataFlash();
g_Step_last = (((short)g_Step_temp2[1] << 8) + g_Step_temp2[0]);
EI();
}
if(0U == set_flag)
{
switch(count)
{
case 0:
{
R_RTC_Get_CounterValue(&time_data);
g_Hour = time_data.hour;
g_Minute = time_data.min;
/* ---- Time displays on LCD ---- */
R_MAIN_LcdDisplayNormal();
}
break;
case 1:
{
/* ---- Steps displays on LCD ---- */
R_MAIN_LcdStepDisplayNormal();
}
break;
case 2:
{
/* ---- Carlorie displays on LCD ---- */
R_MAIN_LcdCalorieDisplayNormal();
}
break;
case 3:
{
/* ---- Last Steps displays on LCD ---- */
R_MAIN_LcdLastStepDisplayNormal();
}
break;
default:
break;
}
if(switch_status == TRANS_SWITCH_ON)
{
count++;
if(4U == count)
count = 0U;
}
}
else if(1U == set_flag)
{
switch(set_count)
{
case 0 :
{
R_MAIN_LcdHourBlink();
if(UP_SWITCH_ON == switch_status)
{
g_Hour = adbcdb(g_Hour, 1U);
/* ---- When hour data is 0x24 ---- */
if (0x24U == g_Hour)
{
g_Hour = 0x00U;
}
time_data.hour = g_Hour;
R_RTC_Set_CounterValue(time_data);
}
else if(DOWN_SWITCH_ON == switch_status)
{
g_Hour = sbbcdb(g_Hour, 1U);
if (0x99U == g_Hour)
{
g_Hour = 0x23U;
}
time_data.hour = g_Hour;
R_RTC_Set_CounterValue(time_data);
}
}
break;
case 1 :
{
R_MAIN_LcdMinuteBlink();
if(UP_SWITCH_ON == switch_status)
{
g_Minute = adbcdb(g_Minute, 1U);
/* ---- When hour data is 0x24 ---- */
if (0x60U == g_Minute)
{
g_Minute = 0x00U;
}
time_data.min = g_Minute;
R_RTC_Set_CounterValue(time_data);
}
else if(DOWN_SWITCH_ON == switch_status)
{
g_Minute = sbbcdb(g_Minute, 1U);
/* ---- When hour data is 0x24 ---- */
if (0x99U == g_Minute)
{
g_Minute = 0x59U;
}
time_data.min = g_Minute;
R_RTC_Set_CounterValue(time_data);
}
}
break;
case 2 :
{
R_MAIN_LcdWeightBlink();
if(UP_SWITCH_ON == switch_status)
{
g_Weight = adbcdb(g_Weight, 1U);
/* ---- When hour data is 0x24 ---- */
if (0x9AU == g_Weight)
{
g_Weight = 0x00U;
}
}
else if(DOWN_SWITCH_ON == switch_status)
{
/* ---- When hour data is 0x24 ---- */
if (0x00U == g_Weight)
{
g_Weight = 0x9AU;
}
g_Weight = sbbcdb(g_Weight, 1U);
}
}
break;
case 3 :
{
R_MAIN_LcdLengthBlink();
if(UP_SWITCH_ON == switch_status)
{
g_Length = adbcdb(g_Length, 1U);
/* ---- When hour data is 0x24 ---- */
if (0x9AU == g_Length)
{
g_Length = 0x00U;
}
}
else if(DOWN_SWITCH_ON == switch_status)
{
/* ---- When hour data is 0x24 ---- */
if (0x00U == g_Length)
{
g_Length = 0x9AU;
}
g_Length = sbbcdb(g_Length, 1U);
}
}
break;
default:
break;
}
if(TRANS_SWITCH_ON == switch_status)
{
set_count++;
if(4U == set_count)
{
set_count = 0U;
set_flag = 0U;
}
}
}
}
}
/***********************************************************************************************************************
End of function main
***********************************************************************************************************************/
/***********************************************************************************************************************
* Function Name: R_MAIN_UserInit
* Description : This function adds user code before implementing main function.
* Arguments : None
* Return Value : None
***********************************************************************************************************************/
void R_MAIN_UserInit(void)
{
EI();
R_LCD_Start();
/* ---- Initialize display ---- */
memset(LCD_POSITION_MINUTE_LOW, LCD_DATA_NONE, 9U);
g_WatchStatus = WATCH_DISPLAY;
R_RTC_Set_ConstPeriodInterruptOn(ONESEC);
R_RTC_Start();
R_TAU0_Channel0_Start();
R_TAU0_Channel1_Start();
/* Init device ADXL362. */
ADXL362_Init();
/* Put the device in standby mode. */
ADXL362_SetPowerMode(0U);
/* Set accelerometer's output data rate to: 12.5 Hz. */
ADXL362_SetOutputRate(ADXL362_ODR_12_5_HZ);
/* Setup the activity and inactivity detection. */
ADXL362_SetRegisterValue(
ADXL362_ACT_INACT_CTL_LINKLOOP(ADXL362_MODE_LINK),
ADXL362_REG_ACT_INACT_CTL,
1U);
ADXL362_SetupActivityDetection(1U, 30U, 1U);
ADXL362_SetupInactivityDetection(1U, 700U, 25U);
/* Start the measurement process. */
ADXL362_SetPowerMode(1U);
/* Clear ACT and INACT bits by reading the Status Register. */
ADXL362_GetRegisterValue(&status,
ADXL362_REG_STATUS,
1U);
}
/***********************************************************************************************************************
End of function R_MAIN_UserInit
***********************************************************************************************************************/
/***********************************************************************************************************************
* Function Name: R_MAIN_GetSwitchStatus
* Description : This function get switch status.
* Arguments : None
* Return Value : switch_status -The kind of pushed switch
***********************************************************************************************************************/
uint8_t R_MAIN_Get_SwitchStatus(void)
{
uint8_t set_switch;
uint8_t up_switch;
uint8_t down_switch;
uint8_t trans_switch;
uint8_t switch_status = SWITCH_ALL_OFF;
set_switch = P2.1;
up_switch = P2.0;
down_switch = P14.4;
trans_switch = P14.3;
/* ---- Set switch status ---- */
if ((0U == set_switch) && (1U == up_switch) && (1U == down_switch) && (1U == trans_switch))
{
R_MAIN_Delay1ms(10U);
set_switch = P2.1;
up_switch = P2.0;
down_switch = P14.4;
trans_switch = P14.3;
if((0U == set_switch) && (1U == up_switch) && (1U == down_switch) && (1U == trans_switch))
{
while(0U == set_switch)
{
set_switch = P2.1;
set_flag = 1U;
}
switch_status = SET_SWITCH_ON;
}
}
else if ((1U == set_switch) && (0U == up_switch) && (1U == down_switch) && (1U == trans_switch))
{
R_MAIN_Delay1ms(10U);
set_switch = P2.1;
up_switch = P2.0;
down_switch = P14.4;
trans_switch = P14.3;
if((1U == set_switch) && (0U == up_switch) && (1U == down_switch) && (1U == trans_switch))
{
while(0U == up_switch)
{
up_switch = P2.0;
}
switch_status = UP_SWITCH_ON;
}
}
else if ((1U == set_switch) && (1U == up_switch) && (0U == down_switch) && (1U == trans_switch))
{
R_MAIN_Delay1ms(10U);
set_switch = P2.1;
up_switch = P2.0;
down_switch = P14.4;
trans_switch = P14.3;
if((1U == set_switch) && (1U == up_switch) && (0U == down_switch) && (1U == trans_switch))
{
while(0U == down_switch)
{
down_switch = P14.4;
}
switch_status = DOWN_SWITCH_ON;
}
}
else if ((1U == set_switch) && (1U == up_switch) && (1U == down_switch) && (0U == trans_switch))
{
R_MAIN_Delay1ms(10U);
set_switch = P2.1;
up_switch = P2.0;
down_switch = P14.4;
trans_switch = P14.3;
if((1U == set_switch) && (1U == up_switch) && (1U == down_switch) && (0U == trans_switch))
{
while(0U == trans_switch)
{
trans_switch = P14.3;
}
switch_status = TRANS_SWITCH_ON;
}
}
else
{
/* Do Nothing */
}
return (switch_status);
}
/***********************************************************************************************************************
End of function R_MAIN_GetSwitchStatus
***********************************************************************************************************************/
/***********************************************************************************************************************
* Function Name: R_MAIN_LcdHourBlink
* Description : This function hour blink data setup.
* Arguments : None
* Return Value : None
***********************************************************************************************************************/
void R_MAIN_LcdHourBlink(void)
……………………
…………限于本文篇幅余下代碼請從51黑下載附件…………
