單片機8*8點陣，求大神指點實物要怎么實現

ID:254815 · 發表于 2019-5-7 15:49

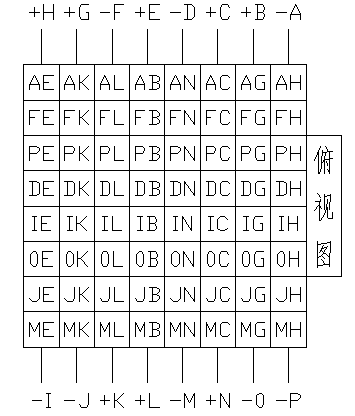

圖1為1588AS-8*8引腳俯視圖，以及正負極，圖二為仿真圖，忽略液晶屏，只做點陣這塊，圖三為按照自己感覺自己接的，沒能實現。如能幫助希望求加好友。QQ：1519810852
以下為程序#include <reg52.h>

//此表為 LED 的字模, 共陰數碼管 0-9  -
unsigned char code Disp_Tab[] = {0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f,0x40};  //段碼控制

//此表為8個數碼管位選控制, 共陰數碼管 1-8個  -
unsigned char code dispbit[8]={0xfe,0xfd,0xfb,0xf7,0xef,0xdF,0xbF,0x7F}; //位選控制查表的方法控制

unsigned char led_buffer0[8]={0x01,0x03,0x07,0x0f,0x1f,0x3f,0x7f,0xff};

unsigned char code led_buffer[]={
/*--  調入了一幅圖像：C:\Users\Administrator\Pictures\numb.bmp  --*/
/*--  寬度x高度=80x8  --*/
0x0,0x0,0x0,0x0,0x0,0x0,0x0,0x0,
0x0,0x24,0x14,0xC,0xFF,0xC,0x14,0x24,
0x24,0x14,0xC,0xFF,0xC,0x14,0x24,0x0,
0x88,0x7F,0x9,0xF,0xF,0x49,0xFF,0x8,
0x0,0x0,0x0,0x4,0xBC,0x46,0xBD,0x4,
0x80,0x40,0x3F,0x85,0x75,0xA5,0x95,0x47,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};
unsigned char disp_count=0,numb=0;
unsigned char hour=23,min=45,sec=58;
unsigned int count=0;
bit flash=0;

void delay(long dly)
{
