STM32 FSMC方式驅動ILI9488 3.5寸480*320TFT液晶 keil工程源碼

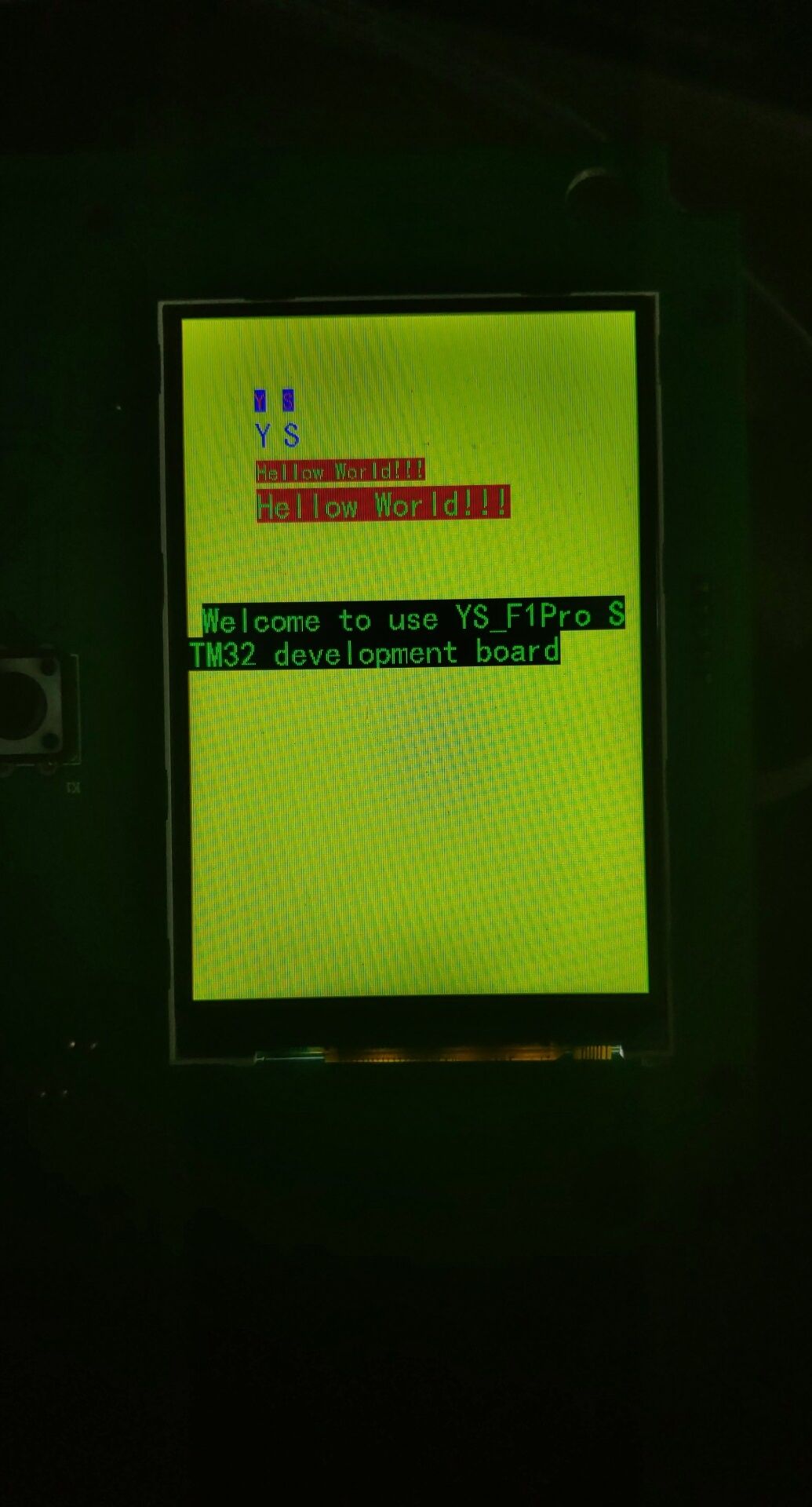

制作出來的實物圖如下：
測試效果
工程很簡潔
STM32單片機源程序如下:
- #include "main.h"
- /*--------------------------------------------------------------------------
- //主函數-程序入口
- --------------------------------------------------------------------------*/
- int main()
- {
- BSP_LCD_Init();
- LCD_Clear(0,0,LCD_DEFAULT_WIDTH,LCD_DEFAULT_HEIGTH,YELLOW);
- LCD_BK_ON();
- delay_ms(1000);
-
- /* 顯示英文字符 */
- LCD_DispChar_EN(50,50,'Y',BLUE,RED,USB_FONT_16);
- LCD_DispChar_EN(70,50,'S',BLUE,RED,USB_FONT_16);
- LCD_DispChar_EN(50,70,'Y',YELLOW,BLUE,USB_FONT_24);
- LCD_DispChar_EN(70,70,'S',YELLOW,BLUE,USB_FONT_24);
-
- /* 顯示英文字符串 */
- LCD_DispString_EN(50,100,"Hellow World!!!",RED,GREEN,USB_FONT_16);
- LCD_DispString_EN(50,120,"Hellow World!!!",RED,GREEN,USB_FONT_24);
- LCD_DispString_EN(50,120,"Hellow World!!!",RED,GREEN,USB_FONT_24);
- LCD_DispString_EN(10,200,"Welcome to use YS_F1Pro STM32 development board",BLACK,GREEN,USB_FONT_24);
- while(1)
- {
- }
- }
所有資料51hei提供下載:
ILI9488液晶驅動.rar
(301.26 KB, 下載次數: 792)
2018-12-27 20:24 上傳
