基于51單片機的簡易電子琴源碼

ID:376360 · 發表于 2018-12-7 21:36

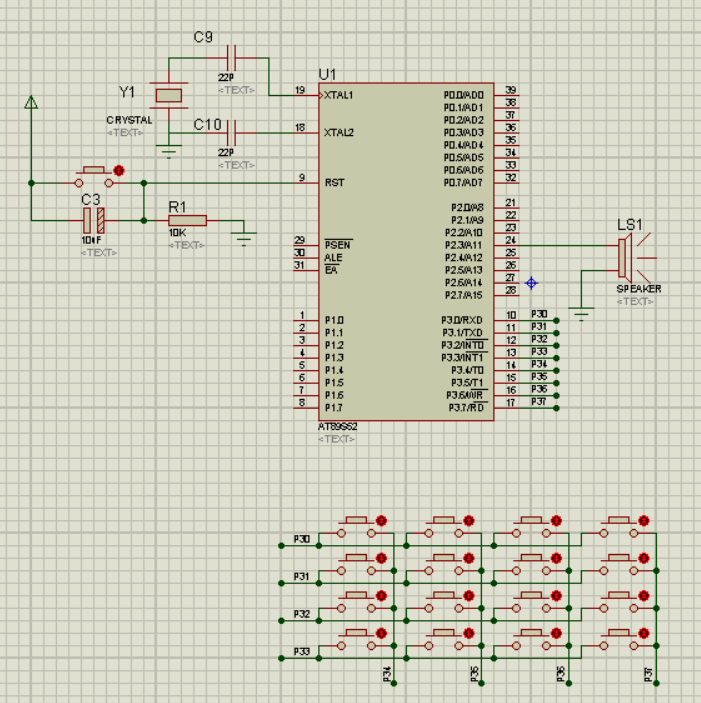

用到了數碼管顯示，矩陣鍵盤，蜂鳴器，適合新接觸51的朋友們，只是程序，一看就明白

c語言程序

單片機源程序如下:

/*********************************************************************************************
程序名：　　 8鍵電子琴C程序
編寫人：　　杜洋　
編寫時間：　　2009年5月18日
硬件支持：　　STC系列單片機 12MHz
接口說明：　　
修改日志：　　
　　NO.1-
/*********************************************************************************************
說明：
/*********************************************************************************************/
#include <at89x52.h>
#define uchar unsigned char
#define KEY P3
#define LED P1
sbit dula=P2^6; //段選信號的鎖存器控制
sbit wela=P2^7; //位選信號的鎖存器控制
sbit SPEAKER = P2^3;
bit flag; //標志音樂輸出腳電平的高低
uchar ptr = 0x00; //取音符
uchar high; //計數器高位
uchar low; //計數器低位
unsigned char KeyValue;
unsigned char KeyValue2;
unsigned char STH0;
unsigned char STL0;
unsigned char i;
unsigned char lednum=0;
/*unsigned int code tab[]={
64021,64103,64260,64400,//低音3開始
64524,64580,64684,64777,
64820,64898,64968,65030,
65058,65110,65157,65178
}; */
unsigned int code tab[]={
/*10000,64103,64260,64400,//低音3開始 */
64580,64633,64684,64732,
64777,64820,64860,64898,
64934,64968,64994,65030
};
unsigned int code music[] ={
4 ,6 ,8, 9 ,11,13,15
};
unsigned char code music2[] = {
// 1 _ 1_ 1 .5
0xFC,0x44,0x7F, 0xFC,0x44,0x7F, 0xFC,0x44,0xFF, 0xFA,0x68,0xFF,
// 3 _ 3_ 3 1
0xFD,0x23,0x7F, 0xFD,0x23,0x7F, 0xFD,0x23,0xFF, 0xFC,0x44,0xFF,
// 1_ 3_ 5 5
0xFC,0x44,0x7F, 0xFD,0x23,0x7F, 0xFD,0x82,0xFF, 0xFD,0x82,0xFF,
// 4_ 3_ 2 -
0xFD,0x23,0x7F, 0xFD,0x23,0x7F, 0xFC,0xAC,0xFF, 0xFF,0xFF,0xFF,
// 2_ 3_ 4 4
0xFC,0xAC,0x7F, 0xFD,0x23,0x7F, 0xFD,0x34,0xFF, 0xFD,0x34,0xFF,
// 3_ 2_ 3 1
0xFD,0x23,0x7F, 0xFC,0xAC,0x7F, 0xFD,0x23,0xFF, 0xFC,0x44,0xFF,
// 1_ 3_ 2 .5
0xFC,0x44,0x7F, 0xFD,0x23,0x7F, 0xFC,0xAC,0xFF, 0xFA,0x68,0xFF,
// .7_ 2_ 1 -
0xFC,0x0C,0x7F, 0xFC,0xAC,0x7F, 0xFC,0x44,0xFF, 0xFF,0xFF,0xFF,
0x00//結束
};
unsigned char code music_num[] ={
1,20,1,20,1,1,5,5,
3,20,3,20,3,3,1,1,
1,20,3,20,5,5,5,5,
4,20,3,20,2,19,2,19,
2,20,3,20,4,4,4,4,
3,20,2,20,3,3,1,1,
1,20,3,20,2,2,5,5,
7,20,2,20,1,19,1,19} ;
unsigned int code key_num[] ={1,1,2,2,3,4,4,5,5,6,6,7
} ;
unsigned int code key2_num[] ={0,16,1,16,2,3,16,4,16,5,16,6
} ;
/*unsigned int code twotiger[] ={
1,2,3,1,1,2,3,1,3,4,5,5,3,4,5,5,5,6,5,4,3,3,1,1,5,6,
5,4,3,3,1,1,2,2,5,5,1,1,0,0,2,2,5,5,1,1,0,0 };
unsigned int code twotiger2[] = {
1,1,5,5,6,6,5,5,4,4,3,3,2,2,1,1 ,5 ,5,4,4,3,3,2,2,5
,5,4,4,3,3,2,2,1,1,5,5,6,6,5,5,4,4,3,3,2,2,1,1
}; */
unsigned char code num[]={0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,
0x07,0x7f,0x6f,0x77,0x7c,0x39,0x5e,0x79,0x71,
0x00,0x76,0x40,0x40,0x08};
//0-F,,,19,,20的碼表
unsigned char code numb[]={0xfe,0xfd,0xfb,0xf7,0xef,0xdf,0xbf,0x7f};
unsigned char i3; //0-7數碼管
void Init(void); //初始化函數
void DelayMs(unsigned int time); //毫秒級延時函數
/*void Delay (unsigned int a);*/
void newmusic(void);
void keyy(void);
void led8(void);
void main(void){
TMOD=0x01;
ET0=1;
EA=1;
KEY = 0xf0;
LED=0xff;
while(1){
KeyValue=15;
if(KEY != 0xf0){
DelayMs(10);//?óê±10ms??DD????
if(KEY!=0xf0)//?ù′??ì2a?ü?ìê?·?°′??
{
KEY=0X0F;
switch(KEY)
{
case(0X0e): KeyValue=0;LED=0xfe;break;
case(0X0d): KeyValue=1;LED=0xfd;break;
case(0X0b): KeyValue=2;LED=0xfb;break;
case(0X07): KeyValue=3;LED=0xf7;break;
}
//2aê?DD
KEY=0XF0;
switch(KEY)
{
case(0Xe0): KeyValue=KeyValue;break;
case(0Xd0): KeyValue=KeyValue+4;break;
case(0Xb0): KeyValue=KeyValue+8;break;
case(0X70): KeyValue=KeyValue+12;break;
}
} }
if( KeyValue<12){
high=tab[KeyValue]/256;
low=tab[KeyValue]%256;
TR0=1;
led8();
}
else if(KeyValue==12)
{KeyValue=0;
while(KeyValue!=12){
keyy();
if (KeyValue2==15){KeyValue=0;break;}
else if (KeyValue2==0){break;}
high=tab[KeyValue]/256;
low=tab[KeyValue]%256;
TR0=1;
DelayMs(160);
led8();
SPEAKER = 1;
TR0=0;
DelayMs(600);
KeyValue++;
}} //按鍵1遍歷12個音
else if(KeyValue==13)
{i=0 ;
while(i!=7){
keyy();
if (KeyValue2==15){i=0;break;}
else if (KeyValue2==0){break;}
KeyValue=music[i]-4 ;
high=tab[KeyValue]/256;
low=tab[KeyValue]%256;
TR0=1;
DelayMs(160);
led8();
SPEAKER = 1;
TR0=0;
DelayMs(600);
i++;
}}//按鍵0遍歷7個音
else if(KeyValue==14)
{
newmusic();
}//按鍵3播放音樂
else{
SPEAKER = 1; //按鍵4復位
TR0=0;}
}
}
/*void t0(void) interrupt 1 using 0{
TH0=STH0;
TL0=STL0;
SPEAKER=~SPEAKER;
} */
/*********************************************************************************
* 名稱：Count1(void) interrupt 1
* 功能：設置計時器0 溢出中斷,每中斷一次改變P2_3 引腳電平
*********************************************************************************/
void Count1(void) interrupt 1
{
TH0 = high;
TL0 = low;
if (flag == 0) //改變P2_3 引腳電平
{
SPEAKER = 0;
flag = 1;
}
else
{
SPEAKER = 1;
flag = 0;
}
}
/*************************************************************
* 杜洋工作室 DoYoung Studio
* 與電子愛好者同行 www.DoYoung.net
音樂播放
/*************************************************************/
void newmusic()
{
uchar time;
Init();
TH0 = high;
TL0 = low;
while (1)
{
if (music2[ptr] != 0xFF && music2[ptr] != 0x00)//判斷是否是正常音符
{ keyy();
if (KeyValue2==15){ptr=0;break;}
else if (KeyValue2==0){break;}
TR0 = 0;
SPEAKER = 1;
DelayMs(10); //間歇
TR0 = 1;
high = music2[ptr]; //取設置頻率數值的高8 位
low = music2[ptr + 1]; //取設置頻率數值的低8 位
time = music2[ptr + 2]; //取發聲時間
for(i3=0;i3<40;i3++){
P0=num[music_num[lednum]];
dula=1;
dula=0;
P0=numb[0]; //選中第一個數碼管
wela=1;
wela=0;
DelayMs(1);
P0=num[music_num[lednum+1]];
dula=1;
dula=0;
P0=numb[1]; //選中第2個數碼管
wela=1;
wela=0;
DelayMs(1);
}
P0=num[16]; //什么都不顯示的代碼
dula=1;
dula=0;
DelayMs(time);
ptr += 3;
lednum+=2;
}
else if (music2[ptr] == 0xFF) //判斷是否是休止符
{
time = music2[ptr + 2];
DelayMs(time);
ptr += 3;
lednum+=2;
}
else //結束符,停止2 秒后繼續
{
TR0 = 0;
SPEAKER = 1;
DelayMs(1000);
ptr = 0;
lednum=0;
}
}
}
/*******************************************
ms延時*/
void DelayMs(unsigned int time)
{
unsigned int i;
unsigned int j;
for (j =0; j < time; j++) //每個循環約 3ms
{
for (i =0; i < 363; i++)
{;}
}
}
/***************************************延時
***************************************/
/*void Delay (unsigned int a){ //需要輸入變量值0~65535
unsigned int i;
while( --a != 0){ //i 從0加到600，CPU大概就耗時1毫秒
for(i = 0; i < 87; i++); //空指令循環
}
}*/
/*******************************/
void Init()
{
TMOD = 0x01; //定時器0 處于計時方式,16 位
EA = 1;
ET0 = 1; //定時器0 溢出中斷
}
/*******************************/
void keyy()
{
KEY = 0xf0;
if(KEY != 0xf0){
DelayMs(10);//?óê±10ms??DD????
if(KEY!=0xf0)//?ù′??ì2a?ü?ìê?·?°′??
{ KEY=0X0F;
switch(KEY)
{
case(0X0e): KeyValue2=0;break;
case(0X0d): KeyValue2=1;break;
case(0X0b): KeyValue2=2;break;
case(0X07): KeyValue2=3;break;
}
//2aê?DD
KEY=0XF0;
switch(KEY)
{
case(0Xe0): KeyValue2=KeyValue2;break;
case(0Xd0): KeyValue2=KeyValue2+4;break;
case(0Xb0): KeyValue2=KeyValue2+8;break;
case(0X70): KeyValue2=KeyValue2+12;break;
}
} }
}
/*******************************************************/
void led8() { for(i3=0;i3<50;i3++){
P0=num[key_num[KeyValue]];
dula=1;
dula=0;
P0=numb[0]; //選中第一個數碼管
wela=1;
wela=0;
DelayMs(1);
P0=num[key2_num[KeyValue]+1];
dula=1;
dula=0;
P0=numb[1]; //選中第2個數碼管
wela=1;
wela=0;
DelayMs(1);
}
P0=num[16]; //什么都不顯示的代碼
dula=1;
dula=0;
}
