LED_0 EQU 30H
LED_1 EQU 31H
LED_2 EQU 32H
ADC EQU 35H
CLOCK BIT P2.4
ST BIT P2.5
EOC BIT P2.6
OE BIT P2.7
   ORG 00H
   SJMP START
   ORG 0BH
   LJMP INT_T0
START: MOV LED_0, #00H
       MOV LED_1, #00H
       MOV LED_2, #00H
       MOV DPTR, #TABLE
       MOV TMOD, #02H
       MOV TH0, #4CH
       MOV TL0, #00H
       MOV IE, #82H
       SETB TR0
WAIT: CLR ST
      SETB ST
      CLR ST
      JNB EOC, $
      SETB OE
      MOV ADC, P1
      CLR OE
      MOV A,ADC
      MOV B,#100
      DIV AB
      MOV LED_2, A
      MOV A, B
      MOV B, #10
      DIV AB
      MOV LED_1, A
      MOV LED_0, B
      LCALL DISP
      SJMP WAIT
INT_T0: CPL  CLOCK
      RETI
DISP: MOV A, LED_0
      MOVC A, @A+DPTR
      CLR P2.3
      MOV P0, A
      LCALL DELAY
      SETB P2.3
      MOV A, LED_1
      MOVC A,@A+DPTR
      CLR P2.2
      MOV P0, A
      LCALL DELAY
      SETB P2.2
      MOV A, LED_2
      MOVC A, @A+DPTR
      CLR P2.1
      MOV P0, A
      LCALL DELAY
      SETB P2.1
      RET
DELAY: MOV R6, #10
D1:    MOV R7, #250
      DJNZ R7, $
      DJNZ R6, D1
      RET
TABLE: DB 3FH, 06H, 5BH, 4FH, 66H
       DB 6DH, 7DH, 07H, 7FH, 6FH
       DB 40H
      END

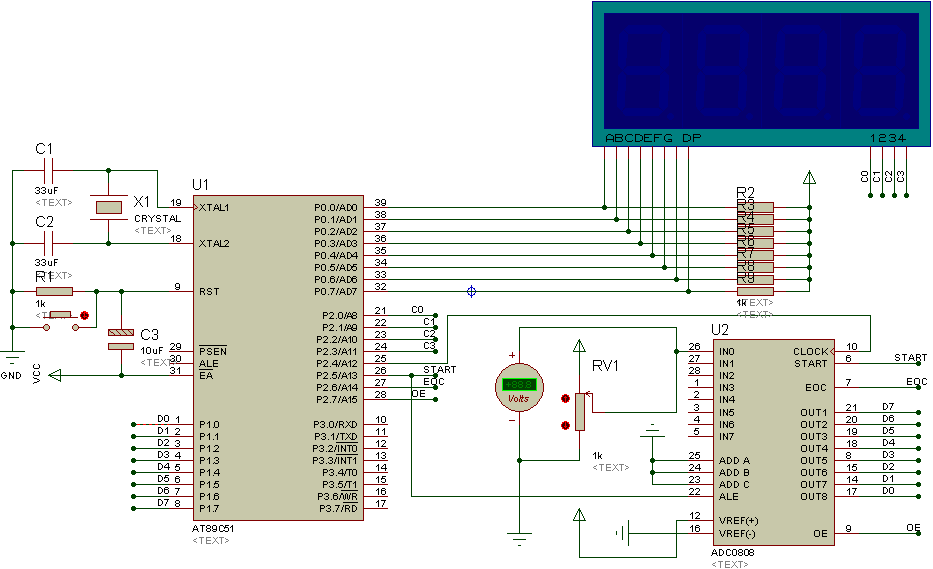

這是硬件圖跟程序代碼。。求大神指導，為什么運行之后是亂碼。。。


下載附件

2012-3-23 17:51 上傳
