數控烙鐵單片機程序求指點燒錄后數碼管是全顯

ID:348282 · 發表于 2018-10-10 21:01

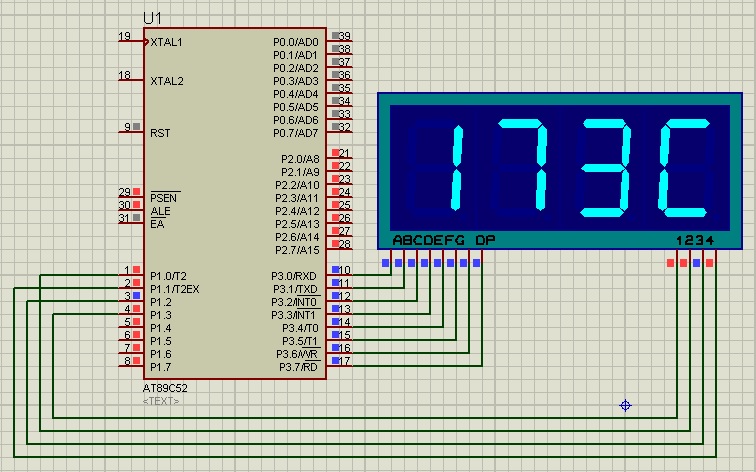

自學單片機有一段時間了，做了款數控烙鐵程序，其中大部份程序我先屏蔽，先搞顯示正常，發現燒錄后數碼管是全顯，顯示不正常不是讀取AD的數值，用K型熱電偶作探頭經放大100倍送AD轉換，DC5V/2A供電，請大神們指點下。程序如下：

#include"STC15.h"
#include "intrins.h"
#define uchar unsigned char
#define uint unsigned int
#define ulong unsigned long
#define ADC_POWER 0x80 //ADCμçÔ′¿ØÖÆÎ»
#define ADC_FLAG 0x10 //ADCíê3é±êÖ¾
#define ADC_START 0x08 //ADCÆeê¼¿ØÖÆÎ»
#define ADC_SPEEDLL 0x00 //540¸öê±Öó
#define ADC_SPEEDL 0x20 //360¸öê±Öó
#define ADC_SPEEDH 0x40 //180¸öê±Öó
#define ADC_SPEEDHH 0x60 //90¸öê±Öó
//#define GPIO_LED P3
sbit ba=P1^3;
sbit sh=P1^0;
sbit ge=P1^2;
sbit dn=P1^1;
//sbit dian=P3^4;
/*sfr P1M0=0x0f;
sfr P1M1=0x00;
sfr P3M0=0xff;
sfr P3M1=0x00; */
sbit up=P1^0;
sbit down=P1^1;
sbit heat=P1^7;
//sbit s2=P1^2;
//void Display(uchar dn,uchar ge,uchar sh,uchar ba);
//void Display(uchar kemp);
uchar makesure;//S3¼ü ¡°è·èÏ¼ü¡°
uchar tp=0;
uchar num=0;
uchar ad=0;
uchar s1,s2,s3,temp;
uchar code LED[]={0xCF,0x0C,0xEA,0xE3,0xAC,0x67,0xE7,0x0E,0xEF,0x6F}; //數碼管0-9
uchar code wei[4]={0x08,0x04,0x02,0x01}; //位選
//uint ADC_result6,shan_sz,shan_dw,wendu,sheding,aa,tt01,tt_xm1,tt_xm2,tt_aj,js_xm;
//uchar sheding_bz,jiare_bz,bz1,bz2,qieh_w,tt00,jiareshu,bz_xs,tt1,ab1,ab2,fen,miao;//¶¨òå±äá¿
ulong code KT_1[14][101]=
{
/*-100 0*/
{ 3568,3523,3492,3461,3430,3399,3368,3337,3305,3274,
3242,3211,3179,3147,3115,3082,3050,3018,2985,2953,
2920,2887,2854,2821,2788,2754,2721,2687,2654,2620,
2586,2552,2518,2484,2450,2416,2381,2347,2312,2277,
2243,2208,2173,2137,2102,2067,2032,1996,1961,1925,
1889,1853,1817,1781,1745,1709,1673,1636,1600,1563,
1527,1490,1453,1416,1379,1342,1305,1268,1231,1193,
1156,1118,1081,1043,1005, 968, 930, 892, 854, 816,
777 ,739 , 701, 662, 624, 585, 547, 508, 469, 431,
392 ,353 , 314, 275, 236, 197, 157, 118, 79, 39,
0
},
/*0 100*/
{ 0, 39, 79, 119, 158, 198, 238, 277, 317, 357,
397, 437, 477, 517, 557, 597, 637, 677, 718, 758,
798, 838, 879, 919, 960,1000,1041,1081,1122,1162,
1203,1244,1285,1325,1366,1407,1448,1489,1529,1570,
1611,1652,1693,1734,1776,1817,1858,1899,1940,1981,
2022,2064,2105,2146,2188,2229,2270,2312,2353,2394,
2436,2477,2519,2560,2601,2643,2684,2726,2767,2809,
2850,2892,2933,2975,3016,3058,3100,3141,3183,3224,
3266,3307,3349,3390,3432,3473,3515,3556,3598,3639,
3681,3722,3764,3805,3847,3888,3930,3971,4012,4054,
4095
},
/*100 200 */
{
4095,4137,4178,4219,4261,4302,4343,4384,4426,4467,
4508,4549,4590,4632,4673,4714,4755,4796,4837,4878,
4919,4960,5001,5042,5083,5124,5164,5205,5246,5287,
5327,5368,5409,5450,5490,5531,5571,5612,5652,5693,
5733,5774,5814,5855,5895,5936,5976,6016,6057,6097,
6137,6177,6218,6258,6298,6338,6378,6419,6459,6499,
6539,6579,6619,6659,6699,6739,6779,6819,6859,6899,
6939,6979,7019,7059,7099,7139,7179,7219,7259,7299,
7338,7378,7418,7458,7498,7538,7578,7618,7658,7697,
7737,7777,7817,7857,7897,7937,7977,8017,8057,8097,
8137
},
/*200 300 */
{
8137, 8177, 8216, 8256, 8296, 8236, 8376, 8416, 8456, 8497,
8537, 8577, 8617, 8657, 8697, 8737, 8777, 8817, 8857, 8898,
8938, 8978, 9018, 9058, 9099, 9139, 9179, 9220, 9260, 9300,
9341, 9381, 9421, 9462, 9502, 9543, 9583, 9624, 9664, 9705,
9745, 9786, 9826, 9867, 9907, 9948, 9989,10029,10070,10111,
10151,10192,10233,10274,10315,10355,10396,10437,10478,10519,
10560,10600,10641,10682,10723,10764,10805,10846,10887,10928,
10969,11010,11051,11093,11134,11175,11216,11257,11298,11239,
11381,11422,11463,11504,11546,11587,11628,11669,11711,11752,
11793,11835,11876,11918,11959,12000,12042,12083,12125,12166,
12207
},
/*300 400 */
{
12207,12249,12290,12332,12373,12415,12456,12498,12539,12581,
12623,12664,12706,12747,12789,12831,12872,12914,12955,12997,
13039,13080,13122,13164,13205,13247,13289,13331,13372,13414,
13456,13497,13539,13581,13623,13665,13706,13748,13790,13832,
13874,13915,13957,13999,14041,14083,14125,14167,14208,14250,
14292,14334,14376,14418,14460,14502,14544,14586,14628,14670,
14712,14754,14796,14838,14880,14922,14964,15006,15048,15090,
15132,15174,15216,15258,15300,15342,15384,15426,15468,15510,
15552,15594,15626,15679,15721,15763,15805,15847,15889,15931,
15974,16016,16058,16100,16142,16184,16227,16269,16311,16353,
16395
},
/*400 500 */
{
16395,16438,16480,16522,16564,16607,16649,16691,16733,16776,
16818,16860,16902,16945,16987,17029,17072,17114,17156,17199,
17241,17283,17326,17368,17410,17453,17495,17537,17580,17622,
17664,17707,17749,17792,17834,17876,17919,17961,18004,18046,
18088,18131,18173,18216,18258,18301,18343,18385,18428,18470,
18513,18555,18598,18640,18683,18725,18768,18810,18853,18895,
18938,18980,19023,19065,19108,19150,19193,19235,19278,19320,
19363,19405,19448,19490,19533,19576,19618,19661,19703,19746,
19788,19831,19873,19916,19959,20001,20044,20086,20129,20172,
20214,20257,20299,20342,20385,20427,20470,20512,20555,20598,
20640
},
/*500 600 */
{
20640,20683,20725,20768,20811,20853,20896,20938,20981,21024,
21066,21109,21152,21194,21237,21280,21322,21365,21407,21450,
21493,21535,21578,21621,21663,21706,21749,21791,21834,21876,
21919,21962,22004,22047,22099,22132,22175,22218,22260,22303,
22346,22383,22431,22473,22516,22559,22601,22644,22687,22729,
22772,22815,22857,22900,22942,22985,23028,23070,23113,23156,
23198,23241,23284,23326,23369,23411,23454,23497,23539,23582,
23624,23667,23710,23752,23795,23837,23880,23923,23965,24008,
24050,24093,24136,24178,24221,24263,24306,24348,24391,24434,
24476,24519,24561,24604,24646,24689,24731,24774,24817,24859,
24902
},
/*600 700 */
{
24902,24944,24987,25029,25072,25114,25157,25199,25242,25284,
25327,25369,25412,25454,25497,25539,25582,25624,25666,25709,
25751,25794,25836,25879,25921,25964,26006,26048,26091,26133,
26176,26218,26260,26303,26345,26387,26430,26472,26515,26557,
26599,26642,26684,26726,26769,26811,26853,26896,26938,26980,
27022,27065,27107,27149,27192,27234,27276,27318,27361,27403,
27445,27487,27529,27572,27614,27656,27698,27740,27783,27825,
27867,27909,27951,27993,28035,28078,28120,28162,28204,28246,
28288,28330,28372,28414,28456,28498,28540,28583,28625,28677,
28709,28751,28793,28835,28877,28919,28961,29002,29044,29086,
29128
},
/*700 800 */
{
29128,29170,29212,29254,29296,29338,29380,29422,29464,29505,
29547,29589,29631,29673,29715,29756,29798,29840,29882,29924,
29965,30007,30049,30091,30132,30174,30216,30257,30299,30341,
30383,30424,30466,30508,30549,30591,30632,30674,30716,30757,
30799,30840,30882,30924,30965,31007,31048,31090,31131,31173,
31214,31256,31297,31339,31380,31422,31463,31504,31546,31587,
31629,31670,31712,31753,31794,31836,31877,31918,31960,32001,
32042,32084,32125,32166,32207,32249,32290,32331,32372,32414,
32455,32496,32537,32578,32619,32661,32702,32743,32784,32825,
32866,32907,32948,32990,33031,33072,33113,33154,33195,33236,
33277
},
/*800 900 */
{
33277,33318,33359,33400,33441,33482,33523,33564,33604,33645,
33686,33727,33768,33809,33850,33891,33931,33972,34013,34054,
34095,34136,34176,34217,34258,34299,34339,34380,34421,34461,
34502,34543,34583,34624,34665,34705,34746,34787,34827,34868,
34909,34949,34990,35030,35071,35111,35152,35192,35233,35273,
35314,35354,35395,35435,35476,35516,35557,35597,35637,35678,
35718,35758,35799,35839,35880,35920,35960,36000,36041,36081,
36121,36162,36202,36242,36282,36323,36363,36403,36443,36483,
36524,36564,36604,36644,36684,36724,36764,36804,36844,36885,
36925,36965,37005,37045,37085,37125,37165,37205,37245,37285,
37325
},
/*900 1000 */
{
37325,37365,37405,37445,37484,37524,37564,37604,37644,37684,
37724,37764,37803,37843,37883,37923,37963,38002,38042,38082,
38122,38162,38201,38241,38281,38320,38360,38400,38439,38479,
38519,38558,38598,38638,38677,38717,38756,38796,38836,38875,
38915,38954,38994,39033,39073,39112,39152,39191,39231,39270,
39310,39349,39388,39428,39467,39507,39546,39585,39625,39664,
39703,39743,39782,39821,39861,39900,39939,39979,40018,40057,
40096,40136,40175,40214,40253,40292,40332,40371,40410,40449,
40488,40527,40566,40605,40645,40684,40723,40762,40801,40840,
40879,40918,40957,40996,41035,41074,41113,41152,41191,41230,
41269
},
/*1000 1100 */
{
41269,41308,41347,41385,41424,41463,41502,41541,41580,41619,
41657,41696,41735,41774,41813,41851,41890,41929,41968,42006,
42045,42084,42132,42161,42200,42239,42277,42316,42355,42393,
42432,42470,42509,42548,42586,42625,42663,42702,42740,42779,
42817,42856,42894,42933,42971,43010,43048,43087,43125,43164,
43202,43240,43279,43317,43356,43394,43482,43471,43509,43547,
43585,43624,43662,43700,43739,43777,43815,43853,43891,43930,
43968,44006,44044,44082,44121,44159,44197,44235,44273,44311,
44349,44387,44425,44463,44501,44539,44577,44615,44653,44691,
44729,44767,44805,44843,44881,44919,44957,44995,45033,45070,
45108
},
/*1100 1200 */
{
45108,45146,45184,45222,45260,45297,45335,45373,45411,45448,
45486,45524,45561,45599,45637,45675,45712,45750,45787,45825,
45863,45900,45938,45975,46013,46051,46088,46126,46163,46201,
46238,46275,46313,46350,46388,46425,46463,46500,46537,46575,
46612,46649,46687,46724,46761,46799,46836,46873,46910,46948,
46985,47022,47059,47097,47134,47171,47208,47245,47282,47319,
47356,47393,47430,47468,47505,47542,47579,47616,47653,47689,
47726,47763,47800,47837,47874,47911,47948,47985,48021,48058,
48095,48132,48169,48205,48242,48279,48316,48352,48389,48426,
48462,48499,48536,48572,48609,48645,48682,48718,48755,48792,
48828
},
/*1200 1300 */
{
48828,48865,48901,48937,48974,49010,49047,49083,49120,49156,
49192,49229,49265,49301,49338,49374,49410,49446,49483,49519,
49555,49591,49627,49663,49700,49736,49772,49808,49844,49880,
49916,49952,49988,50024,50060,50096,50132,50168,50204,50240,
50276,50311,50347,50383,50419,50455,50491,50526,50562,50598,
50633,50669,50705,50741,50776,50812,50847,50883,50919,50954,
50990,51025,51061,51096,51132,51167,51203,51238,51274,51309,
51344,51380,51415,51450,51486,51521,51556,51592,51627,51662,
51697,51773,51768,51803,51838,51873,51908,51943,51979,52014,
52049,52084,52119,52154,52189,52224,52259,52294,52329,52364,
52398
}
};
/*****************延時子程序*****************/
/*void delayus(uint xus)
{
uint i,j;
for(i=0;i<xus;i++)
for(j=0;j<10;j++);
}*/
void delay1ms(unsigned int i)
{
uchar j;
while(i--)
{
for(j=0;j>115;j++);
{;}
}
}
/*********端口初始化********/
/*void Init()
{
P1M1&=~0X40;
P1M0|=0Xf3;
P3M1=0X00;
P3M0=0XFF;
P1M0&=~0X40;//P1^6¸高阻輸入
P1M1|=0X40;
ADC_CONTR=0X80;//啟動
ADC_START=0X08;
delay1ms(2);
AUXR1&=~0X04;//ADC儲存方式
ADC_CONTR=0XE1;
} */
void Init()
{
P1M0|=0x80;
P1M1&=~0x80;
// P1M0= 0x0f;
// P1M1= 0x00;
P3M0=0xff;
P3M1=0x00;
P5=0xff;
P5=0xff;
P1ASF=0x40; //設置第6通道作摸擬輸入
ADC_RES=0; //清除
ADC_RESL=0; //清除
ADC_CONTR=ADC_POWER|ADC_SPEEDLL; //ADC開啟電源，
delay1ms(2); //延時1ms
}
/***鍵盤檢測*****/
/*void Keyboardset(void)
{
if((s1+s2+s3)!=0)
{
if(s1==1)
num=num-1;
Display(num,tp);
}
if(s2==1)
{
num=num+1;
Display(num,tp);
if(num>=1000)num=1000;
}
if(s3==1)
{
if(num>tp)
makesure=1;
return;
}
} */
/********按鍵掃描*********/
/*void Keyask(void)
{
uchar tepm;
s1=0;
s2=0;
s3=0;
P1=0x30;
P5=0xff;
tepm=P1&0X30;
if(temp!=0x30)
{
delay1ms(10);
if(temp!=0x30)
switch(temp)
{
case(0x20):s1=1;
while(!(P1&0X10));
break;
case(0x10):s2=1;
while(!(P1&0x20));
break;
}
}
P1=0X70;
if(temp!=0x30)
{
delay1ms(10);
if(temp!=0x30)
switch(temp)
{
case(0x20):s3=1;
while(!(P1&0X10));
}
}
}*/
/**********ADC初始化并采集**************/
/*uchar getAD(void)
{
uchar i;
uint sum=0;
for(i=0;i<8;i++)
{
ADC_CONTR|=0X08;
BIT3=0x08(ADC_STARTAD)
delay(1);
P1ASF=0x40;
while((ADC_CONTR&0x10)==0x00);//等待轉換結束
ADC_CONTR&=~0x10;
sum+=ADC_RES;
}
sum>>=3;
return(uchar)sum; //強制轉換uchar形式
} */
uint getAD(uchar channel)
{
uchar ad_finished=0;//儲存AD轉換標志
uchar i;
uint sum=0;
for(i=0;i<8;i++)
{
ADC_RES=0;//¸高8清0
ADC_RESL=0;//低2清0
channel&=0x07;//0000 0111 清0高5位
ADC_CONTR=0x60;//轉換速率
_nop_();
ADC_CONTR=channel;//選擇當前通道
_nop_();
ADC_CONTR|=0x80;//啟動AD電源
_nop_();//延時
_nop_();
ADC_CONTR|=0x08;//0000,1000啟動轉換
ad_finished=0;
while(ad_finished==0)//等待轉換結束
{
ad_finished=(ADC_CONTR&0x10); //測試轉換結束？
}
ADC_CONTR&=0xE7;//1111,0111 清ADC_FLAG位，關閉轉換
sum+=ADC_RES;
}
sum>>=3; //求取平均值
return(uchar)sum; //強制轉換uchar形式
return(ADC_RES*256+ADC_RESL);//·返回AD結果
}
/*************êyÂë1üÏÔê¾*****************/
void Display(uchar kemp)
/* void Display(uchar dn,uchar ge,uchar sh,uchar ba)*/
{
/* uchar i;
uint k;
for(i=0;i<4;i++);
{
switch(i)
{
case(0):
b=0;s=0;g=0;d=0;
break;
case(1):
b=1;s=0;g=0;d=0;
break;
case(2):
b=0;s=1;g=0;d=0;
break;
case(3):
b=0;s=0;g=1;d=0;
break;
case(4):
b=0;s=0;g=0;d=1;
break;
}
GPIO_LED=LED[i];
k=10;
while(k--);
GPIO_LED=0x00;
} */
/*uchar b,sh,g;
b=num/100;
sh=(num/10)%10;
g=num%10;*/
//P3=0x00;
ba=1;
sh=0;
ge=0;
dn=0;
P3=LED[kemp/100]; //百位
// delay5ms();
ba=0;
sh=1;
ge=0;
dn=0;
P3=LED[kemp/10%10]; //十位
// delay5ms();
ba=0;
sh=0;
ge=1;
dn=0;
P3=LED[kemp%10]; //個位
// delay5ms();
ba=0;
sh=0;
ge=0;
dn=1;
P3=0x5e; //單位‘C'
// delay5ms();
}
/***********主程序***********/
void main()
{
uchar kemp;//dn,ge,sh,ba ;
Init();
P1ASF=0x40;//
AUXR=0x04;//
ADC_CONTR|=0x80;//
//P1M0=0x0f;
//P3M0=0xff;
while(1)
{
Keyboardset();
ad=getAD;
tp=KT_1[ad/2];
if(makesure==1)
{
if(num>=tp)
{
heat=1;
}
if(tp>num)
{
heat=0;
}
}
kemp=tp|num;
//delay10ms();
/* ba=kemp/100; //百
sh=kemp/10%10; //十
ge=kemp%10; */ //¸個
//dn=0x5e;
Display(kemp);
}
}

復制代碼

ID:407803 · 發表于 2018-10-10 22:36

ad=getAD();//要加括號

ID:348282 · 發表于 2018-10-11 09:32

還有就是delay5ms()延時函數那里編譯出警告，顯示子程序好像沒起作用。

ID:348282 · 發表于 2018-10-11 09:35

嗯，還有顯示子程序好像不起作用，如延時函數那里，我把它屏蔽了，編譯時少了幾個警告，可能少了聲明函數，但不知在那里聲明。

ID:213173 · 發表于 2018-10-11 13:37

你的顯示程序寫得很混亂，從位碼看是用的共陽數碼管，從段碼看是用的共陰數碼管并且也沒有按a~f順序編碼，不知道你的段碼數組依據什么來的。
這是按共陰數碼管寫的顯示程序
uchar code LED[]={//共陰數碼管段碼"0~f-."
0x3f,0x06,0x5b,0x4f,
0x66,0x6d,0x7d,0x07,
0x7f,0x6f,0x77,0x7c,
0x39,0x5e,0x79,0x71,0x40,0x80};

void Display(uint k)
{
static uchar i=0;
P3=0x00;//消隱
switch(i)
{
case 0:
ba=0;
sh=1;
ge=1;
dn=1;
P3=LED[k/100];       //百位
i++;
break;
case 1:
ba=1;
sh=0;
ge=1;
dn=1;
P3=LED[k/10%10];          //十位
i++;
break;
case 2:
ba=1;
sh=1;
ge=0;
dn=1;
P3=LED[k%10];       //個位
i++;
break;
case 3:
ba=1;
sh=1;
ge=1;
dn=0;
P3=0x39;       //單位‘C'
i=0;
break;
}
delay1ms(1);
}

ID:348282 · 發表于 2018-10-11 15:28

還有就是STC15W408AS 沒有定時器1，那定時器2和CCP如何設置?

ID:213173 · 發表于 2018-10-11 19:05

law110 發表于 2018-10-11 15:28
還有就是STC15W408AS 沒有定時器1，那定時器2和CCP如何設置?

ID:348282 · 發表于 2018-10-12 22:17

另外AD采集電壓沒電壓顯示幫看看程序有沒有錯，謝謝。

ID:348282 · 發表于 2018-10-12 22:29

#include"STC15.H"
#include "intrins.h"
#define uchar unsigned char
#define uint unsigned int
//#define ulong unsigned long
#define ADC_POWER 0x80 //ADCμçÔ′¿ØÖÆÎ»
#define ADC_FLAG 0x10 //ADCíê3é±êÖ¾
#define ADC_START 0x08 //ADCÆeê¼¿ØÖÆÎ»
#define ADC_SPEEDLL 0x00 //540¸öê±Öó
#define ADC_SPEEDHH 0x60 //90¸öê±Öó
uint Get_ADC(uchar channel);
uchar ch=6;
sbit ba=P1^3;
sbit sh=P1^0;
sbit ge=P1^2;
sbit dn=P1^1;
//sbit up=P1^0;
//sbit down=P1^1;
//sbit heat=P1^7;
uchar c,b,s,g;
uchar code LED[]={0xCF,0x0C,0xEA,0xE3,0xAC,0x67,0xE7,0x0E,0xEF,0x6F}; //¶¨òåêyÂë1ü0-9êy×é
/*void Init()
{*/
/* TMOD=0x11; //éè¶¨¶¨ê±Æ÷1¤×÷·½ê½
EA=1; //¿a×üÖD¶Ï
ET0=1; //¿a¶¨ê±Æ÷0
TR0=1; //Æô¶ˉ¶¨ê±Æ÷0
TH0=(65536-5000)/256; //¸ß8Î»×°3õÖμ 50ms
TL0=(65536-5000)%256; //μí8Î»×°3õÖμ*/
/*P1M0=0x0f;
P1M1=0x00;
P3M0=0xff;
P3M1=0x00;
P5M0=0xff;
P5M1=0xff;
} */
/************延時子程序*************/
void Delay1ms() //@12.000MHz
{
unsigned char i, j;
i = 12;
j = 169;
do
{
while (--j);
}
while (--i);
}
void Delay5ms() //@12.000MHz
{
unsigned char i, j;
i = 59;
j = 90;
do
{
while (--j);
} while (--i);
}
/***********初始化ADC**************/
void InitADC()
{
P1M0=0x40; //éèÖÃP1μÄμú6í¨μà¶Ë¿ú×÷ÎaÄ￡Äa¸ß×èêäèë
P1M1=0x00;
P1ASF=0x40;
ADC_CONTR=0xe3;
ADC_RES=0;
ADC_RESL=0;
ADC_CONTR=ADC_POWER|ADC_SPEEDLL|ADC_START|ch; //ADC 開啟電源并轉換
Delay1ms(); //延時1ms
}
/***********ADC2é¼ˉ***************/
uint Get_ADC(uchar channel)
{
uchar ad_finished=0;//ad儲存轉換標志
uint i;
uint sum=0;
for(i=0;i<8;i++)
{
ADC_RES=0;//清0
ADC_RESL=0;
channel&=0x07;//清零高5位
ADC_CONTR=0x60;//轉換速率
_nop_();
ADC_CONTR=channel;//選擇當前通道
_nop_();
ADC_CONTR=0x80;//啟動AD電源，、
Delay1ms();
ADC_CONTR|=0x08;//0000,1000啟動轉換
_nop_();
_nop_();
_nop_();
_nop_();
ad_finished=0;
while(ad_finished==0)//等待轉換
{
ad_finished=(ADC_CONTR&0x10); //0001,0000 測試轉換結束
}
ADC_CONTR&=~ADC_FLAG;//1111,0111 清標志位，并關閉
sum+=ADC_RES;
}
sum>>=3; //Çóè¡Æ½¾ùÖμ
return(uchar)sum; //強制轉換形式uchar
//return(ADC_RES*256+ADC_RESL);//·μ»Ø A/D ¸ß8Î»+μí2Î»×a»»½á1û
}
/* void change()
{
uint disnum;
uint temp=0;
disnum=Get_ADC();
disnum=disnum*(5.0)/256*10;
temp=(int)disnum;
c=temp/1000;
b=temp/1000%100;
s=temp/100%10;
g=temp%10;
} */
/*************數碼管顯示*****************/
void Display()
{
//P3=0x00;
ba=1;
sh=0;
ge=0;
dn=0;
P3=LED[c]; //千位
Delay5ms();
ba=0;
sh=1;
ge=0;
dn=0;
P3=LED[b]; //百
Delay5ms();
ba=0;
sh=0;
ge=1;
dn=0;
P3=LED[s]; //十
Delay5ms();
ba=0;
sh=0;
ge=0;
dn=1;
P3=LED[g]; //個
// P3=0x5e; //μ￥Î»¡®C'
Delay5ms();
}
/************ ¶¨ê±Æ÷1·tÎñ3ìDò***************/
/* void timer0() interrupt 1 //¶¨ê±Æ÷1·tÎñ3ìDò2ms
{
TH0=0xf8;//(65536-2000)/256
TL0=0x30;//(65536-2000)%256 */
/***********主程序***********/
void main()
{
uint disnum;
P1M0=0xff;
P1M1=0x00;
// Disp_init();
InitADC();
//Init();
for(;;)
{
//change();
uint temp=0;
disnum=Get_ADC();
disnum=disnum*(5.0)/256*10;
temp=(int)disnum;
c=temp/1000;
b=temp/1000%100;
s=temp/100%10;
g=temp%10;
Display();
}
}

復制代碼

帳號		自動登錄	找回密碼
密碼			立即注冊

久久久久久久999_99精品久久精品一区二区爱城_成人欧美一区二区三区在线播放_国产精品日本一区二区不卡视频_国产午夜视频_欧美精品在线观看免费

數控烙鐵單片機程序求指點燒錄后數碼管是全顯

評分

評分

評分

評分

久久久久久久999_99精品久久精品一区二区爱城_成人欧美一区二区三区在线播放_国产精品日本一区二区不卡视频_国产午夜视频_欧美精品在线观看免费

數控烙鐵單片機程序求指點 燒錄后數碼管是全顯

評分

評分

評分

評分

數控烙鐵單片機程序求指點燒錄后數碼管是全顯
