有時為了降低成本，利用銅皮做ESD防護，銅皮的制作�？梢詤⒖�
An excellent way that I have found to protect inputs to electronics components from the very high
voltages of ESD and EMI spikes is to use spark gaps. These can be built into your circuit board as
a part of the PC board etch. The gaps should be designed as shown in the following dimension
drawing.
下載附件
2018-10-11 01:45 上傳
As shown above the two spark gap pads are half circles with a radius of 0.025 inches. The
designed gap spacing should be 0.004 inches. If you use care in the manufacturing process so that
the board's final etched gap dimension is less than 0.005 to 0.006 inches then you can expect to
have an air gap that can clamp ESD spikes to less than 200 volts. The gap area MUST be open to
the air and NOT covered with solder mask.
The spark gap can be a very effective protection measure, particularly if used in conjunction with

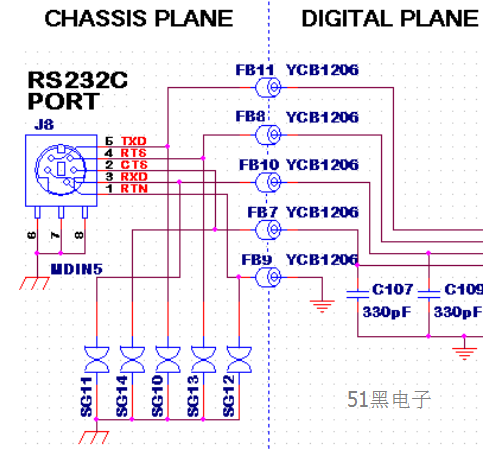

other filtering components. The schematic snippett below shows how the spark gaps can be drawn
directly onto the schematic as an actual "component".
下載附件
2018-10-11 01:45 上傳
完整的pdf格式文檔51黑下載地址：
焊盤間隙放電Spark Gaps.pdf
(1.58 MB, 下載次數(shù): 41)
2018-10-9 11:38 上傳
點擊文件名下載附件
