T6963C控制的PG12864仿真程序，顯示中英文加漢字

ID:135253 · 發表于 2018-9-27 09:20

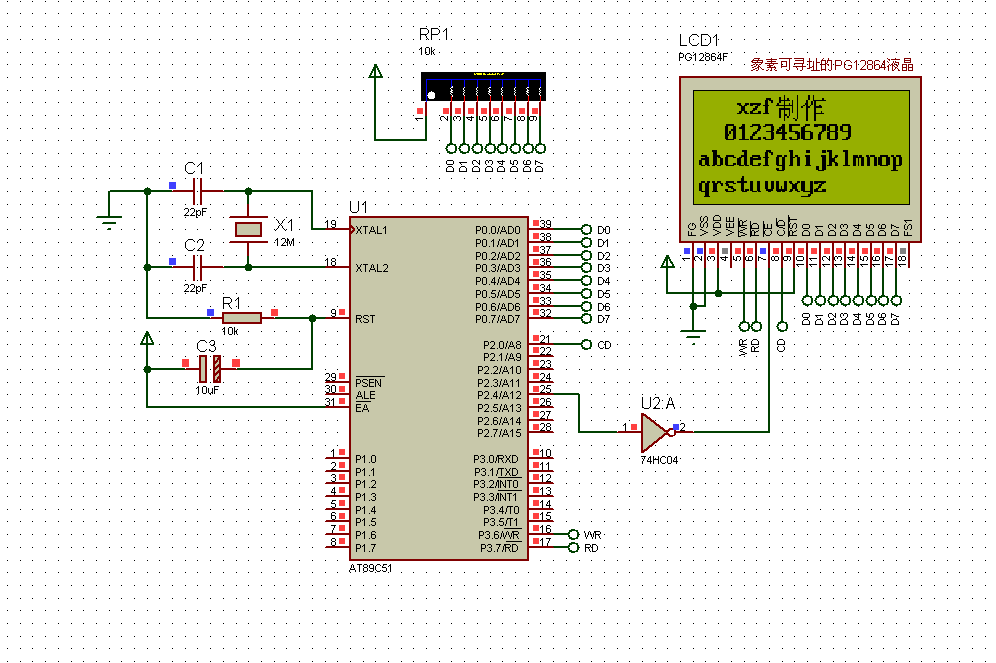

收了幾塊T6963C控制的點陣液晶屏，研究了兩天，終于弄了點小眉目，現在將程序及仿真放上來，供參考

單片機源程序如下:

#include<stdio.h> //NULL 的引用
#include<intrins.h>
#include<ABSACC.H> //XBYTE[]的引用
#define uchar unsigned char
#define uint unsigned int
#define lcmcom XBYTE[0x3fff] /*T6963C 寫命令口地址，讀數據口地址*/
#define lcmdata XBYTE[0x3eff] /*T6963C 寫數據口地址*/
uchar code table[]=
{
/*---轉換字符 *姓名*/
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0xC6,0x6C,0x38,0x38,0x38,0x6C,0xC6,0x00,0x00,0x00,0x00, // -x-
/*---轉換字符 * 姓名*/
0x00,0x00,0x00,0x00,0x00,0xFE,0xCC,0x18,0x30,0x60,0xC6,0xFE,0x00,0x00,0x00,0x00, // -z-
0x00,0x00,0x38,0x6C,0x64,0x60,0xF0,0x60,0x60,0x60,0x60,0xF0,0x00,0x00,0x00,0x00, // -f-
/*---轉換字符制 ---*/
0x04,0x24,0x25,0x3F,0x24,0x44,0xFF,0x04,0x3F,0x24,0x24,0x24,0x26,0x25,0x04,0x04,
0x04,0x04,0x04,0xA4,0x24,0xA4,0xE4,0x24,0xA4,0xA4,0xA4,0x84,0x84,0x04,0x14,0x08,
/*---轉換字符作 ---*/
0x09,0x09,0x09,0x11,0x12,0x32,0x54,0x98,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,
0x00,0x00,0x04,0xFE,0x80,0x80,0x90,0xF8,0x80,0x80,0x88,0xFC,0x80,0x80,0x80,0x80
};
void busy_lcm(uchar flag)
{
uchar i;
i=flag;
while(i==lcmcom&flag);
}
void write_lcm(uchar count,uchar com,uchar data1,uchar data2)
{
switch(count)
{
case 1: busy_lcm(0x3); lcmcom=com;
break;
case 2: busy_lcm(0x3); lcmdata=data1; busy_lcm(0x3); lcmcom=com;
break;
case 3: busy_lcm(0x3); lcmdata=data1; busy_lcm(0x3); lcmdata=data2; busy_lcm(0x3);
lcmcom=com;
break;
default:break;
}
}
void clear_lcm()
{
uint i;
write_lcm(3,0x24,0x00,0x00); /*設置顯示RAM 首地址*/
write_lcm(1,0xb0,NULL,NULL); /*設置自動寫方式*/
for (i=0;i<3840;i++) /*最大顯示點陣為：240*128/8=3840;128×64/8＝1024*/
{
busy_lcm(0x0c);
lcmdata=0x0; /*寫00H 清屏*/
}
busy_lcm(0x0c);
lcmcom=0xb2; /*設置自動寫結束*/
}
void init_lcm()
{
write_lcm(1,0xa1,NULL,NULL); //設置光標形狀為8（列）×1（行）
write_lcm(3,0x21,0x00,0x00); //設置光標指針
write_lcm(3,0x40,0x00,0x00); //設置文本顯示區域首址
write_lcm(3,0x41,0x01,0x00); // 設置文本區寬度
write_lcm(3,0x42,32,0x00); //設置圖形顯示區域首址為32
write_lcm(3,0x24,32,0x00); // 設置地址指針位置為32
write_lcm(3,0x43,30,0x0); //設置圖形顯示區域?qū)挾葹?0 字節
write_lcm(1,0x80,NULL,NULL); //設置顯示為邏輯“或”方式
write_lcm(1,0x9c,NULL,NULL); //設置顯示開關，圖形/文本顯示均開啟
}
/********************************************************************
顯示一個漢字
*********************************************************************/
void display_1c(uchar caddr,uchar x,uchar y) //控制漢字
{
uchar i,j,*p;uint w;
p=table+caddr*32;
x=x<<1; //可靈活調節循環左移
for(i=0;i<=1;i++)
{
x=x+i;
for(j=0;j<16;j++)
{
w=y*16*30+x+32+j*30;
write_lcm(3, 0x24, w%256, w>>8);
write_lcm(2, 0xc2, *p, NULL);
p++;
}
}
}

復制代碼

所有資料51hei提供下載:

T6963C控制的PG12864，顯示中英文加漢字.rar (69.96 KB, 下載次數: 140)

ID:526030 · 發表于 2019-5-2 16:53

多謝分享小白被這T6963C搞死了快哈哈

ID:60026 · 發表于 2019-6-27 16:55

正折騰呢!謝謝！

ID:507540 · 發表于 2019-7-29 10:45

不錯，下來學習下

ID:387410 · 發表于 2019-9-28 13:04

不錯～看一下～頂上去

ID:710016 · 發表于 2020-3-17 11:55

新手來學習一下

ID:795427 · 發表于 2022-6-23 13:55

謝謝分享，可以驅動顯示，不過啟動后要等待10多秒后才能刷出畫面來。

ID:543845 · 發表于 2022-7-2 18:34

為什么啟動這么慢？
