千兆網口芯片B50610規格書，在網上下不了的，無私奉獻出來給大家

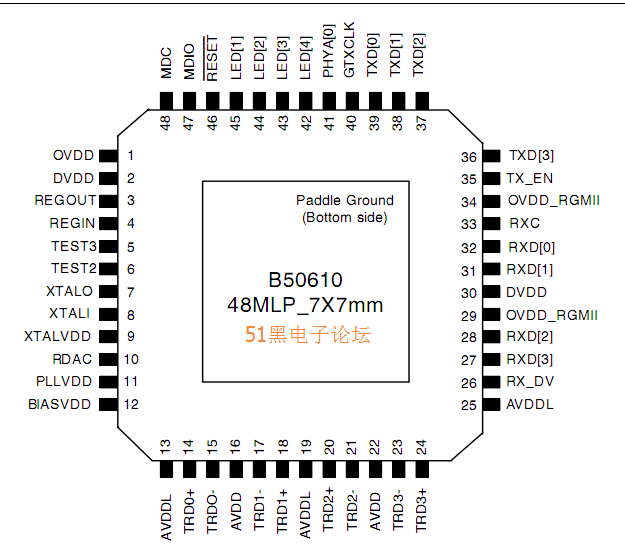

B50610引腳圖：
GENERAL DESCRIPTION
The Broadcom® B50610 is a triple-speed 1000BASE-T/
100BASE-TX/10BASE-T Gigabit Ethernet (GbE)
transceiver integrated into a single monolithic CMOS chip.
The device performs all physical-layer functions for
1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet on
standard category 5 UTP cable. 10BASE-T can also run
on standard category 3, 4, and 5 UTP. The B50610 is a
highly integrated solution combining digital adaptive
equalizers, ADCs, phase-locked loops, line drivers,
encoders, decoders, echo cancellers, crosstalk
cancellers, and all required support circuitry. Based on
Broadcom’s proven Digital Signal Processor technology,
the B50610 is designed to be fully compliant with RGMII,
allowing compatibility with industry-standard Ethernet
MACs and switch controllers.
Designed for reliable operation over worst-case
category 5 cable, the B50610 automatically negotiates
with its link partner to determine the highest possible
operating speed. The device detects and corrects most
common wiring problems. The B50610 features
CableChecker™ diagnostics, which detects common
cable problems including shorts, opens, and cable length.
