音樂循環彩燈仿真原理圖如下(proteus仿真工程文件可到本帖附件中下載)
下載附件
2018-4-17 03:12 上傳
下載附件
2018-4-17 03:12 上傳
單片機多變音樂循環彩燈源程序如下:
- #include <REG52.H>
- #include "SoundPlay.h"
- unsigned char RunMode;
- //**********************************System Fuction*************************************************
- void Delay1ms(unsigned int count)
- {
- unsigned int i,j;
- for(i=0;i<count;i++)
- for(j=0;j<120;j++);
- }
- unsigned char code LEDDisplayCode[] = { 0xC0,0xF9,0xA4,0xB0,0x99,0x92,0x82,0xF8, //0~7
- 0x80,0x90,0x88,0x83,0xC6,0xA1,0x86,0x8E,0xFF};
- void Display(unsigned char Value)
- {
- P3 = LEDDisplayCode[Value];
- }
- void LEDFlash(unsigned char Count)
- {
- unsigned char i;
- bit Flag;
- for(i = 0; i<Count;i++)
- {
- Flag = !Flag;
- if(Flag)
- Display(RunMode);
- else
- Display(0x10);
- Delay1ms(100);
- }
- Display(RunMode);
- }
- unsigned char GetKey(void)
- {
- unsigned char KeyTemp,CheckValue,Key = 0x00;
- CheckValue = P2&0x32;
- if(CheckValue==0x32)
- return 0x00;
-
- Delay1ms(10);
- KeyTemp = P2&0x32;
- if(KeyTemp==CheckValue)
- return 0x00;
- if(!(CheckValue&0x02))
- Key|=0x01;
- if(!(CheckValue&0x10))
- Key|=0x02;
- if(!(CheckValue&0x20))
- Key|=0x04;
- return Key;
- }
- unsigned int Timer0Count,SystemSpeed,SystemSpeedIndex;
- void InitialTimer2(void)
- {
- T2CON = 0x00; //16 Bit Auto-Reload Mode
- TH2 = RCAP2H = 0xFC; //重裝值,初始值 TL2 = RCAP2L = 0x18;
- ET2=1; //定時器 2 中斷允許
- TR2 = 1; //定時器 2 啟動
- EA=1;
- }
- unsigned int code SpeedCode[]={ 1, 2, 3, 5, 8, 10, 14, 17, 20, 30,
- 40, 50, 60, 70, 80, 90, 100, 120, 140, 160,
- 180, 200, 300, 400, 500, 600, 700, 800, 900,1000};//30
- void SetSpeed(unsigned char Speed)
- {
- SystemSpeed =SpeedCode[Speed];
- }
- void LEDShow(unsigned int LEDStatus)
- {
- P1 = ~(LEDStatus&0x00FF);
- P0 = ~((LEDStatus>>8)&0x00FF);
- }
- void InitialCPU(void)
- {
- RunMode = 0x00;
- Timer0Count = 0;
- SystemSpeedIndex = 9;
- P1 = 0x00;
- P0 = 0x00;
- P2 = 0xFF;
- P3 = 0x00;
- Delay1ms(500);
- P1 = 0xFF;
- P0 = 0xFF;
- P2 = 0xFF;
- P3 = 0xFF;
- SetSpeed(SystemSpeedIndex);
- Display(RunMode);
- }
- //Mode 0
- unsigned int LEDIndex = 0;
- bit LEDDirection = 1,LEDFlag = 1;
- void Mode_0(void)
- {
- LEDShow(0x0001<<LEDIndex);
- LEDIndex = (LEDIndex+1)%16;
- }
- //Mode 1
- void Mode_1(void)
- {
- LEDShow(0x8000>>LEDIndex);
- LEDIndex = (LEDIndex+1)%16;
- }
- //Mode 2
- void Mode_2(void)
- {
- if(LEDDirection)
- LEDShow(0x0001<<LEDIndex);
- else
- LEDShow(0x8000>>LEDIndex);
- if(LEDIndex==15)
- LEDDirection = !LEDDirection;
- LEDIndex = (LEDIndex+1)%16;
- }
- //Mode 3
- void Mode_3(void)
- {
- if(LEDDirection)
- LEDShow(~(0x0001<<LEDIndex));
- else
- LEDShow(~(0x8000>>LEDIndex));
- if(LEDIndex==15)
- LEDDirection = !LEDDirection;
- LEDIndex = (LEDIndex+1)%16;
- }
- //Mode 4
- void Mode_4(void)
- {
- if(LEDDirection)
- {
- if(LEDFlag)
- LEDShow(0xFFFE<<LEDIndex);
- else
- LEDShow(~(0x7FFF>>LEDIndex));
- }
- else
- {
- if(LEDFlag)
- LEDShow(0x7FFF>>LEDIndex);
- else
- LEDShow(~(0xFFFE<<LEDIndex));
- }
- if(LEDIndex==15)
- {
- LEDDirection = !LEDDirection;
- if(LEDDirection) LEDFlag = !LEDFlag;
- }
- LEDIndex = (LEDIndex+1)%16;
- }
- //Mode 5
- void Mode_5(void)
- {
- if(LEDDirection)
- LEDShow(0x000F<<LEDIndex);
- else
- LEDShow(0xF000>>LEDIndex);
- if(LEDIndex==15)
- LEDDirection = !LEDDirection;
- LEDIndex = (LEDIndex+1)%16;
- }
- //Mode 6
- void Mode_6(void)
- {
- if(LEDDirection)
- LEDShow(~(0x000F<<LEDIndex));
- else
- LEDShow(~(0xF000>>LEDIndex));
- if(LEDIndex==15)
- LEDDirection = !LEDDirection;
- LEDIndex = (LEDIndex+1)%16;
- }
- //Mode 7
- void Mode_7(void)
- {
- if(LEDDirection)
- LEDShow(0x003F<<LEDIndex);
- else
- LEDShow(0xFC00>>LEDIndex);
- if(LEDIndex==9)
- LEDDirection = !LEDDirection;
- LEDIndex = (LEDIndex+1)%10;
- }
- //Mode 8
- void Mode_8(void)
- {
- LEDShow(++LEDIndex);
- }
- void Timer0EventRun(void)
- {
- if(RunMode==0x00)
- {
- Mode_0();
- }
- else if(RunMode ==0x01)
- {
- Mode_1();
- }
- else if(RunMode ==0x02)
- {
- Mode_2();
- }
- else if(RunMode ==0x03)
- {
- Mode_3();
- }
- else if(RunMode ==0x04)
- {
- Mode_4();
- }
- else if(RunMode ==0x05)
- {
- Mode_5();
- }
- else if(RunMode ==0x06)
- {
- Mode_6();
- }
- else if(RunMode ==0x07)
- {
- Mode_7();
- }
- else if(RunMode ==0x08)
- {
- Mode_8();
- }
- }
- void Timer2(void) interrupt 5 using 3
- {
- TF2 = 0; //中斷標志清除( Timer2 必須軟件清標志!)
- if(++Timer0Count>=SystemSpeed)
- {
- Timer0Count = 0;
- Timer0EventRun();
- }
- }
- unsigned char MusicIndex = 0;
- void KeyDispose(unsigned char Key)
- {
- if(Key&0x01)
- {
- LEDDirection = 1;
- LEDIndex = 0;
- LEDFlag = 1;
- RunMode = (RunMode+1)%10;
- Display(RunMode);
- if(RunMode==0x09)
- TR2 = 0;
- else
- TR2 = 1;
- }
- if(Key&0x02)
- {
- if(RunMode==0x09)
- {
- MusicIndex =(MusicIndex+MUSICNUMBER-1)%MUSICNUMBER;
- }
- else
- {
- if(SystemSpeedIndex>0)
- {
- --SystemSpeedIndex;
- SetSpeed(SystemSpeedIndex);
- }
- else
- {
- LEDFlash(6);
- }
- }
- }
- if(Key&0x04)
- {
- if(RunMode==0x09)
- {
- MusicIndex =(MusicIndex+1)%MUSICNUMBER;
- }
- else
- {
- if(SystemSpeedIndex<28)
- {
- ++SystemSpeedIndex;
- SetSpeed(SystemSpeedIndex);
- }
- else
- {
- LEDFlash(6);
- }
- }
- }
- }
- //*****************************Music******************************************************
- //揮著翅膀的女孩
- unsigned char code Music_Girl[]={ 0x17,0x02, 0x17,0x03, 0x18,0x03, 0x19,0x02, 0x15,0x03,
- 0x16,0x03, 0x17,0x03, 0x17,0x03, 0x17,0x03, 0x18,0x03,
- 0x19,0x02, 0x16,0x03, 0x17,0x03, 0x18,0x02, 0x18,0x03,
- 0x17,0x03, 0x15,0x02, 0x18,0x03, 0x17,0x03, 0x18,0x02,
- 0x10,0x03, 0x15,0x03, 0x16,0x02, 0x15,0x03, 0x16,0x03,
- 0x17,0x02, 0x17,0x03, 0x18,0x03, 0x19,0x02, 0x1A,0x03,
- 0x1B,0x03, 0x1F,0x03, 0x1F,0x03, 0x17,0x03, 0x18,0x03,
- 0x19,0x02, 0x16,0x03, 0x17,0x03, 0x18,0x03, 0x17,0x03,
- 0x18,0x03, 0x1F,0x03, 0x1F,0x02, 0x16,0x03, 0x17,0x03,
- 0x18,0x03, 0x17,0x03, 0x18,0x03, 0x20,0x03, 0x20,0x02,
- 0x1F,0x03, 0x1B,0x03, 0x1F,0x66, 0x20,0x03, 0x21,0x03,
- 0x20,0x03, 0x1F,0x03, 0x1B,0x03, 0x1F,0x66, 0x1F,0x03,
- 0x1B,0x03, 0x19,0x03, 0x19,0x03, 0x15,0x03, 0x1A,0x66,
- 0x1A,0x03, 0x19,0x03, 0x15,0x03, 0x15,0x03, 0x17,0x03,
- 0x16,0x66, 0x17,0x04, 0x18,0x04, 0x18,0x03, 0x19,0x03,
- 0x1F,0x03, 0x1B,0x03, 0x1F,0x66, 0x20,0x03, 0x21,0x03,
- 0x20,0x03, 0x1F,0x03, 0x1B,0x03, 0x1F,0x66, 0x1F,0x03,
- 0x1B,0x03, 0x19,0x03, 0x19,0x03, 0x15,0x03, 0x1A,0x66,
- 0x1A,0x03, 0x19,0x03, 0x19,0x03, 0x1F,0x03, 0x1B,0x03,
- 0x1F,0x00, 0x1A,0x03, 0x1A,0x03, 0x1A,0x03, 0x1B,0x03,
- 0x1B,0x03, 0x1A,0x03, 0x19,0x03, 0x19,0x02, 0x17,0x03,
- 0x15,0x17, 0x15,0x03, 0x16,0x03, 0x17,0x03, 0x18,0x03,
- 0x17,0x04, 0x18,0x0E, 0x18,0x03, 0x17,0x04, 0x18,0x0E,
- 0x18,0x66, 0x17,0x03, 0x18,0x03, 0x17,0x03, 0x18,0x03,
- 0x20,0x03, 0x20,0x02, 0x1F,0x03, 0x1B,0x03, 0x1F,0x66,
- 0x20,0x03, 0x21,0x03, 0x20,0x03, 0x1F,0x03, 0x1B,0x03,
- 0x1F,0x66, 0x1F,0x04, 0x1B,0x0E, 0x1B,0x03, 0x19,0x03,
- 0x19,0x03, 0x15,0x03, 0x1A,0x66, 0x1A,0x03, 0x19,0x03,
- 0x15,0x03, 0x15,0x03, 0x17,0x03, 0x16,0x66, 0x17,0x04,
- 0x18,0x04, 0x18,0x03, 0x19,0x03, 0x1F,0x03, 0x1B,0x03,
- 0x1F,0x66, 0x20,0x03, 0x21,0x03, 0x20,0x03, 0x1F,0x03,
- 0x1B,0x03, 0x1F,0x66, 0x1F,0x03, 0x1B,0x03, 0x19,0x03,
- 0x19,0x03, 0x15,0x03, 0x1A,0x66, 0x1A,0x03, 0x19,0x03,
- 0x19,0x03, 0x1F,0x03, 0x1B,0x03, 0x1F,0x00, 0x18,0x02,
- 0x18,0x03, 0x1A,0x03, 0x19,0x0D, 0x15,0x03, 0x15,0x02,
- 0x18,0x66, 0x16,0x02, 0x17,0x02, 0x15,0x00, 0x00,0x00};
- //同一首歌
- unsigned char code Music_Same[]={ 0x0F,0x01, 0x15,0x02, 0x16,0x02, 0x17,0x66, 0x18,0x03,
- 0x17,0x02, 0x15,0x02, 0x16,0x01, 0x15,0x02, 0x10,0x02,
- 0x15,0x00, 0x0F,0x01, 0x15,0x02, 0x16,0x02, 0x17,0x02,
- 0x17,0x03, 0x18,0x03, 0x19,0x02, 0x15,0x02, 0x18,0x66,
- 0x17,0x03, 0x19,0x02, 0x16,0x03, 0x17,0x03, 0x16,0x00,
- 0x17,0x01, 0x19,0x02, 0x1B,0x02, 0x1B,0x70, 0x1A,0x03,
- 0x1A,0x01, 0x19,0x02, 0x19,0x03, 0x1A,0x03, 0x1B,0x02,
- 0x1A,0x0D, 0x19,0x03, 0x17,0x00, 0x18,0x66, 0x18,0x03,
- 0x19,0x02, 0x1A,0x02, 0x19,0x0C, 0x18,0x0D, 0x17,0x03,
- 0x16,0x01, 0x11,0x02, 0x11,0x03, 0x10,0x03, 0x0F,0x0C,
- 0x10,0x02, 0x15,0x00, 0x1F,0x01, 0x1A,0x01, 0x18,0x66,
- 0x19,0x03, 0x1A,0x01, 0x1B,0x02, 0x1B,0x03, 0x1B,0x03,
- 0x1B,0x0C, 0x1A,0x0D, 0x19,0x03, 0x17,0x00, 0x1F,0x01,
- 0x1A,0x01, 0x18,0x66, 0x19,0x03, 0x1A,0x01, 0x10,0x02,
- 0x10,0x03, 0x10,0x03, 0x1A,0x0C, 0x18,0x0D, 0x17,0x03,
- 0x16,0x00, 0x0F,0x01, 0x15,0x02, 0x16,0x02, 0x17,0x70,
- 0x18,0x03, 0x17,0x02, 0x15,0x03, 0x15,0x03, 0x16,0x66,
- 0x16,0x03, 0x16,0x02, 0x16,0x03, 0x15,0x03, 0x10,0x02,
- 0x10,0x01, 0x11,0x01, 0x11,0x66, 0x10,0x03, 0x0F,0x0C,
- 0x1A,0x02, 0x19,0x02, 0x16,0x03, 0x16,0x03, 0x18,0x66,
- 0x18,0x03, 0x18,0x02, 0x17,0x03, 0x16,0x03, 0x19,0x00,
- 0x00,0x00 };
- //兩只蝴蝶
- unsigned char code Music_Two[] ={ 0x17,0x03, 0x16,0x03, 0x17,0x01, 0x16,0x03, 0x17,0x03,
- 0x16,0x03, 0x15,0x01, 0x10,0x03, 0x15,0x03, 0x16,0x02,
- 0x16,0x0D, 0x17,0x03, 0x16,0x03, 0x15,0x03, 0x10,0x03,
- 0x10,0x0E, 0x15,0x04, 0x0F,0x01, 0x17,0x03, 0x16,0x03,
- 0x17,0x01, 0x16,0x03, 0x17,0x03, 0x16,0x03, 0x15,0x01,
- 0x10,0x03, 0x15,0x03, 0x16,0x02, 0x16,0x0D, 0x17,0x03,
- 0x16,0x03, 0x15,0x03, 0x10,0x03, 0x15,0x03, 0x16,0x01,
- 0x17,0x03, 0x16,0x03, 0x17,0x01, 0x16,0x03, 0x17,0x03,
- 0x16,0x03, 0x15,0x01, 0x10,0x03, 0x15,0x03, 0x16,0x02,
- 0x16,0x0D, 0x17,0x03, 0x16,0x03, 0x15,0x03, 0x10,0x03,
- 0x10,0x0E, 0x15,0x04, 0x0F,0x01, 0x17,0x03, 0x19,0x03,
- 0x19,0x01, 0x19,0x03, 0x1A,0x03, 0x19,0x03, 0x17,0x01,
- 0x16,0x03, 0x16,0x03, 0x16,0x02, 0x16,0x0D, 0x17,0x03,
- 0x16,0x03, 0x15,0x03, 0x10,0x03, 0x10,0x0D, 0x15,0x00,
- 0x19,0x03, 0x19,0x03, 0x1A,0x03, 0x1F,0x03, 0x1B,0x03,
- 0x1B,0x03, 0x1A,0x03, 0x17,0x0D, 0x16,0x03, 0x16,0x03,
- 0x16,0x0D, 0x17,0x01, 0x17,0x03, 0x17,0x03, 0x19,0x03,
- 0x1A,0x02, 0x1A,0x02, 0x10,0x03, 0x17,0x0D, 0x16,0x03,
- 0x16,0x01, 0x17,0x03, 0x19,0x03, 0x19,0x03, 0x17,0x03,
- 0x19,0x02, 0x1F,0x02, 0x1B,0x03, 0x1A,0x03, 0x1A,0x0E,
- 0x1B,0x04, 0x17,0x02, 0x1A,0x03, 0x1A,0x03, 0x1A,0x0E,
- 0x1B,0x04, 0x1A,0x03, 0x19,0x03, 0x17,0x03, 0x16,0x03,
- 0x17,0x0D, 0x16,0x03, 0x17,0x03, 0x19,0x01, 0x19,0x03,
- 0x19,0x03, 0x1A,0x03, 0x1F,0x03, 0x1B,0x03, 0x1B,0x03,
- 0x1A,0x03, 0x17,0x0D, 0x16,0x03, 0x16,0x03, 0x16,0x03,
- 0x17,0x01, 0x17,0x03, 0x17,0x03, 0x19,0x03, 0x1A,0x02,
- 0x1A,0x02, 0x10,0x03, 0x17,0x0D, 0x16,0x03, 0x16,0x01,
- 0x17,0x03, 0x19,0x03, 0x19,0x03, 0x17,0x03, 0x19,0x03,
- 0x1F,0x02, 0x1B,0x03, 0x1A,0x03, 0x1A,0x0E, 0x1B,0x04,
- 0x17,0x02, 0x1A,0x03, 0x1A,0x03, 0x1A,0x0E, 0x1B,0x04,
- 0x17,0x16, 0x1A,0x03, 0x1A,0x03, 0x1A,0x0E, 0x1B,0x04,
- 0x1A,0x03, 0x19,0x03, 0x17,0x03, 0x16,0x03, 0x0F,0x02,
- 0x10,0x03, 0x15,0x00, 0x00,0x00 };
- //***********************************************************************************
- unsigned char * SelectMusic(unsigned char SoundIndex)
- {
- unsigned char *MusicAddress = 0;
- switch (SoundIndex)
- {
- case 0x00:
- MusicAddress = &Music_Girl[0]; //揮著翅膀的女孩
- break;
- case 0x01:
- MusicAddress = &Music_Same[0]; //同一首歌
- break;
- ……………………
- …………限于本文篇幅 余下代碼請從51黑下載附件…………
復制代碼

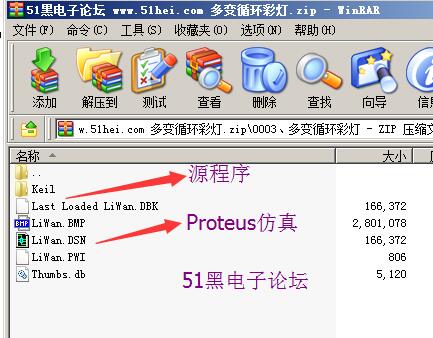

所有資料51hei提供下載:
多變循環彩燈.zip
(345.74 KB, 下載次數: 36)
2018-4-16 21:06 上傳
點擊文件名下載附件
下載積分: 黑幣 -5
|
